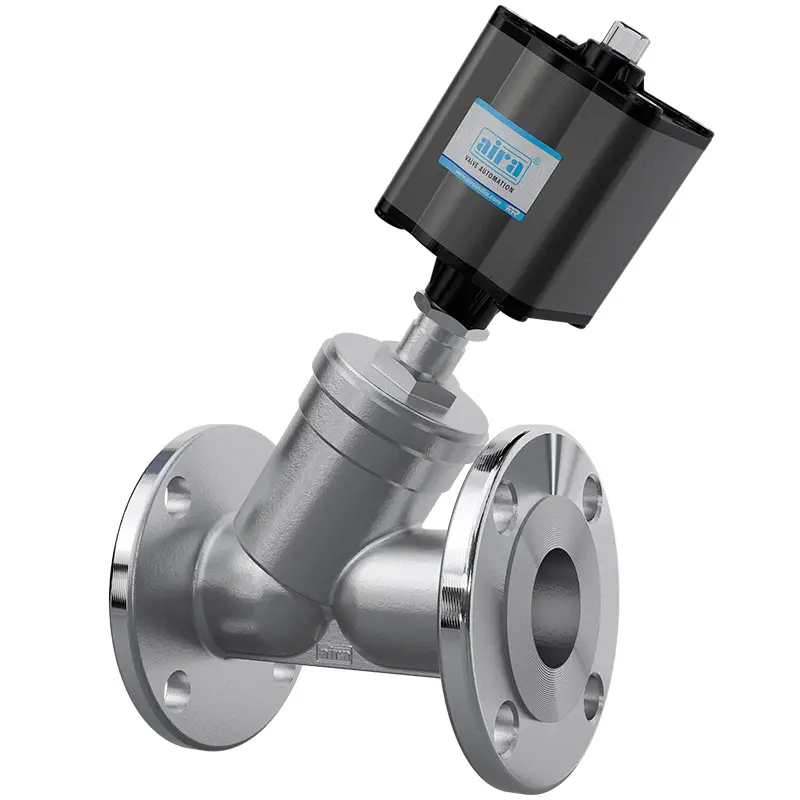

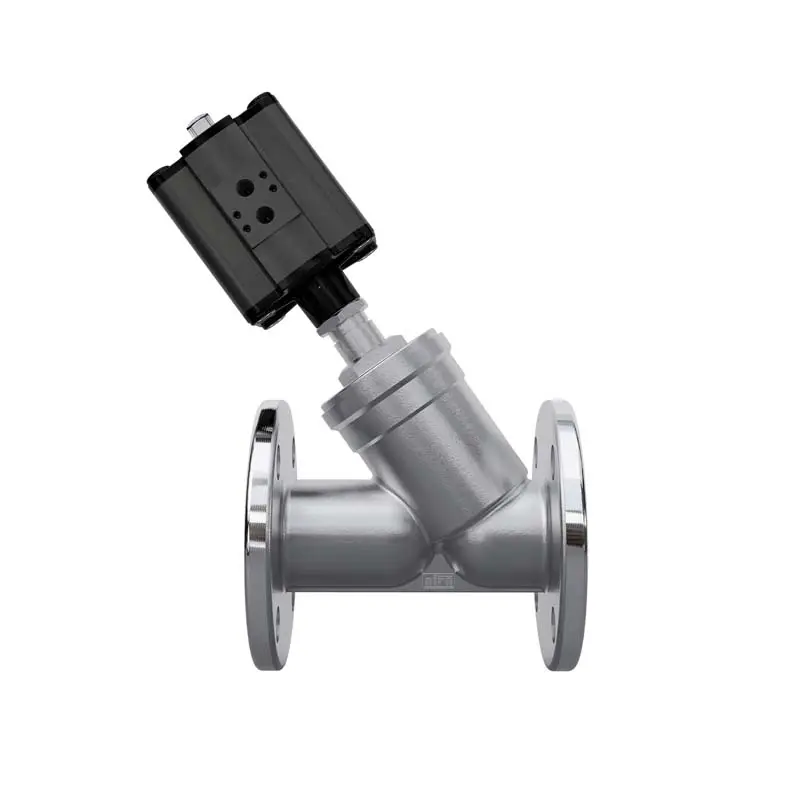

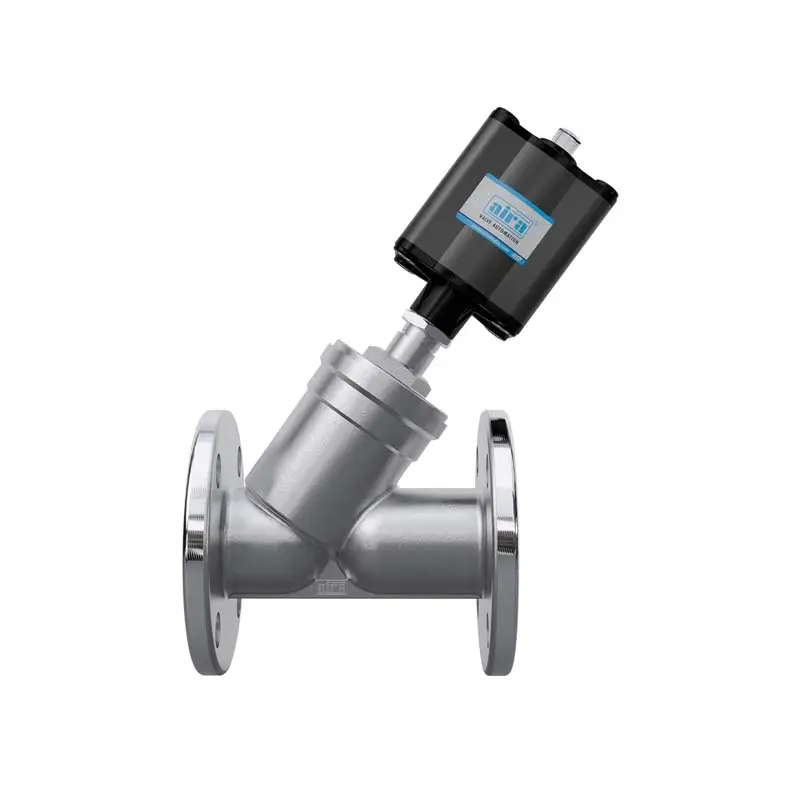

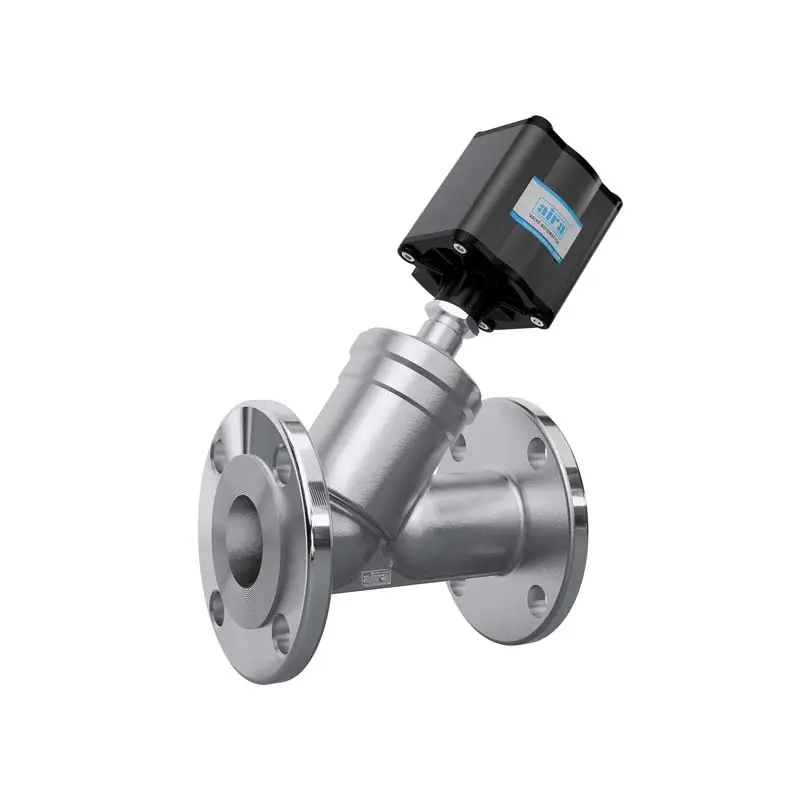

“aira” Offers 2/2 Way Pneumatic Actuator Operated Investment Casting Angle Type Controls Valve. It has two working types, Double Acting & Single Acting.
Specification & Standard
| Specification | Details |
|---|---|
| Size Range | 15MM To 80MM |
| Temperature Range | PTFE 180°C / CFT 220°C |
| Pressure Class | Up to 10 BAR |
| Shutoff Rating | Tight Shut Off |
| Body Style | Y – Body – Screw End, Flange End, Triclover End |
| Flange Drilling | 150# |
| Certification | CE Approved |
| Body Materials | S.S – 304, S.S – 316-L |
| Stem Materials | S.S – 304 |
| Seat Materials | PTFE, CFT, GFT |
| Plug Materials | S.S – 304 |
| Design Standard | Manufacture – Standard |
| Testing Standard | API – S98, PN10 |
| Face To Face | Manufacture – Standard |
| Leakage | As Per ANSI B16, 16.104 Leakage Class VI Shut Off Tight / Bubble Tight |
| Applications | Air / Water / Oil / Gas / Steam & Chemical |
