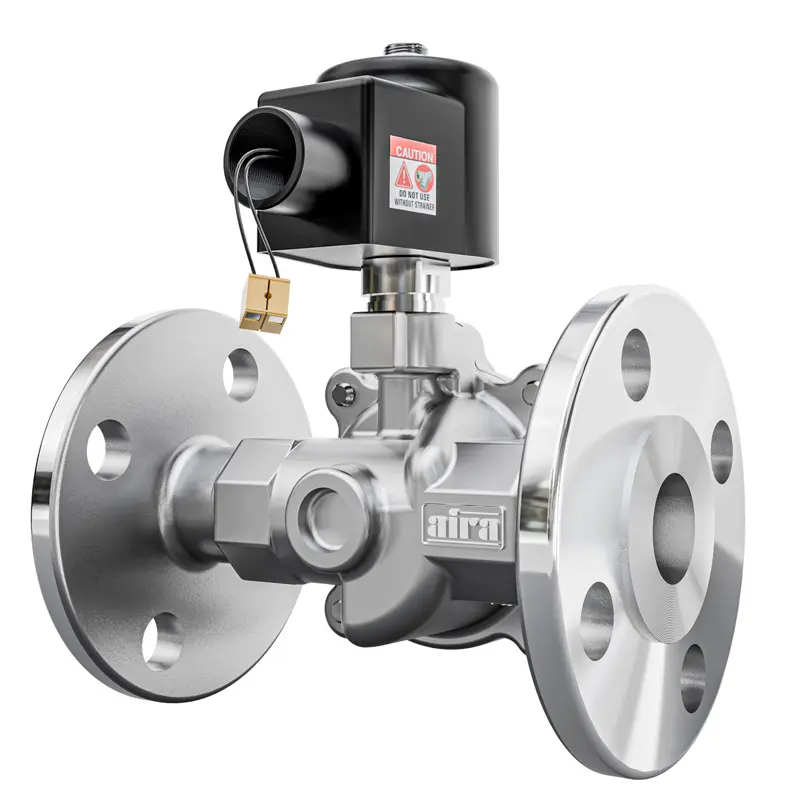

2-2 Way Piston Steam & High Temperature Pilot Flanged Solenoid Valve

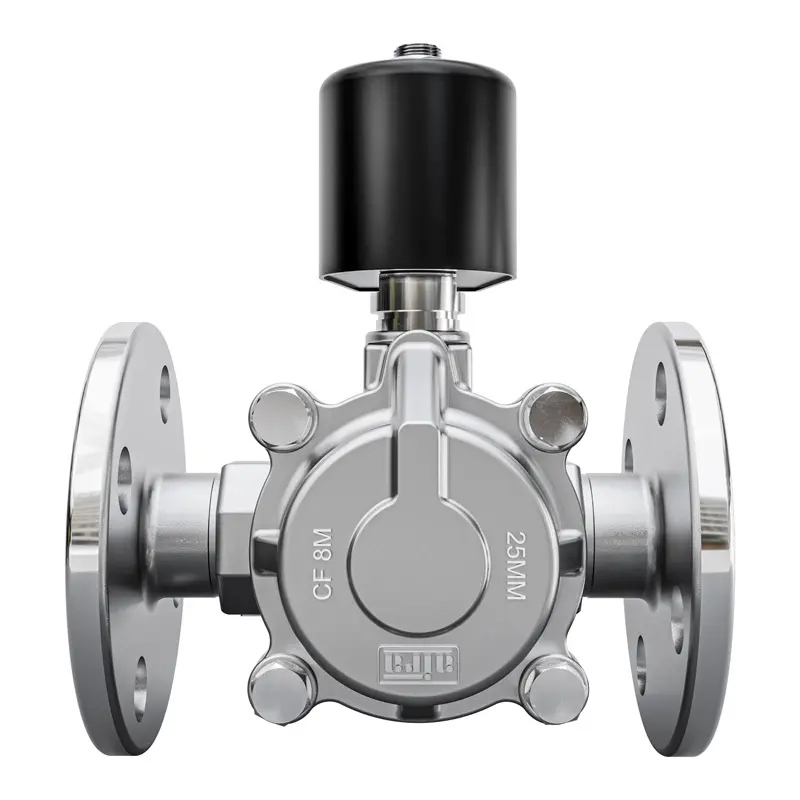

2-2 Way Piston Steam & High Temperature Pilot Flanged Solenoid Valve - Image 2

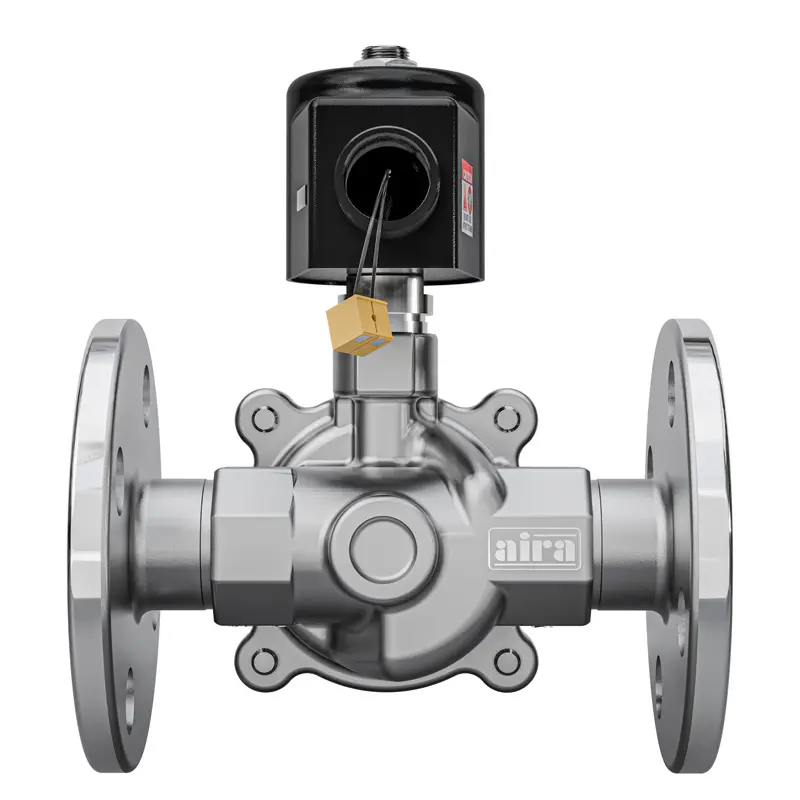

2-2 Way Piston Steam & High Temperature Pilot Flanged Solenoid Valve - Image 3

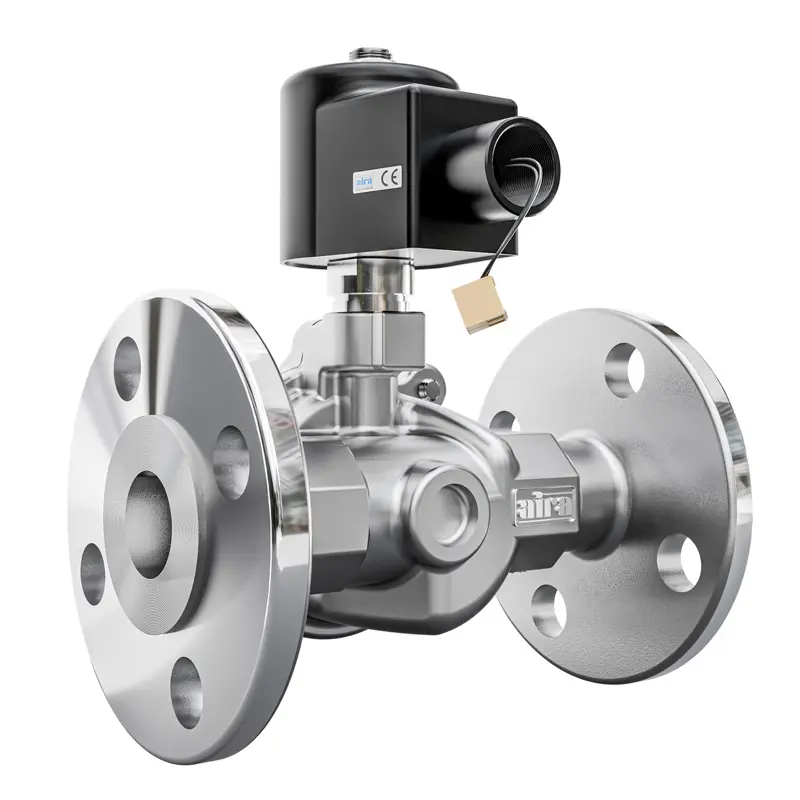

2-2 Way Piston Steam & High Temperature Pilot Flanged Solenoid Valve - Image 4
,

2-2 Way Piston Steam & High Temperature Pilot Flanged Solenoid Valve

We are a leading 2/2 way High Temperature Solenoid Valve Manufacturer, exporter & supplier. We have a wide range of solenoid valves with multiple features & specs.

Specification Details
Size Range 1/4″ To 4″ Flanged 150#
Temperature Range Up to 180°C
Working Pressure 2 To 12 Kg

“aira” Offers HIGH FLOW piston type solenoid valves, are specially engineered in the construction of Investment Cast CF8 / CF8M / CF3M body for multiple and long lasting operations, especially in STEAM & HIGH Temperature FLUIDS. Valves for the inflammable media / environment / Flameproof / Explosion Proof solenoid coil are available in such application.

Specification & Standard

Specification Details
Size Range 1/4″ to 4″ Flanged
Temperature Range Up to 180°C
Pressure Class 0 to 5 Bar
End Connection Flanged 150#
Certification CE
Media Hot Water, DRX Steam, Avoid Back Pressure Installation Of Filter Inlet Side
Body Material CF8, CF3M, CF8M
Seat Material PTFE, Viton
Flange Drilling As Per 150#
Categories: ,

Features & Benefits

1 – 2/2 Way Design: Manages fluid flow with a two-port configuration for effective on/off control.

2 – Normally Closed/Normally Open: Available in both NC and NO options to meet various application needs.

3 – Flanged Connections: Robust flanged fittings ensure secure and stable installation, suitable for high-pressure environments.

4 – Durable Construction: Made from high-quality materials like stainless steel or brass for long-term reliability and resistance to corrosion.

5 – Automation Ready: Electrically actuated for precise and reliable control in automated systems.

6 – Versatile Fluid Compatibility: Handles a wide range of fluids, including air, water, and chemicals.

7 – Low Maintenance: Designed for minimal upkeep, reducing maintenance needs and operational costs.

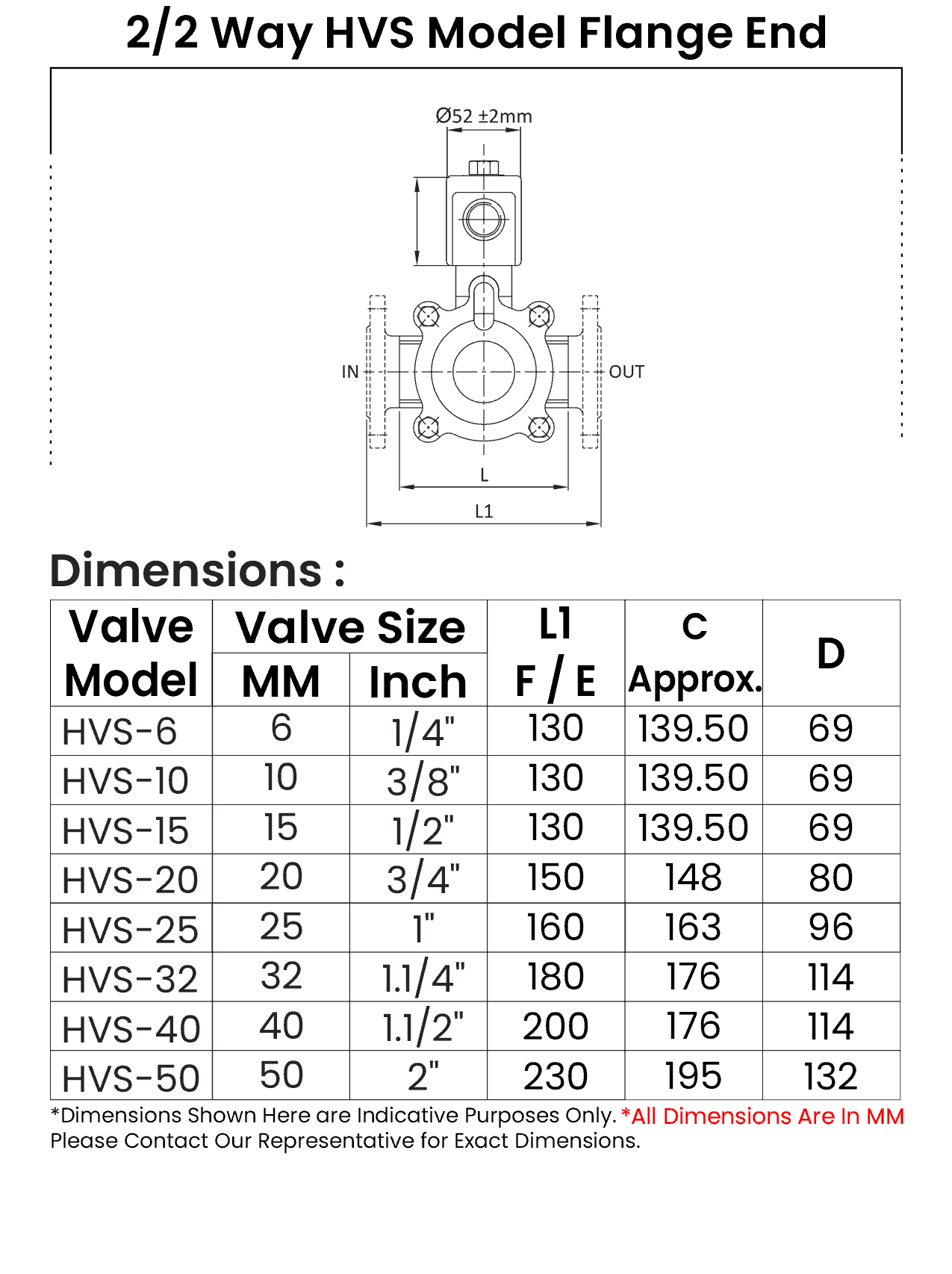

Dimension Table

Size Range

1/4" To 4" Flanged 150#
Temperature Range

Upto 180°C
Working Pressure

2 To 12 Kg
