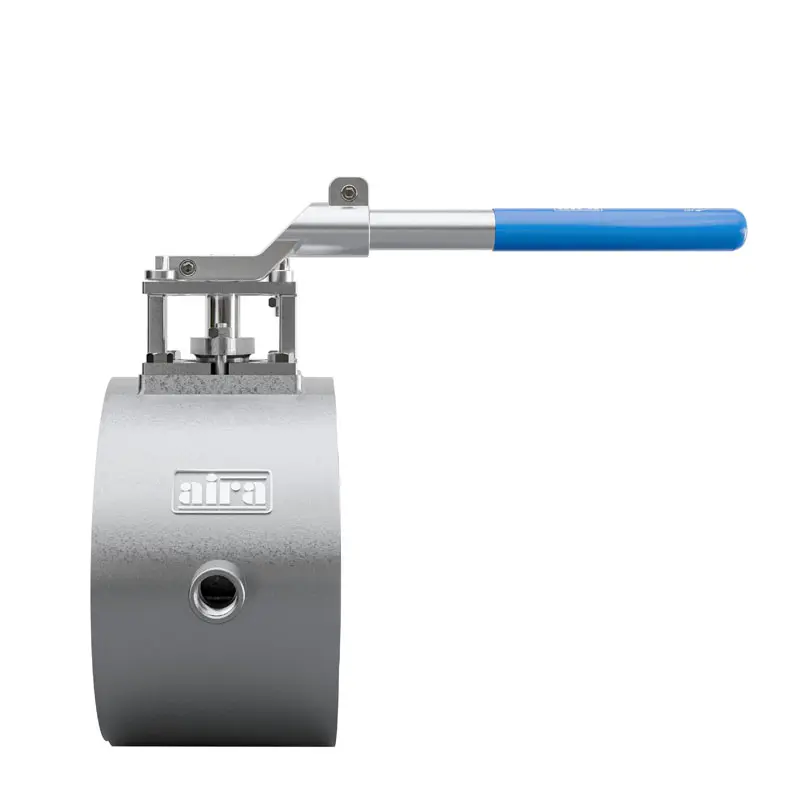

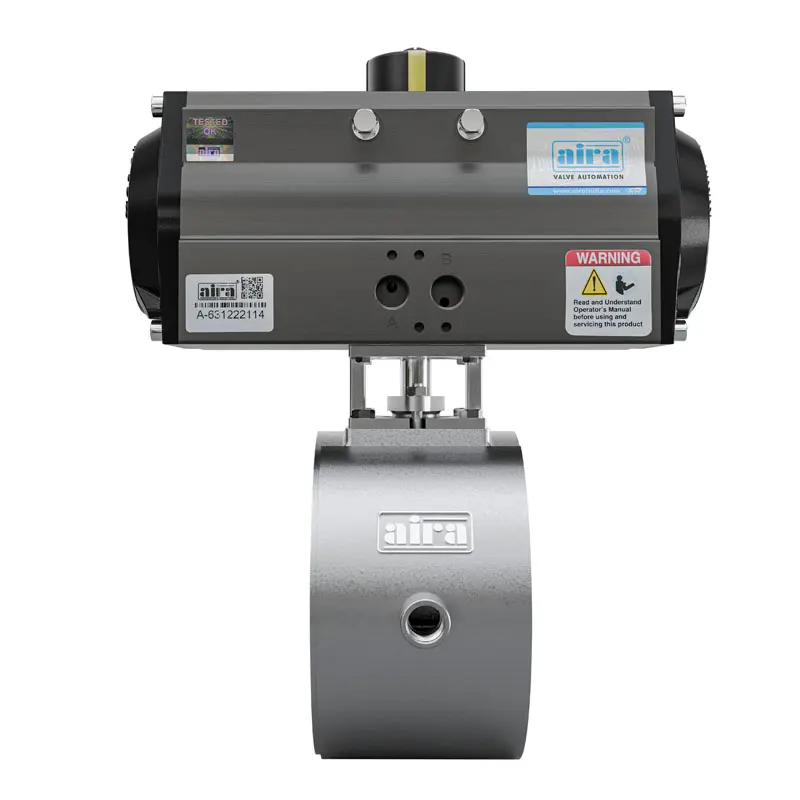

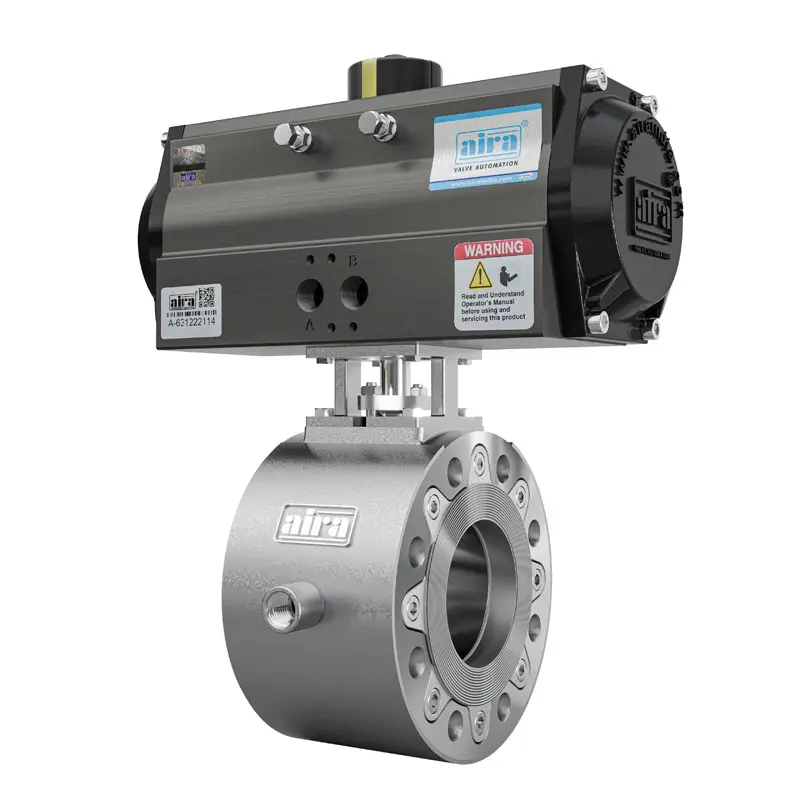

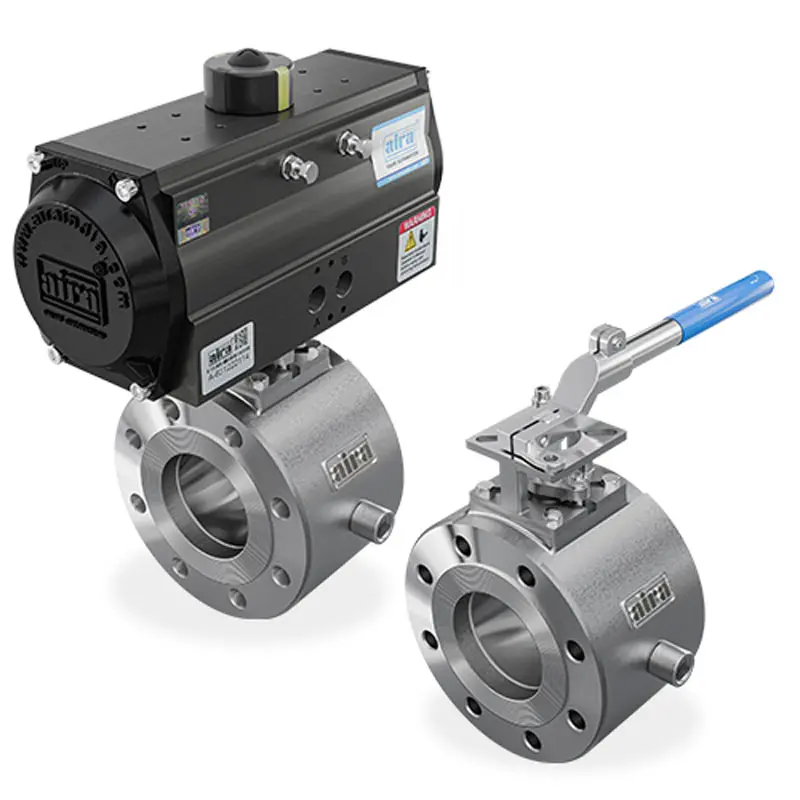

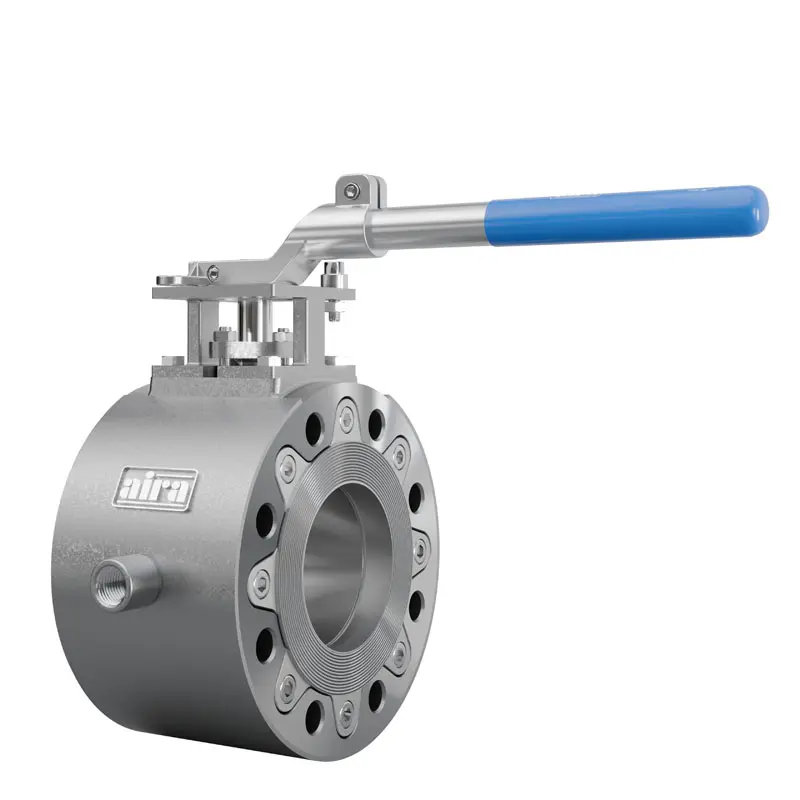

“aira” Offers Manual & Automation Operated Investment Casting WCB / CF8 / CF8M / CF3M Wafer Type Floating Ball Valve. Wafer Type Ball Valve Application Chemical Product. Food Plants, Distribution Line For Gas, Air, Water.
Specification & Standard
| Specification | Details |
|---|---|
| Design & Manufacturer | ASME B 16.34 / BS EN ISO 17292 |
| Valve Face To Face Dimension | As Per Manufacturer Std. |
| Inspection & Testing | API 598 / ISO-5208 / BS EN 12266-1 |
| Leakage Class | ISO 5208 CLASS VI / ANSI FCI 70-2 B16.104 |
| Flange Standard Conformity | ASME B 16.5 150# |
| Ball Material | CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M |
| Ball Type | Solid |
| Size Range | 1″ To 4″ Wafer Type Jacketed |
| Temperature Range | PTFE: Up to 180°C / RPTFE: Up to 220°C / CFT & GFT: 200°C |
| Pressure Class | 150# |
| Media | Air / Water / Oil & Gas |
| Body Material | S.G IRON (SGI), WCB, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONEL |
| Stem Material | AISI 410, SS 304, SS 316, SS 304L, SS 316L, DUPLEX 2205, DUPLEX 2507, MONEL |
| Seat Material | PTFE, RPTFE, CFT, GFT, MODIFIED PTFE, AIRA-250, NYLON, DEVLON, PEEK |
