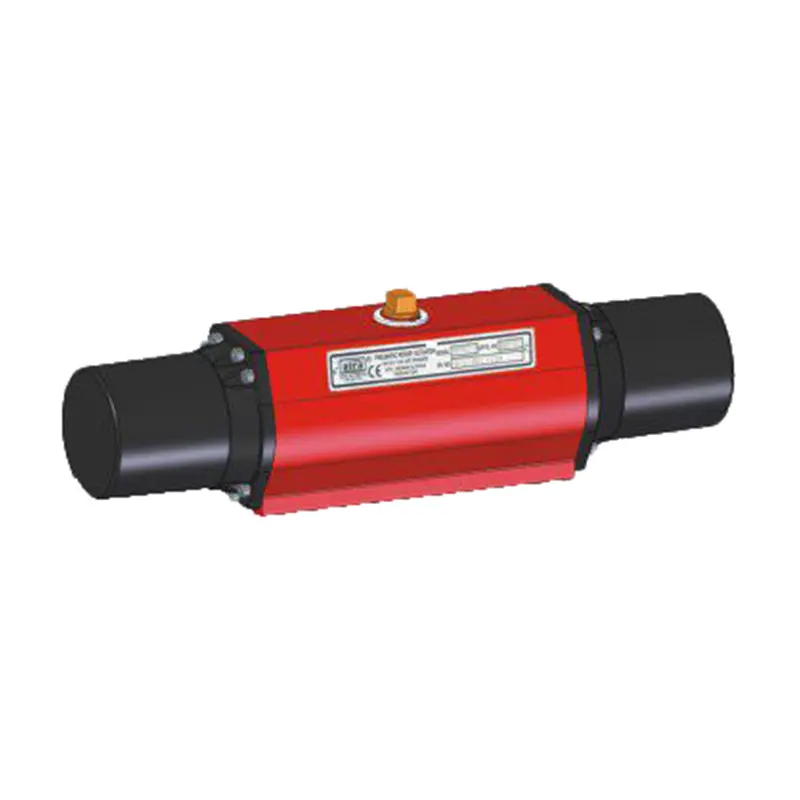

Single Acting Scotch Yoke Aluminium Actuator
,

Single Acting Scotch Yoke Aluminium Actuator

Aira Euro Automation is a leading Aluminum Scotch & Yoke Pneumatic Rotary Actuator manufacturer in India. We use only high graded quality raw materials for making our products.


Specification Details
Temperature Range -20°C To 90°C
Working Pressure 35 To 150 PSI

“Aira” Offers The SYS Series has been equipped with a universal drive shaft which suit both DIN and ISO Standards. This even future facilitates mounting and installation. Low friction sealings in combination with a high surface finish, permanent lubrication, and bearings give the actuator high efficiency, low air consumption, and a long maintenance–free life, This ensures a long–term stable economy due to low energy consumption and a minimum of unplanned and costly production shutdowns. Aggressive environments and complicated applications sometimes require specially adapted solutions.

Actuator Specifications & Standards

Specification Details
Temperature Range -20°C To 90°C
Pressure Class 35 To 150 PSI
Body Material Aluminium Alloy – 6061-T6
Seals Material Nitrille
Bolts Material Stainless Steel
Air Supply Filtered, Dry or Lubricated



Categories: ,

Features & Benefits

1. For On-Off and Modulating.

2. Compact design.

3. Connections according to international standards.

4. Double acting or single acting with spring return.

5. The Scotch Yoke principle gives high torque in the end positions.

6. 30% pre-tensioned springs to storage power for safety.

7. Mounting kits for all types of quarter-turn valves.

8. Housing in anodized aluminum.

9. Precise control, smooth travel in the end positions

10. Housing in anodized aluminum.

11. Precise control, and smooth travel in the end positions.

12. High reliability, long life.

13. High efficiency, and low air consumption.

14. Temperature range -20°C to +90°C.

15. 5,00,000 Cycles POD.

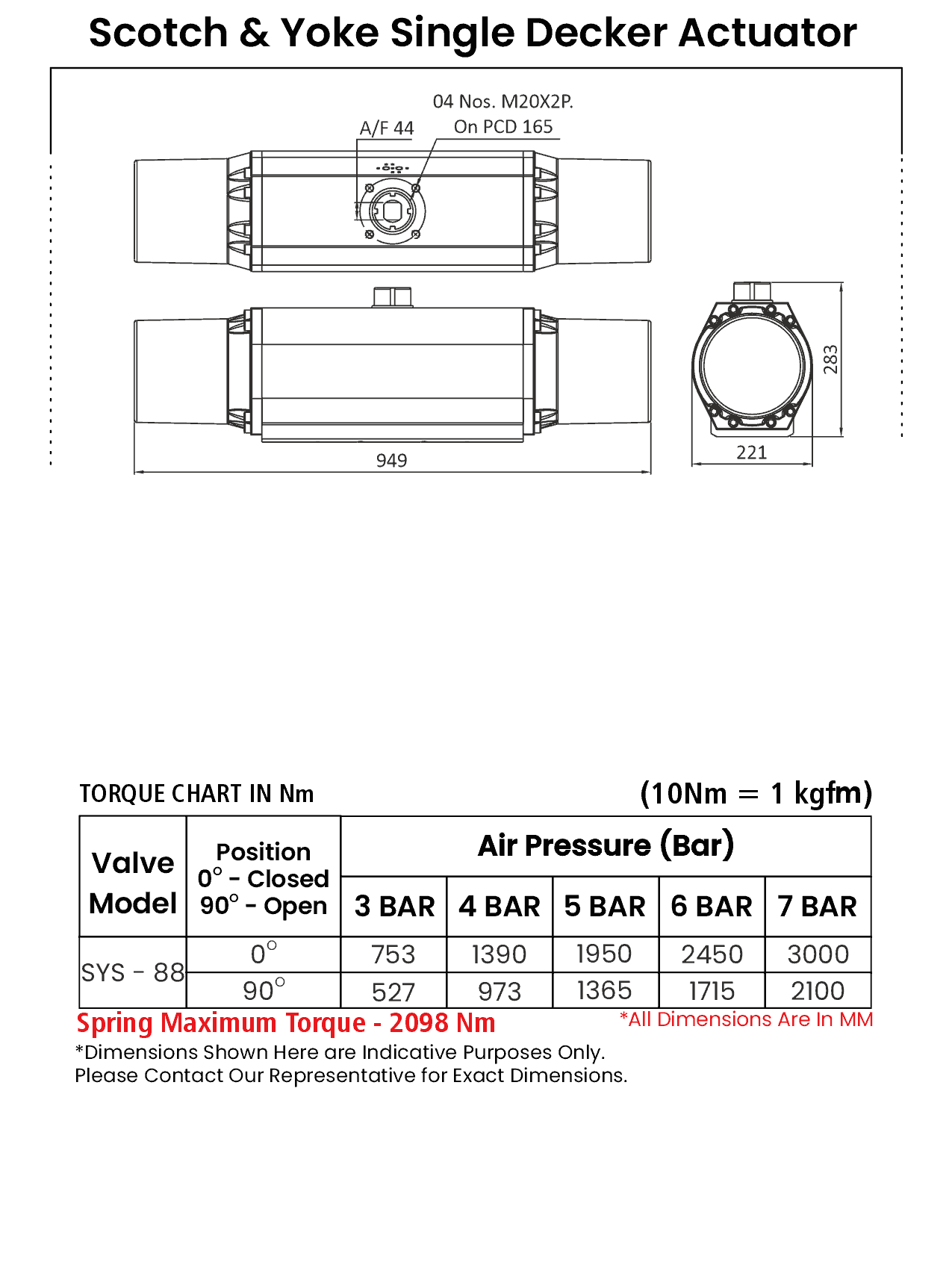

Dimension Table

Temperature Range

-20°C To 90°C
Working Pressure

35 To 150 PSI
