Single Acting Pneumatic Diaphragm Valve
,

Single Acting Pneumatic Diaphragm Valve

We are a leading manufacturer and supplier of Single Acting Pneumatic Diaphragm Valves in India, offering high-quality valves for various industrial applications.

Specification Details
Size Range 1/2″ To 4″
Temperature Range Up to 80°C
Working Pressure Up to 5 Kg/Cm²

“aira” Offers diaphragm valve are primarily used in sterile applications in the pharmaceutical, food & biotechnology industries.

Specification & Standard

Specification Details
Size Range 1/2″ To 4″
Temperature Range Upto 80°C
Pressure Class Upto 5 Kg/Cm²
End Connection TC End
Seals Material Rubber / Teflon
Categories: ,

Features & Benefits

1 – Single Acting: Provides either opening or closing function for precise control.

2 – Diaphragm Mechanism: Utilizes a diaphragm for smooth and reliable operation.

3 – Pneumatic Operation: Controlled by compressed air for efficient performance.

4 – Durable Construction: Made from high-quality materials for long-lasting use.

5 – Compact Design: Space-efficient and easy to install in various systems.

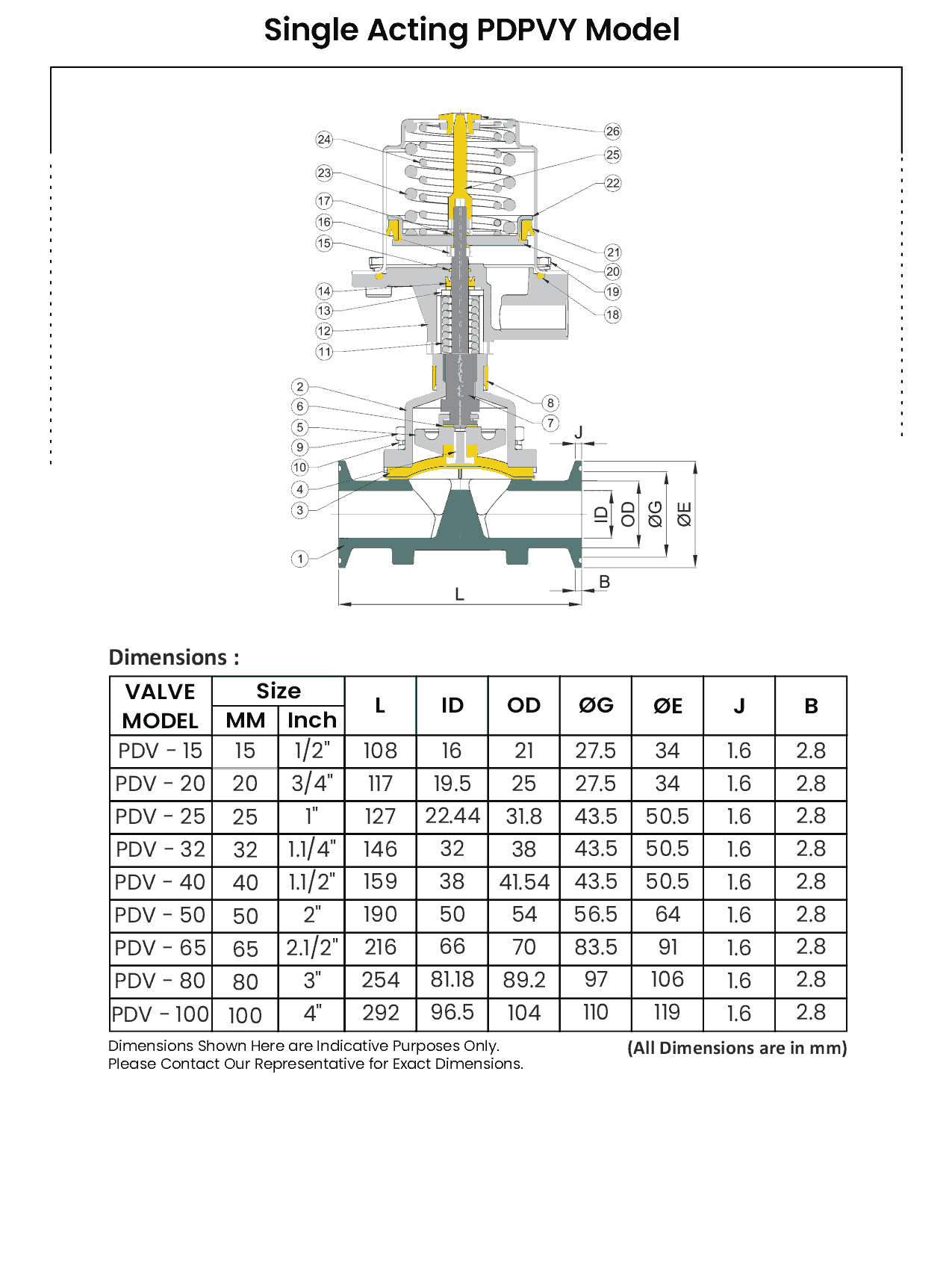

Dimension Table

Size Range

1/2" To 4"
Temperature Range

Upto 80°C
Working Pressure

Upto 5 Kg/Cm²
