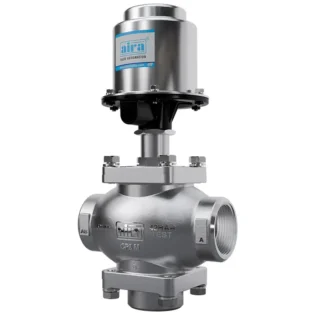

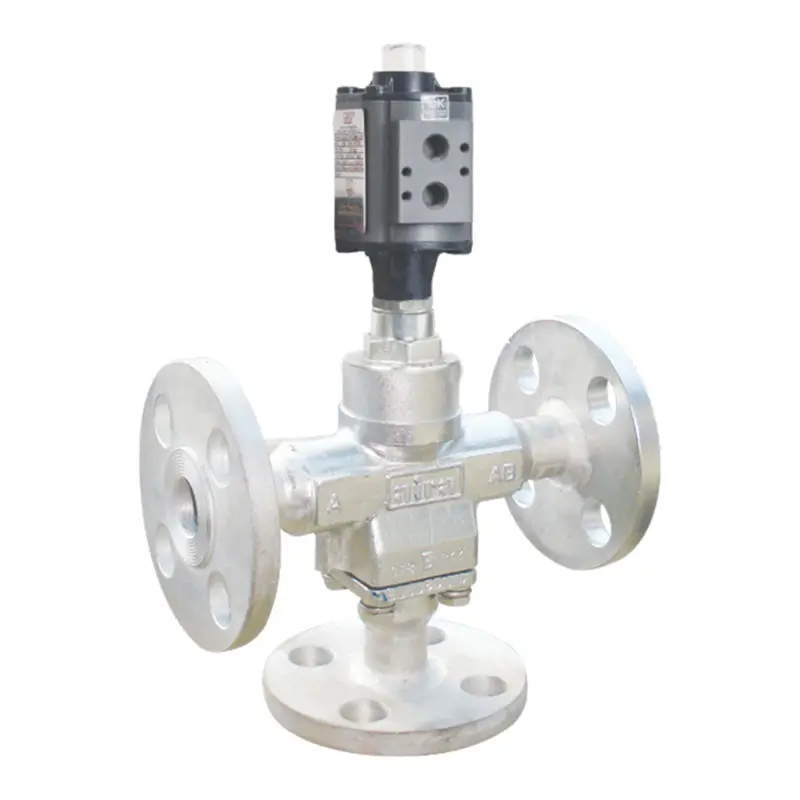

“aira” Offers ON/OFF Valve in compact Design for mixing and or diverting three way application.

Specification	Details
Size Range	15MM To 65MM
Temperature Range	PTFE 180°C / CFT 220°C
Pressure Class	4.5 BAR to 7 BAR
Shutoff Rating	Tight Shutoff
Body Style	Y – Body – Screw End, Flange End, Triclover End
Flange Drilling	150#
Certification	CE Approved
Body Materials	S. S – 304, S. S – 316-L
Stem Materials	S. S – 304
Seat Materials	PTFE, CFT, GFT
Plug Materials	S. S – 304
Design Standard	Manufacture – Standard
Testing Standard	API – S98, PN10
Face To Face	Manufacture – Standard
Leakage	As Per ANSI B 16.104 – 1976 Teflon Seating Class IV For Other Soft Seating Class VI Drop Tight / Bubble Tight
Applications	Steam, Oil, Air, Water, Gas

Features & Benefits

1 – Type Mixing & Diverting Valve.

2 – Designed For Medium-Pressure Applications To Mix Or Divert Fluids With Precision.

3 – Allows For Controlled Mixing Of Different Fluid Streams Or Diversion Of Flow In Various Directions.

4 – Robust Design Suitable For Medium-Pressure Environments, Ensuring Durability And Reliability.

5 – Provides Accurate Flow Regulation, Improving Process Efficiency And Control.

6 – Constructed From High-Quality Materials To Withstand Medium Pressure And Ensure Long-Term Performance.

7 – Ideal For Industrial Processes Where Mixing Or Diverting Fluids Is Necessary.

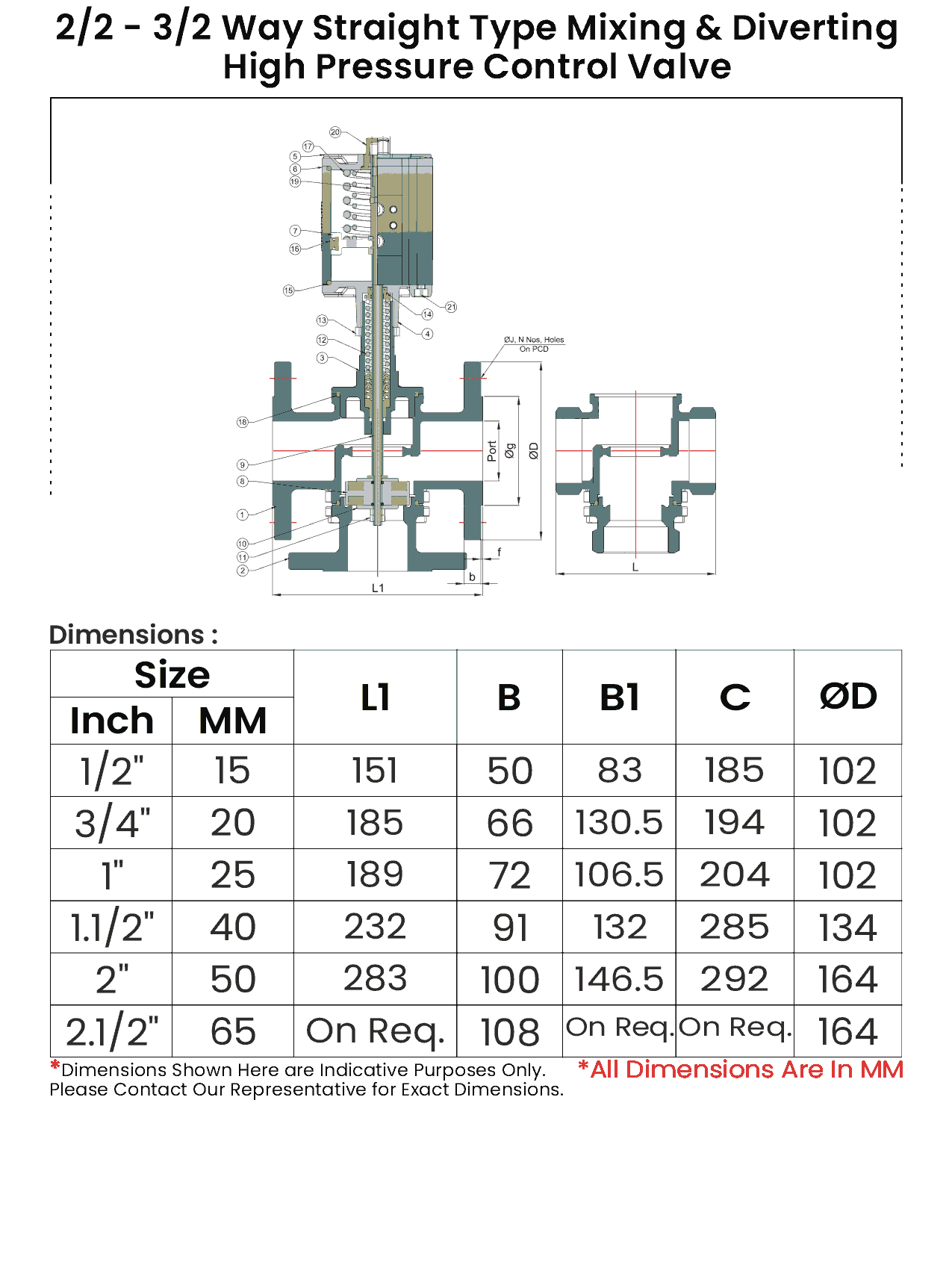

Dimension Table
