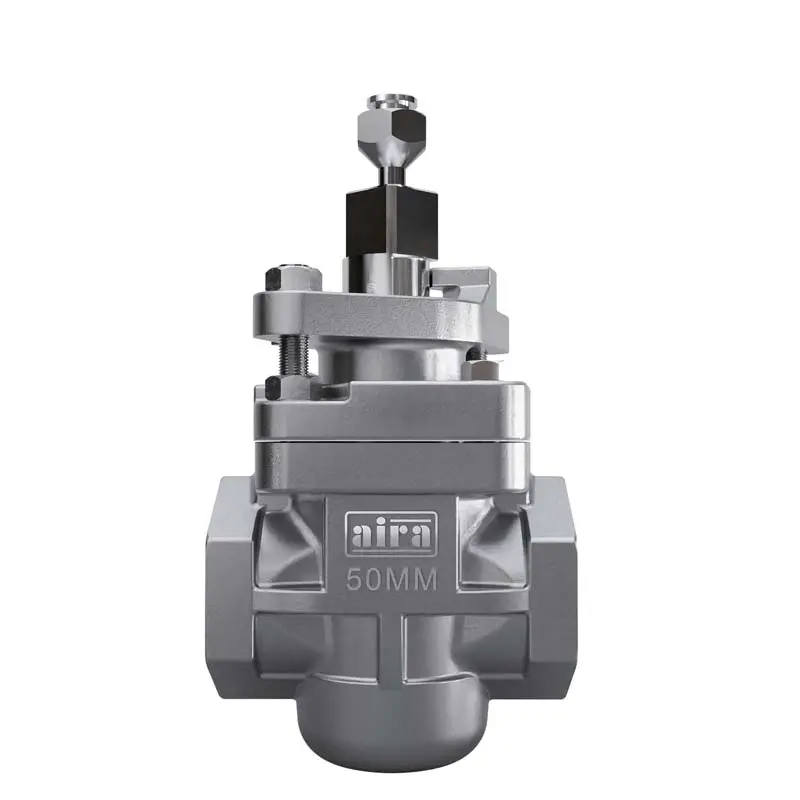

Metal To Metal Lubricated Screwed End Plug Valve

Your trusted source for high-quality Metal-to-Metal Plug Valves. As a leading manufacturer & supplier in India, we provide top-notch solutions.

Specification Details
Size Range 25 MM TO 100 MM
Temperature Range High Up To 350°C
Working Pressure 3 To 4 BAR

“aira” Plug Valves Are Designed To Offer Superior Performance In Various Industrial Applications Design Inherent Reduction In Pressure Drop Leads To Higher Efficiency And Better Flow Rates Long Service Life,Unmatched Sealing Capacity And Ease Of Maintenance Thanks To Ingenious Design Make The aira Plug Valves A Preferred Choice In Severe Service Conditions

Specification & Standard

Specification Details
Design & Manufacturer API 599 / BS 5353
Valve Face To Face Dimension AS PER 125#
Inspection & Testing API 598 / EN 12266-1
Leakage Class Class VI ISO – 5208
End Connection Screw End
Flange Drilling AS Per 125#
Plug Material CF8, CF8M, Stem & Combined
Certification IBR Approved, ISO Approved, FIRE SAFE Approved
Size Range 25 MM TO 100 MM
Temperature Range High Temperature Up To 350°C
Pressure Class 3 To 4 Bar
Body Material DI, WCB, CF8, CI, CF8M, CF3, CF3M
Stem Material DI, WCB, CF8 – Steam & Plug Combined
Seat Material Metal to Metal
Media Air, Water, Oil, Gas, Nitrogen & Chemical
Categories: ,
Size Range

25 MM TO 100 MM
Temperature Range

High To Up To 350°C
Working Pressure

3 To 4 BAR

Features & Benefits

1- Easy Operation 0° – 90°

2- Compact And Robust Body Design (One – Piece Cast Body)

3- PTFE – Sleeve Entirely Retained By 360° Lips Around The Ports

4- Secondary Seal At The Cover – Also In FIRE SAFE – Design Available (On Request)

5- PTFE – Sleeve Acts As Primary Seal In The Waterway And To Atmosphere

6- Conical Plug Shape Grants Low Operation Torques And Vertical Adjustment Possibility

7- Low Weight

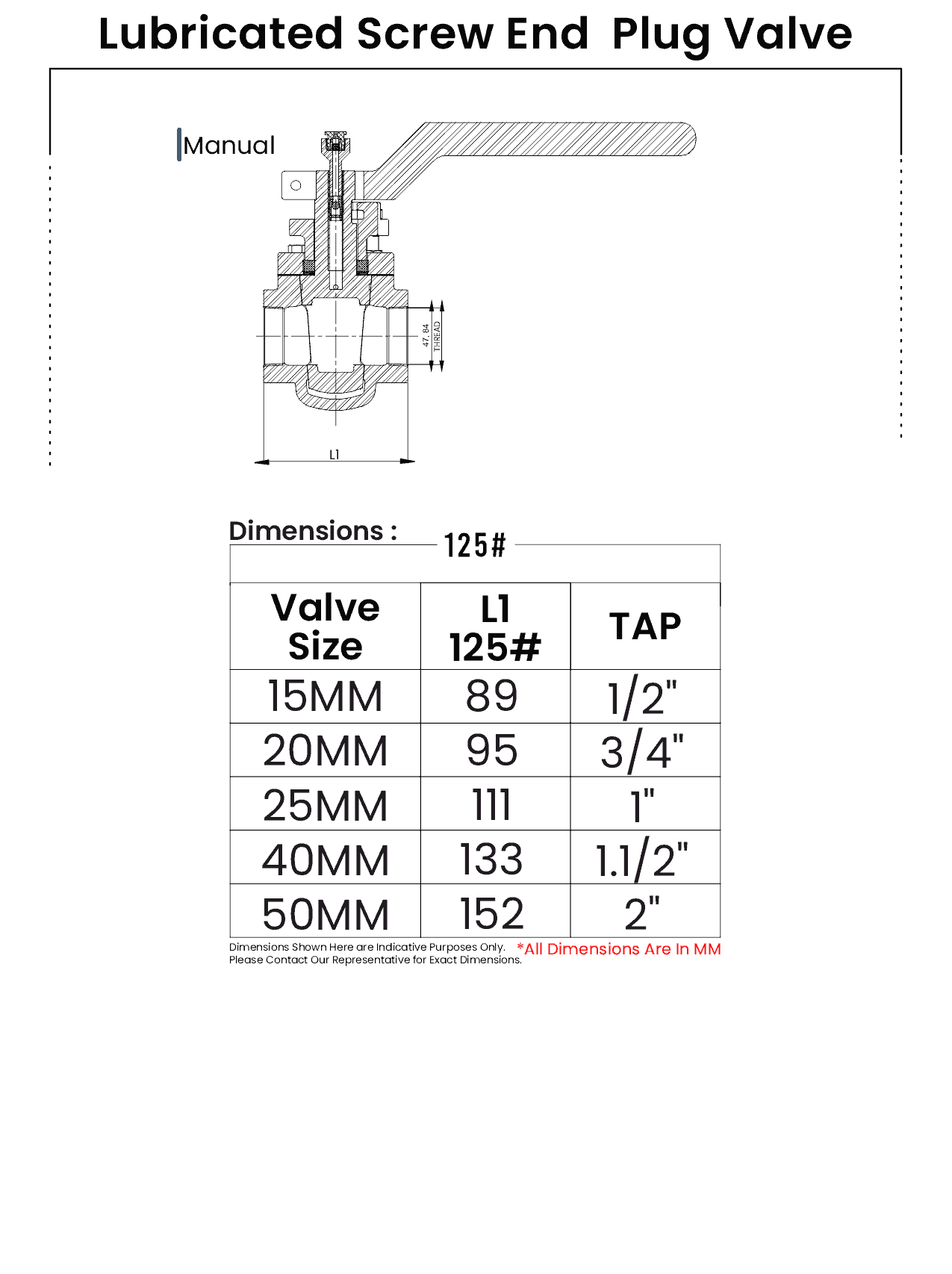

Dimension Table
