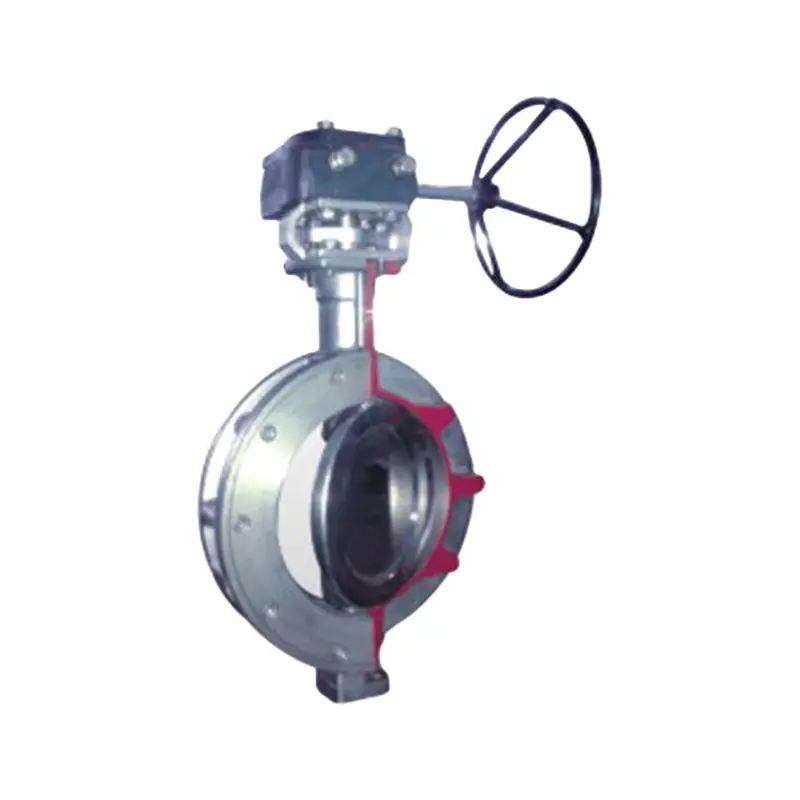

High Performance Metal Seated Spherical Disc Butterfly Valve

aira make pneumatic actuator operated metal seated spherical disc valve also export globally as per requirement and orders.

Specification	Details
Size Range	1.1/2″ To 8″
Temperature Range	-10 °C To 450 °C (Metal To Metal)
Working Pressure	8 BAR

The aira Metal Seated High Performance Butterfly Valve, or Spherical Disc Valve, combines a robust metal seating with a spherical disc design for exceptional sealing and flow control. Engineered for high-pressure and high-temperature applications, it ensures reliable performance and extended service life in demanding environments. Ideal for industries such as oil and gas, chemical processing, and power generation, the aira valve offers durability and precision with minimal maintenance.

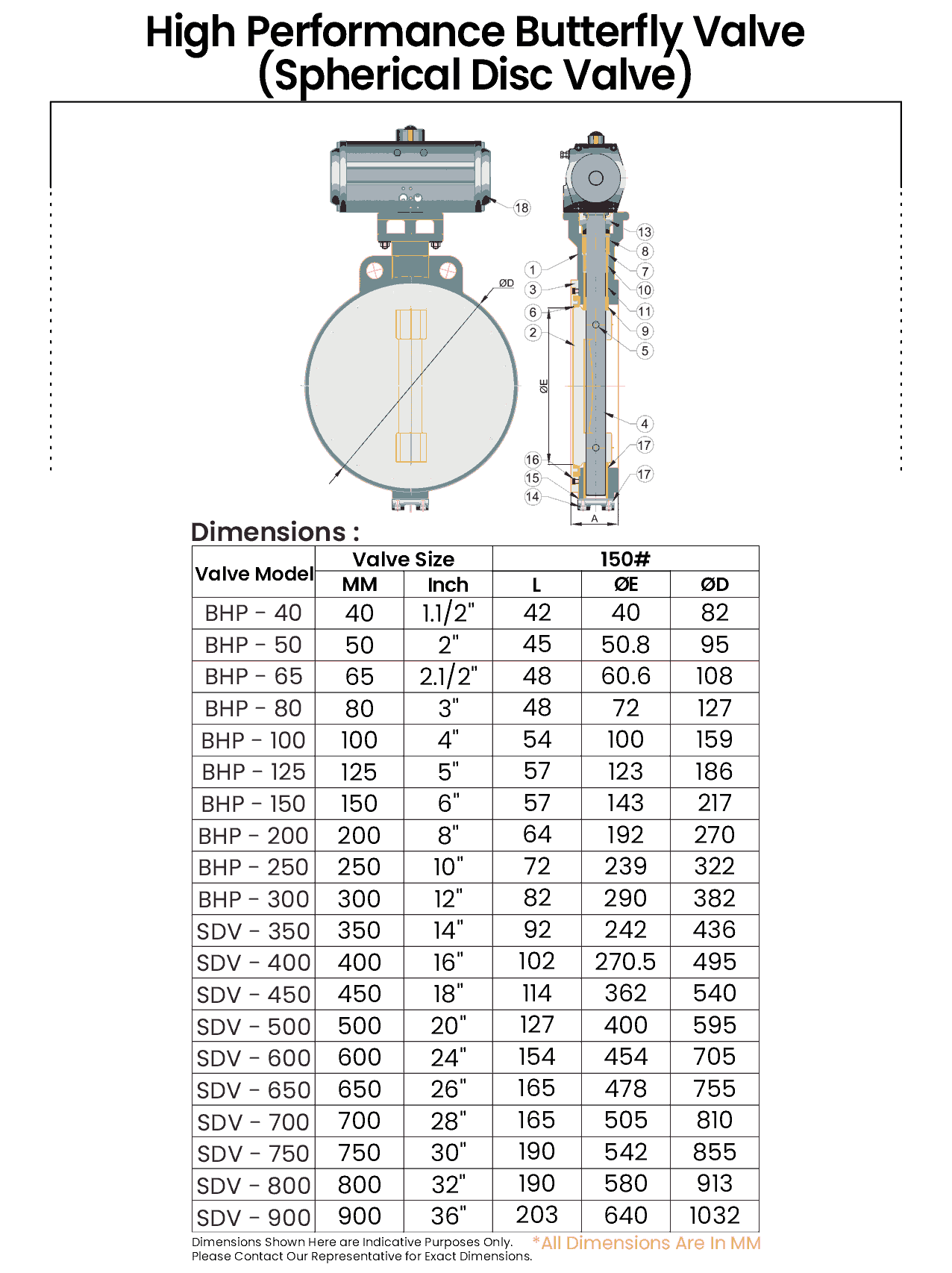

Specification & Standard

Specification	Details
Size Range	1.1/2″ To 8″
Temperature Range	-10 °C To 450 °C (Metal To Metal)
Working Pressure	8 BAR
Body	CF3M / CF8M
Design	Wafer Type Metal Seated Spherical Disc Valve
Disc	ASTM A 351 Gr. CF8 / CF8M
Seat	Metal To Metal
Seat Leakage	As per Class VI
End Connection	ASME B 16.5 Class 150 / 300
Media	Water / Oil / Steam / Air / Gas & Chemical

Categories: Butterfly Valves, High Perfomance

Features & Benefits

The aira Metal Seated High Performance Butterfly Valve with a spherical disc is designed for superior durability and control in demanding applications.

1 – Metal Seated: Provides a robust and long-lasting seating solution, suitable for high-pressure and high-temperature environments.

2 – Spherical Disc Design: Enhances flow efficiency and control by reducing turbulence and improving flow characteristics.

3 – High Performance: Engineered to deliver reliable performance under extreme conditions, with a focus on durability and efficiency.

4 – Durable Construction: Made from high-quality metals to withstand harsh environments and extended use.

5 – Versatile Applications: Ideal for industries such as chemical processing, power generation, and water treatment, where reliable and precise flow control is essential.
