“aira” Offers FEP / PFA Lined Diaphragm Valve are generally used for pressure, temperature, flow & level control of extremely Corrosive, Hazardous, pure Liquid, Vapours and Gas Media in the Chemical, Pharmaceutical and Other Industrial applications. The lining is done in – house.

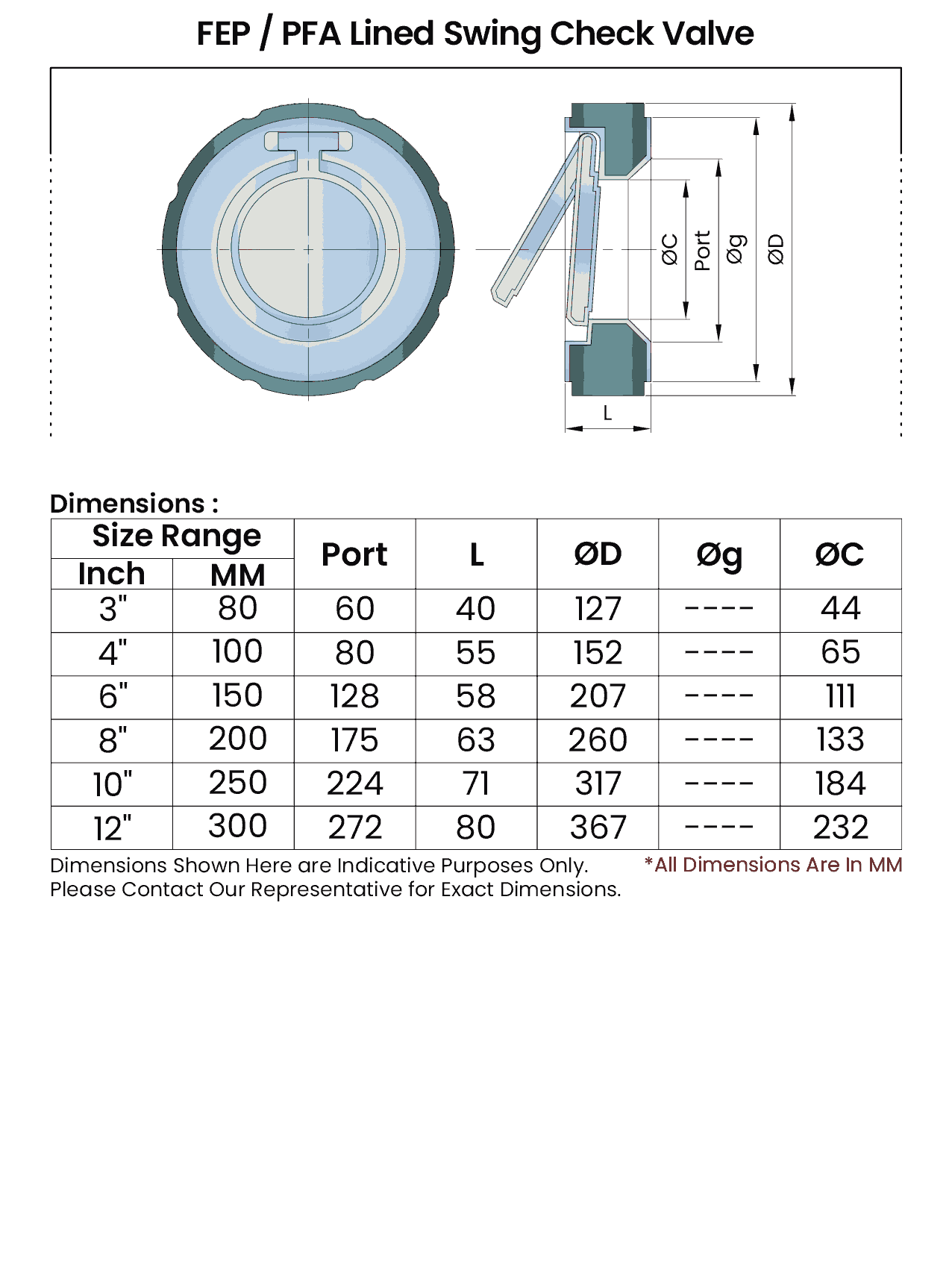

Specification & Standard

Specification	Details
Design & Manufacturer	BS 5351 Short Pattern
Valve Face To Face Dimension	ANSI B 16.5
Inspection & Testing	API 598 / ISO 9393-2 / BS EN 12266-1:2003
Valve Rating	Flanged 150#
Spark Test	15 Kv DC to 40 Kv DC
Design Standard	BSEN ISO 17292, ASME B 16.34
Shut Off Rating	VI Class
Size Range	3” To 12” (80MM To 300MM)
Temperature Range	PFA: 230°C / Working-FEP: 160°C
Pressure Class	Up to 8 Kg/Cm²
Media	Chemical
Body Material	CAST IRON (CI), DUCTILE IRON (DI), S.G IRON (SGI), WCB, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONEL
Fugitive Emissions	Yes
Leakage Class	Class VI

Categories: Lined Non Return Valves, Lined Valves

Features & Benefits

1. The valve is lined with Fluorinated Ethylene Propylene (FEP) or Perfluoroalkoxy (PFA), providing superior chemical resistance, non-stick properties, and protection against corrosion and abrasion.

2. The FEP/PFA lining offers exceptional protection against corrosive chemicals, making it ideal for aggressive media and harsh environments.

3. The corrosion-resistant lining and durable construction ensure the valve lasts longer, reducing the need for frequent replacements and maintenance.
