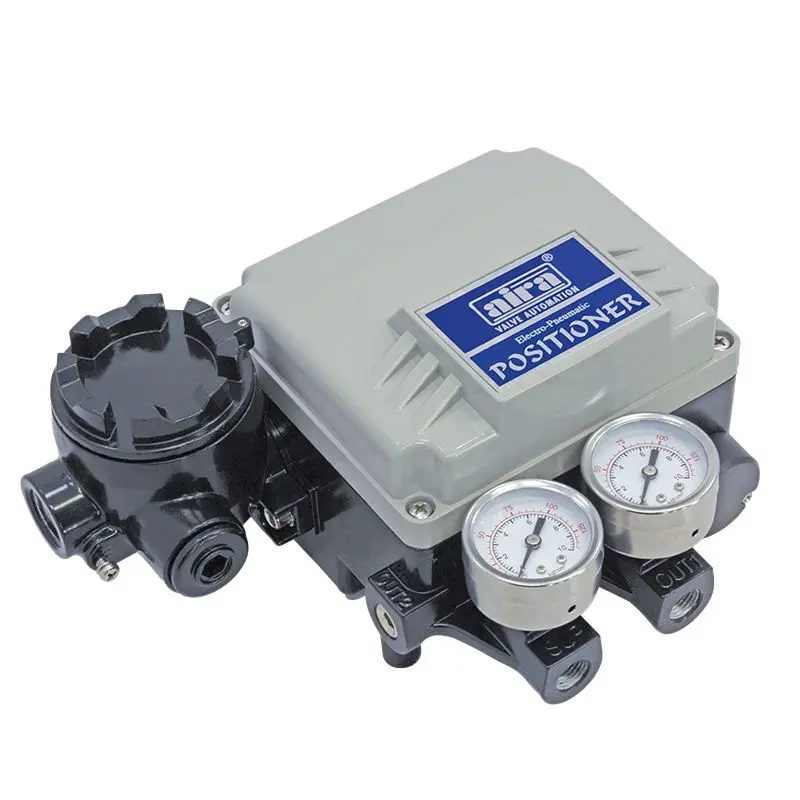

Electro Pneumatic Linear Valve Positioner
, ,

Electro Pneumatic Linear Valve Positioner

aira Euro automation also manufacturing Pneumatic Accessories such as Rotary and Linear Type Electro – Pneumatic Direct Mount Positioner in India.

Specification Details
Size Range As Per Standard
Temperature Range -20 ºC To 70 ºC
Working Pressure 100 Psi Max. (7.0 Kgf/cm²)

“aira” Offers Pneumatic – Pneumatic Positioner ( 3-15 Pst / Rotary Off Linear Type ) Are Advanced Control Devices Which Provide Unparalleled Stability In Difficult Environment Electro – Pneumatic Positioner Is Used For Operation Of Pneumatic Multiple Springs Diaphragm Actuators By Means Of Electrical Or Control System With An Output Signal Of DC 4 – 20 mA Or Split Rages

Specification & Standard

Specification Details
Working Pressure 1.4~7 Kgf/cm² (20~100 PSI)
Input Signal 4~20 MA DC
Standard Stroke 10~50MM
Air Piping Connection PT (NPT) 1/4
Explosion Proof Classification Exia II BT6, Exdm II CT6
Degree of Protection IP 66
Output Characteristics Linear
Material Aluminium alloy
Conduit Connection 1/2” PF
Gauge Connection PT (NPT) 1/8
Categories: , ,

Features & Benefits

1 – CE, CIMFR, BIS, ISI, ISO Certified, Approved

2 – It Is Connected With Diaphragm Actuator Directly Without Air Pipe, And Can Be Mounted The Filter Regulator On

3 – Sturdy, Tubeless And Vibration Resistant Design

4 – There Is On Resonance At 5-200Hz

5 – The Change Of RA/DA Acting Is Convenient. It Is Able To Apply To Single Or Double Acting Actuator

6 – It Is Possible To Prevent The Hunting With Orifice To The Small Size Actuator

7 – It Is Economical Due To Less Air Consumption

8 – It Is Able To Control The ½ Split Range With Simple Operation With Replacement Of Parts

Size Range

As Per Standard
Temperature Range

-20 ºC To 70 ºC
Working Pressure

100 Psi Max. (7.0 Kgf/cm²)
