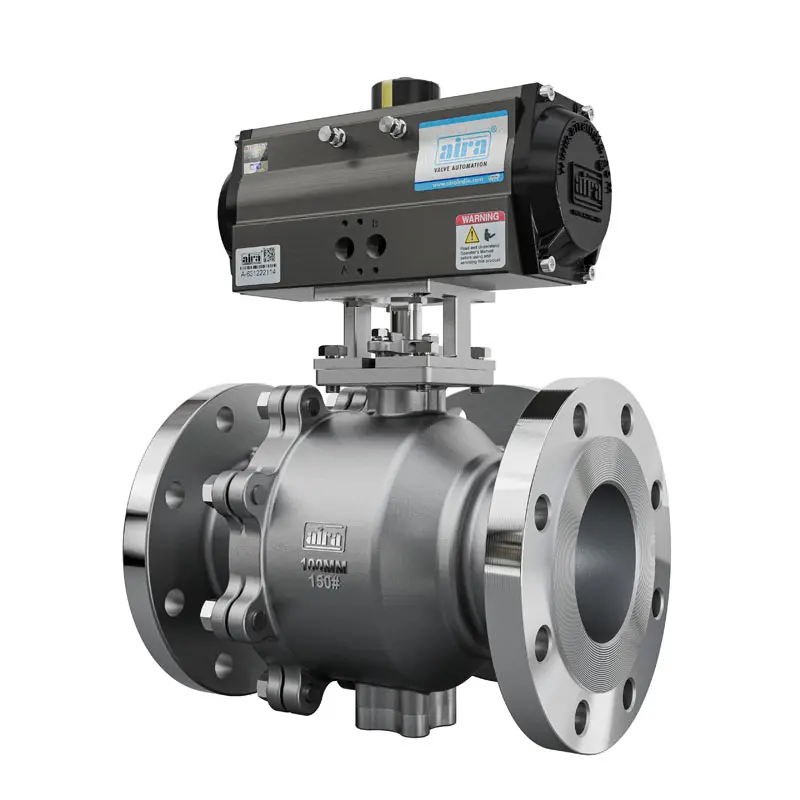

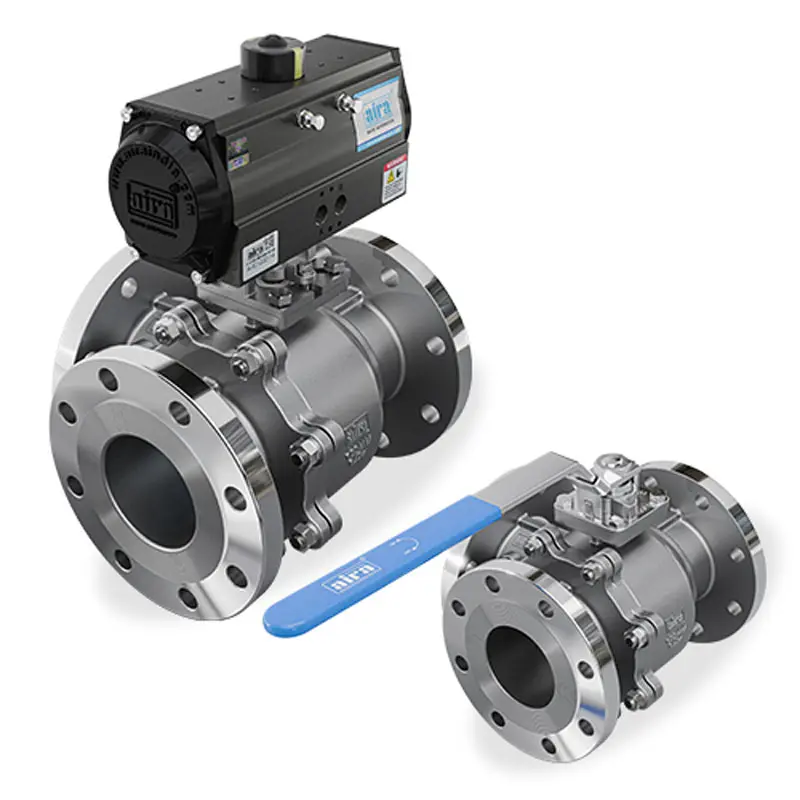

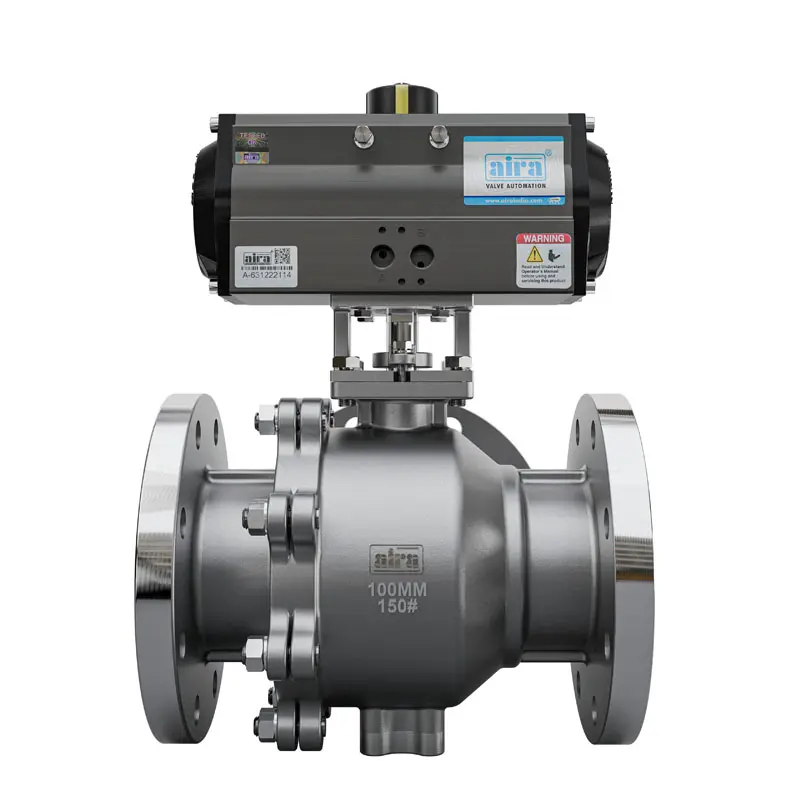

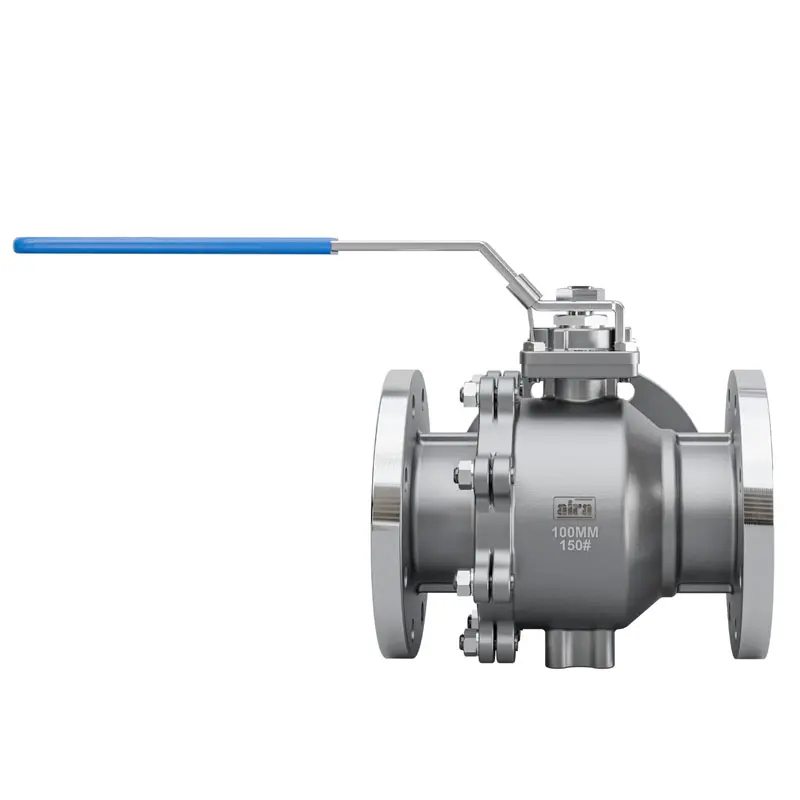

“aira” Offers 5211 Mounting Standard Pneumatic Rotary Actuator Operated 2 – Piece “C” Way Trunnion Mounted Ball valve, Ideal For Multiple On/Off Operations. Its 3 Way Side Entry Design Allows For Diverting And Mixing Flow Patterns, Potentially Replacing Two Valves. Available In T – Port and L – Port Configurations With 2 – Seat Options, It Supports Various Pressures And Temperatures, Making It Suitable For Industries Such As Chemical, Oil & Gas.
Specification & Standard
| Specification | Details |
|---|---|
| Design & Manufacturer | ASME B16.34 / BS EN ISO 17292 |
| Valve Face To Face Dimension | As Per Manufacturing |
| Inspection & Testing | API 598 / ISO-5208 / BS EN 12266-1 |
| Flange Standard Conformity | ASME B16.5 Class 150 |
| End Connection | ASME B16.5 Class 150 for Flange End |
| Size Range | 1/2″ To 8” Flange End 150# |
| Temperature Range | -50°C to 300°C for Soft Seated Valves. Contact Works for Special Requirement |
| Pressure Class | 150# |
| Media | Air / Water / Oil & Gas |
| Body Material | WCB, CF3, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONEL, DUCTILE IRON, S.G IRON |
| Ball Material | CF3, CF3M, CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX |
| Ball Type | Hollow / Solid Ball |
| Stem Material | CF3, CF3M, CF8, CF8M, 410, DUPLEX 2205, DUPLEX 2507, MONEL, 17-4 PH |
| Seat Material | PTFE, RPTFE, MODIFIED PTFE, AIRA-250 |
| Flange Drilling | ASME B16.5 Class 150# |
| Certification | Design CE Approved, Fire Safe, POD |
