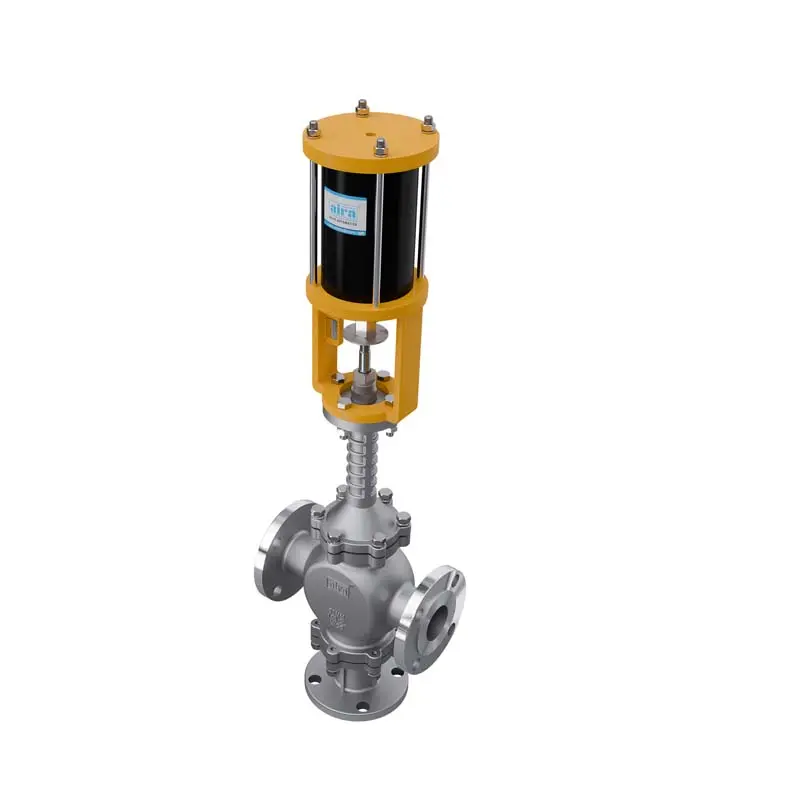

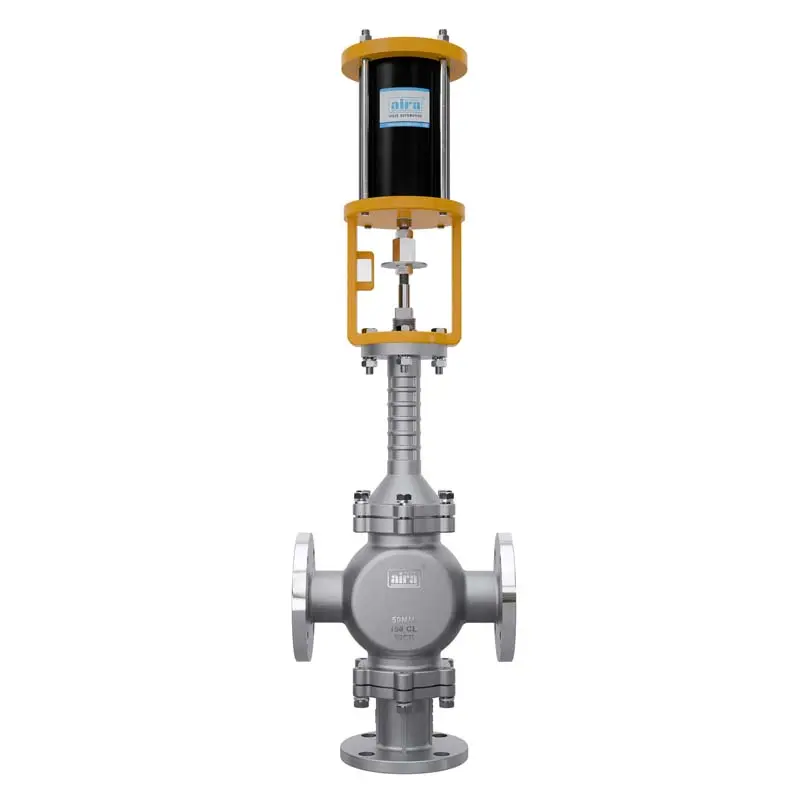

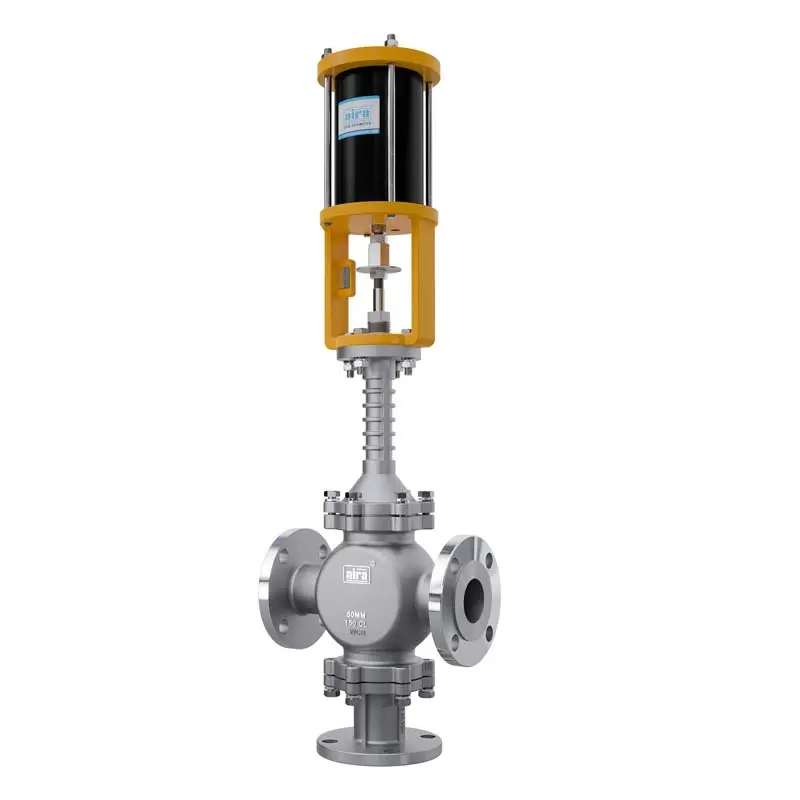

3-2 Way Pneumatic Cylinder High Pressure Control Valve
3-2 Way Pneumatic Cylinder High Pressure Control Valve - Image 2
3-2 Way Pneumatic Cylinder High Pressure Control Valve - Image 3
3-2 Way Pneumatic Cylinder High Pressure Control Valve - Image 4
,

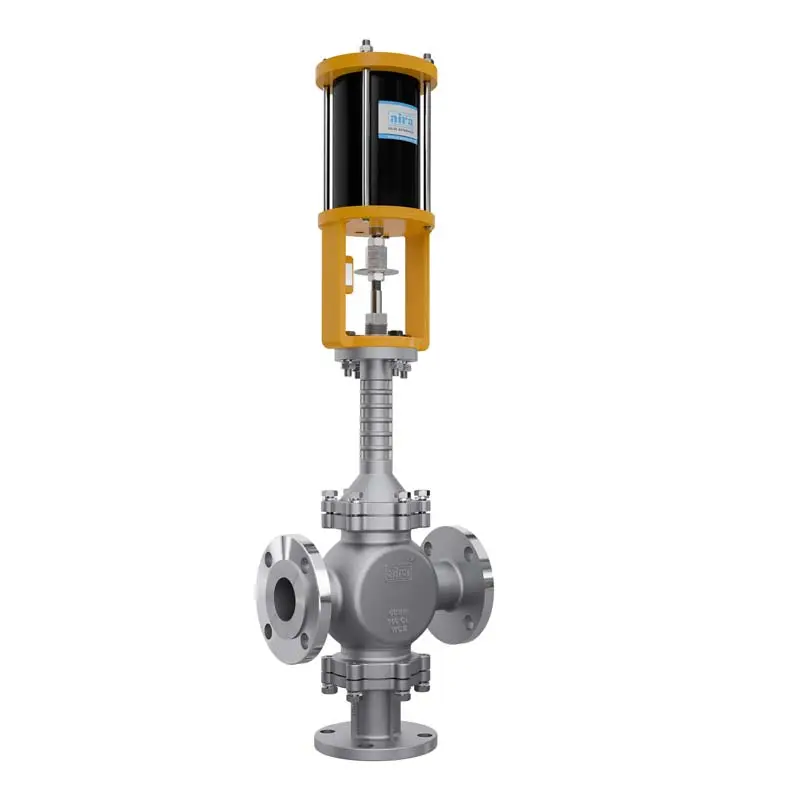

3-2 Way Pneumatic Cylinder High Pressure Control Valve

We are a leading manufacturer and supplier of 3/2 Way Pneumatic Cylinder High Pressure Control Valves in India, offering high-quality valves for various industrial applications.

Specification Details
Size Range 15MM To 100MM
Temperature Range Up to 450°C Max

“aira” Offers 2/2 – 3/2 way pneumatic Cylinder operated control valve for thermic fluid & High Temperature Application Upto 450°C.

Specification & Standard

Specification Details
Size Range 15MM To 100MM
Temperature Range Upto 450°C Max
Shutoff Rating Tight Shut Off Leakage Class
Body Style Metal To Metal
Flange Drilling 150#, 300#
Certification IBR Approved
Body Materials WCB / CF8 / CF8M
Stem Materials S. S – 304 / S. S – 316
Seat Materials PTFE / CFT / GFT
Plug Materials S. S – 304 / S. S – 316
Design Standard BS 6697
End Connection ASME B16.5
Testing Standard FCI 70 – 2
Face To Face ISA – 75.03, IEC 534 – 3
Leakage Class IV
Applications Steam / Gas / Water & Air
Categories: ,

Features & Benefits

1 – Available in 2/2 and 3/2 way options.

2 – Pneumatic Cylinder Operated.

3 – Provides reliable control for directing airflow in pneumatic systems.

4 – Built for long-term use with robust construction.

5 – Allows precise control of the flow of compressed air, ideal for automation and machinery applications.

6 – Compact and efficient design for easy integration into various systems.

7 – Typically constructed from high-quality metals or durable polymers for enhanced performance.

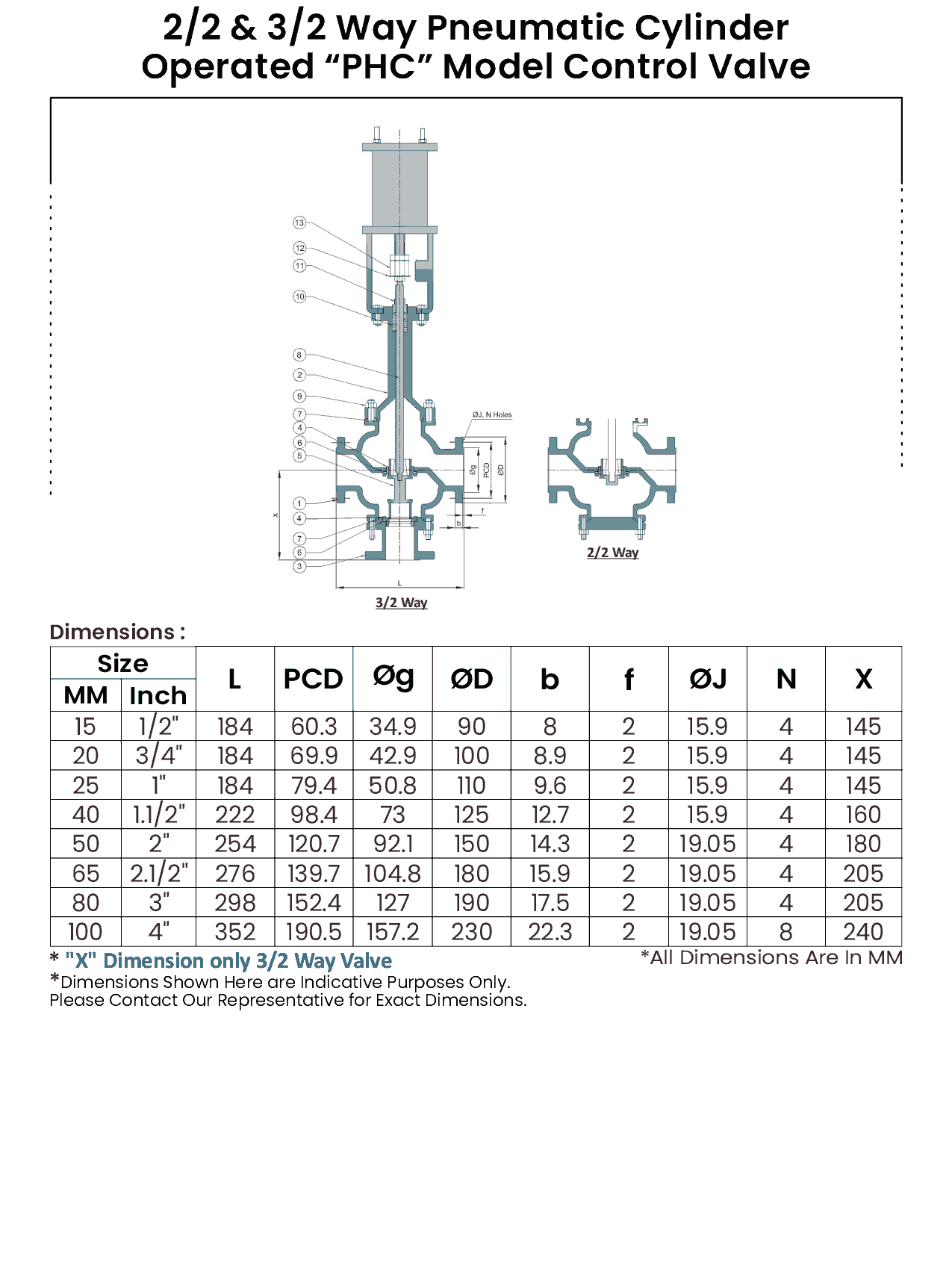

Dimension Table

Size Range

15MM To 100MM
Temperature Range

Upto 450°C Max
