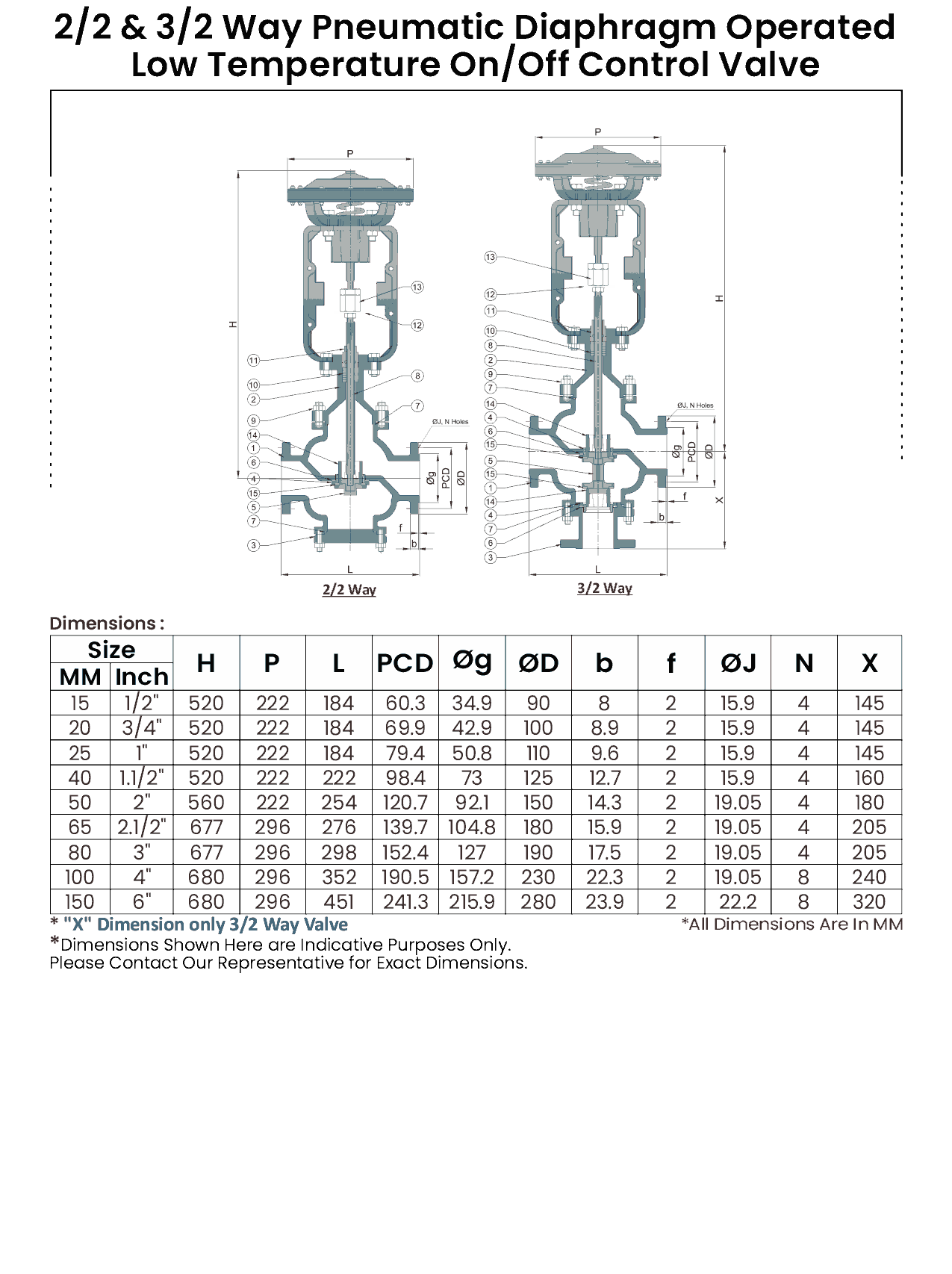

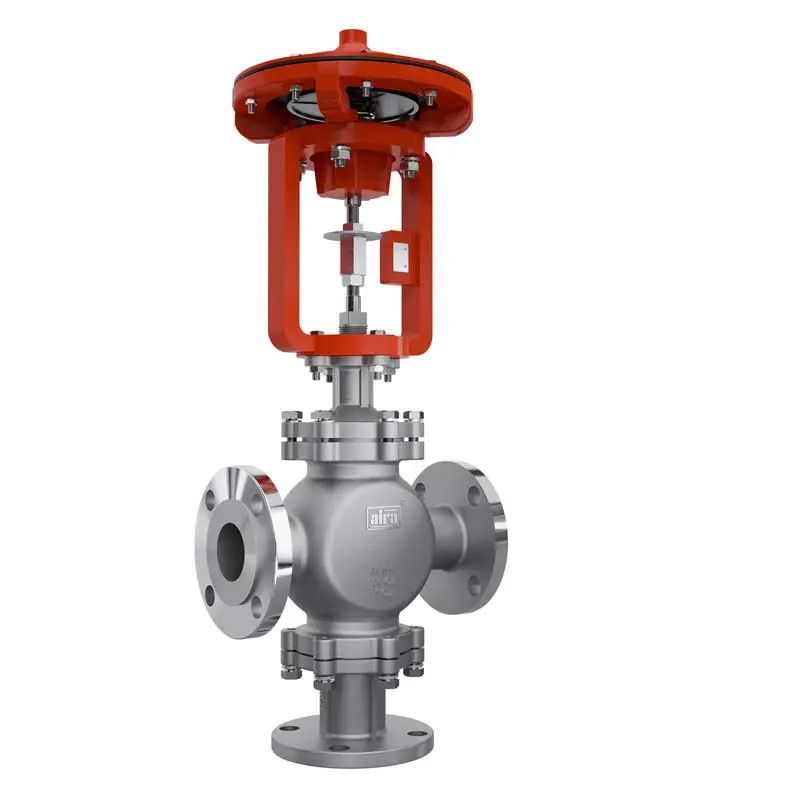

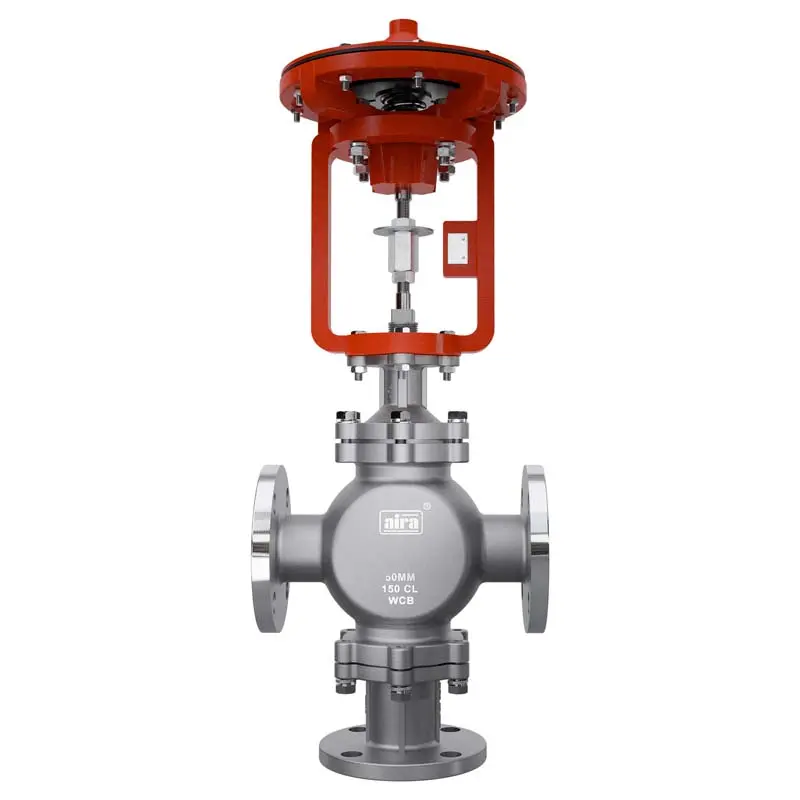

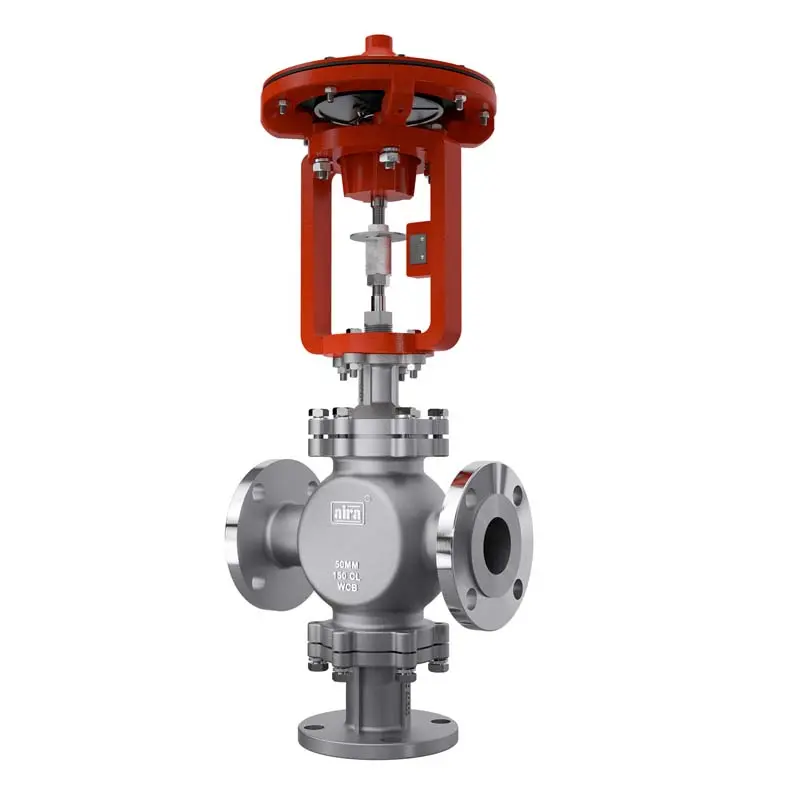

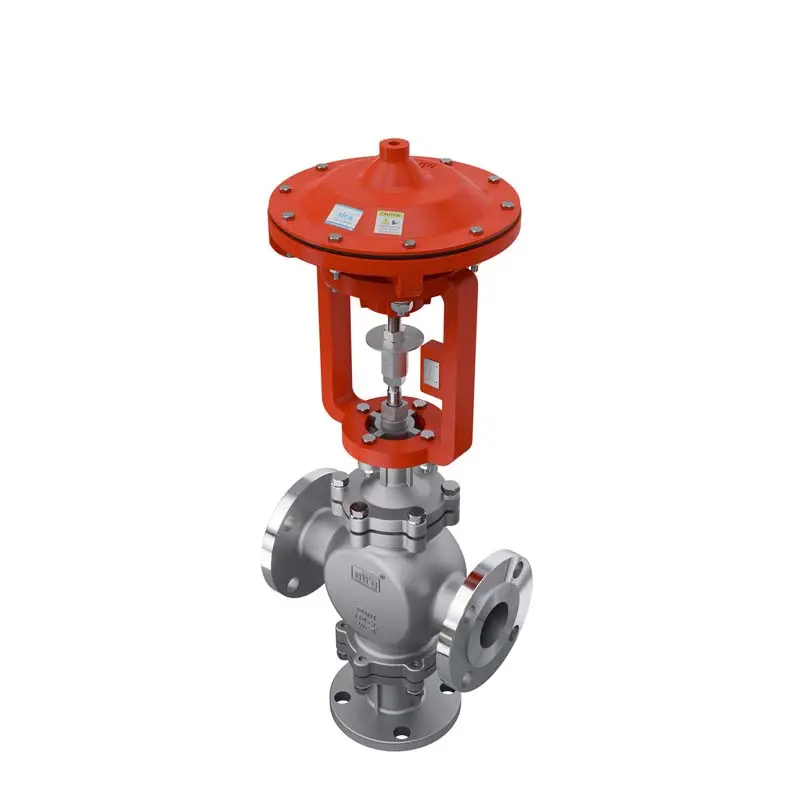

“aira” Offers 2/2 – 3/2 way pneumatic diaphragm operated on/off 220°C Control Valve.
Specification & Standard
| Specification | Details |
|---|---|
| Size Range | 15MM To 150MM |
| Temperature Range | Up to 220°C Max |
| Shutoff Rating | Tight Shut Off Leakage Class |
| Body Style | Soft |
| Flange Drilling | 150#, 300# |
| Certification | IBR Approved |
| Body Materials | WCB / CF8 / CF8M |
| Stem Materials | S. S – 304 / S. S – 316 |
| Seat Materials | PTFE / CFT / GFT |
| Plug Materials | S. S – 304 / S. S – 316 |
| Design Standard | BS 6697 |
| End Connection | Flanged End ASME B 16.5 CL 150 / 300 (600 Available On Request) |
| Testing Standard | FCI 70 – 2 |
| Face To Face | ISA – 75.03, IEC 534 – 3 |
| Leakage | CL VI for Soft Seating / FCI 70 – 2 |
| Applications | Steam / Gas / Water & Air |
