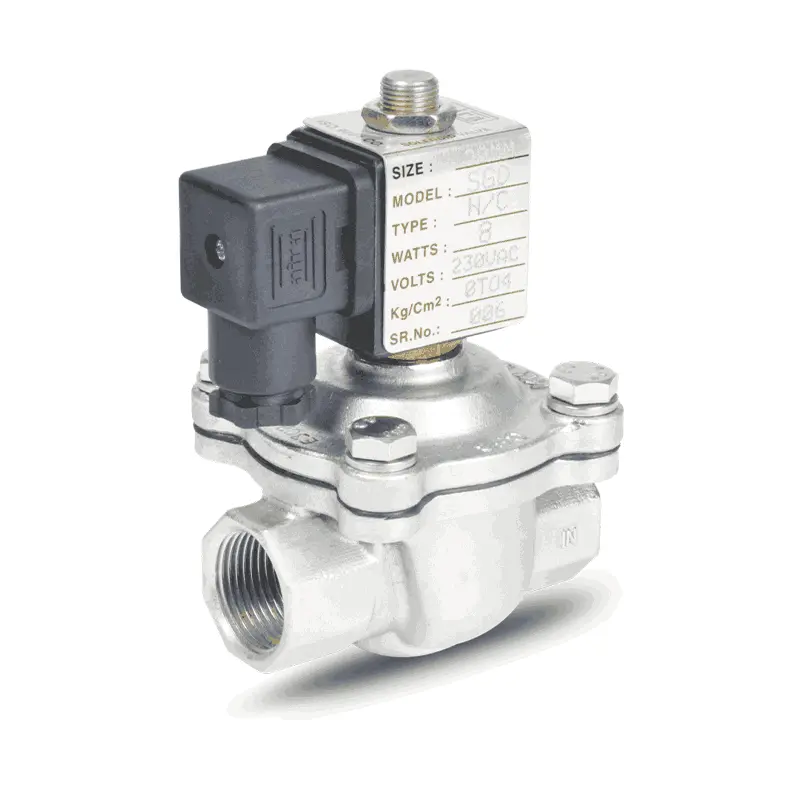

2-2 Way Semi Pilot Solenoid valve
,

2-2 Way Semi Pilot Solenoid valve

Aira Euro Automation is a leading 2/2 Way Semi Lift Diaphragm Valve manufacturer in India. We have fully in house production to maintain quality and we gained trust of our global customers.

Specification Details
Size Range 1/2″ To 2″ Screwed / Flanged / Triclover End
Temperature Range Up to 85°C (High Temperature On Request)
Working Pressure 0 To 5 Bar

“aira” Offers 2/2 Way Semi Pilot, high performance diaphragm type solenoid valve, for high volume and low pressure application in Air, Gas, Water, Vacuum, Light oil, Corrosive Fluids available in normally closed & normally open design.

Specification & Standard

Specification Details
End Connection S/E, F/E 150# / TC End
Size Range 1/2″ To 2″ Screwed / Flanged / Triclover End
Temperature Range Up to 85°C (High Temperature On Request)
Pressure Class 0 To 5 Bar
Media Air, Gas, Water, Light Oil, Vacuum & Corrosive
Body Material CF8, CF3M, CF8M
Seat Material NBR, Viton
Certification CE
Categories: ,

Features & Benefits

1 – 2/2 Way Design: Manages fluid flow with a two-port configuration, providing on/off control.

2 – Normally Closed/Normally Open Options: Available in both normally closed (NC) and normally open (NO) configurations to suit different automation needs.

3 – Screwed Connections: Features threaded fittings for secure and easy installation.

4 – Automation Ready: Electrically operated for precise and reliable control in automated systems.

5 – Durable Construction: Made from high-quality materials like brass or stainless steel for enhanced durability and resistance to wear and corrosion.

6 – Compact and Space-Efficient: Designed to fit in tight spaces while delivering effective performance.

7 – Versatile Fluid Handling: Suitable for various fluids, including air, water, and chemicals.

8 – Low Maintenance: Engineered for minimal upkeep, reducing maintenance costs and downtime.

9 – Fast and Reliable Switching: Ensures quick and dependable actuation for efficient system operation.

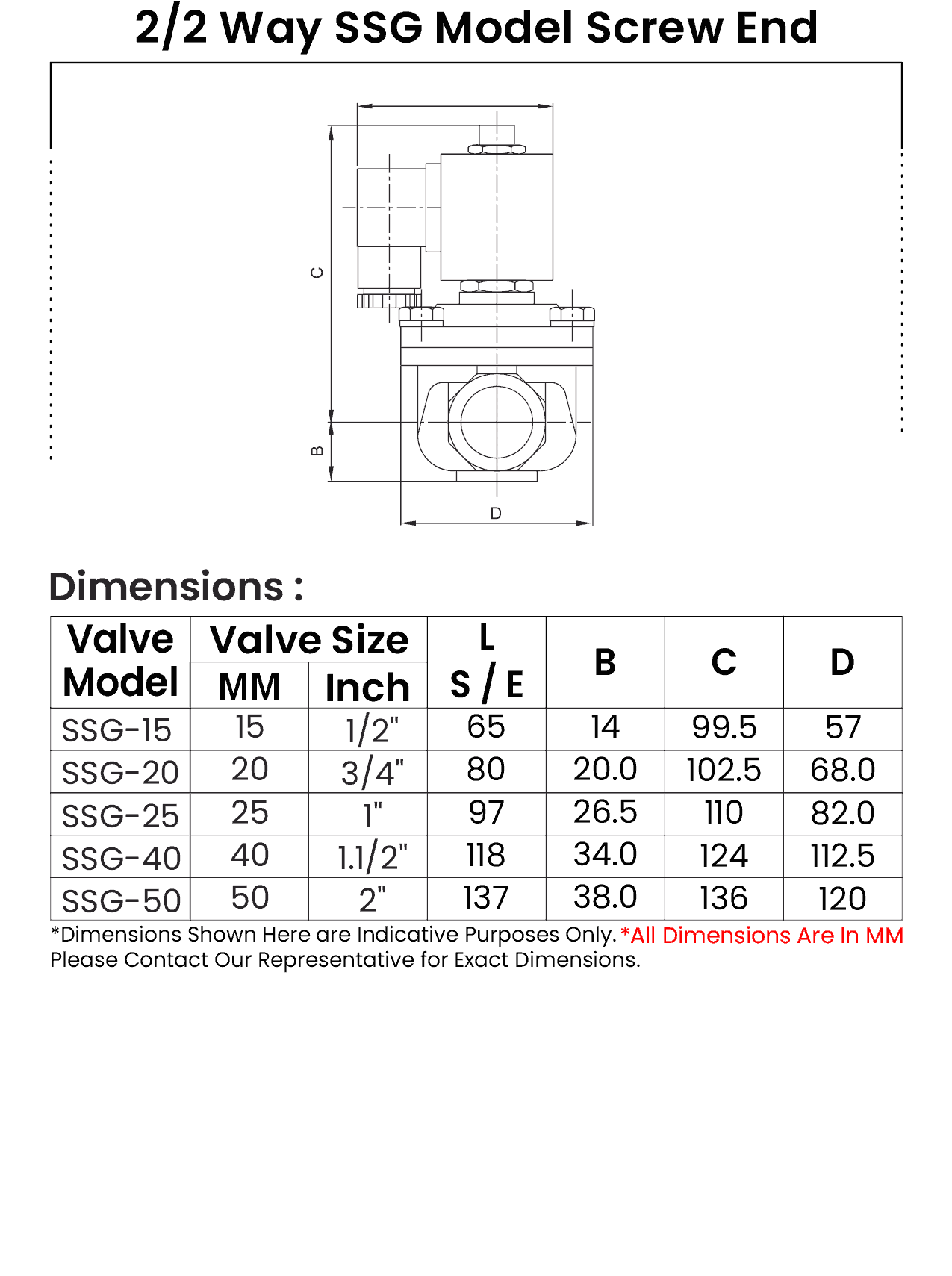

Dimension Table

Size Range

1/2" To 2" Screwed, Flanged, Triclover End
Temperature Range

Upto 85°C (High Temperature On Request)
Working Pressure

0 To 5 Bar
