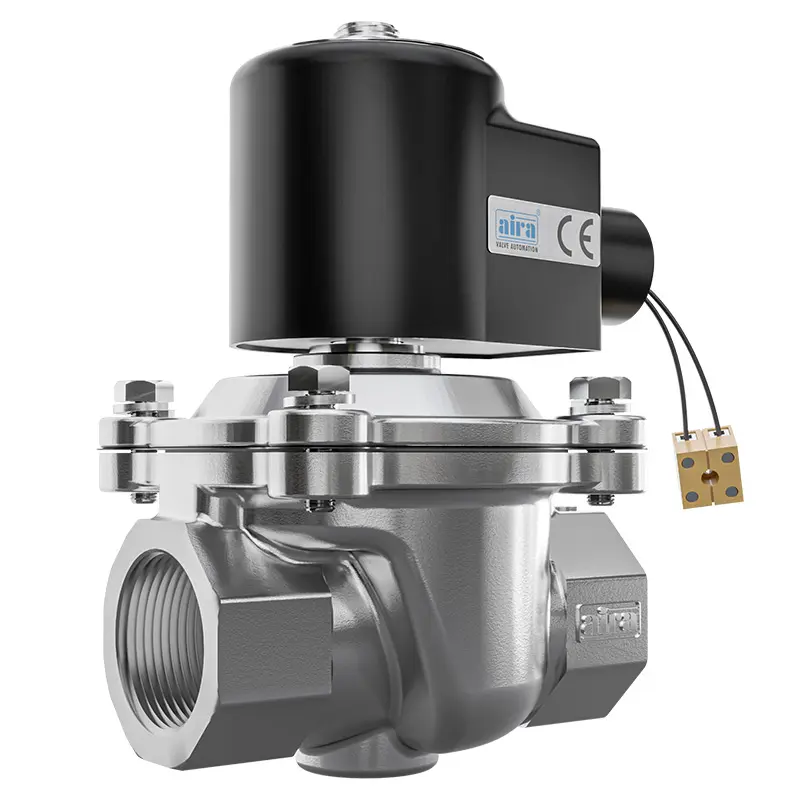

2-2 Way High Temperature Screwed Solenoid Valve

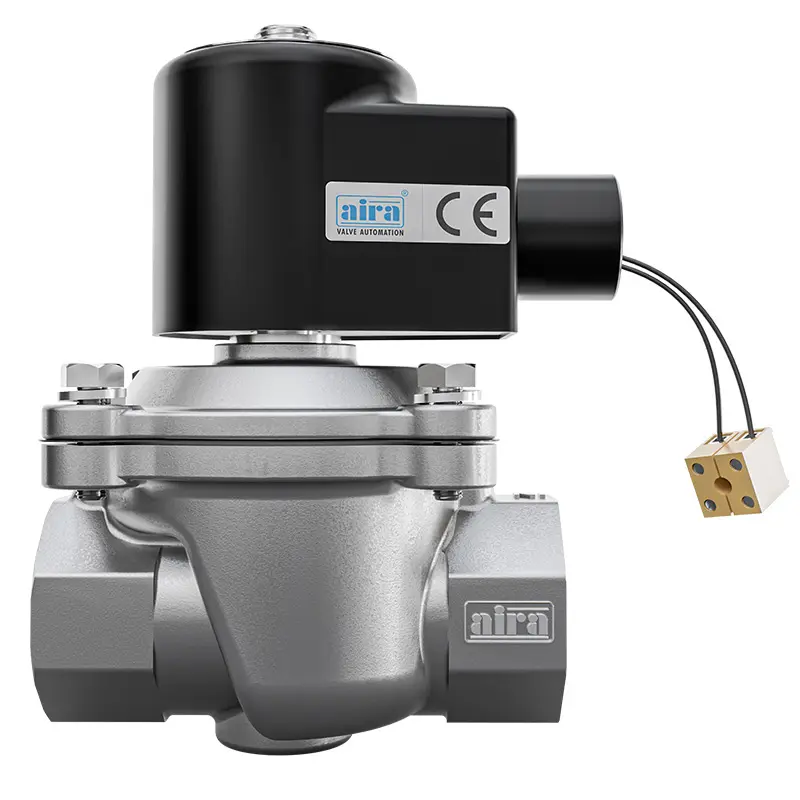

2-2 Way High Temperature Screwed Solenoid Valve - Image 2

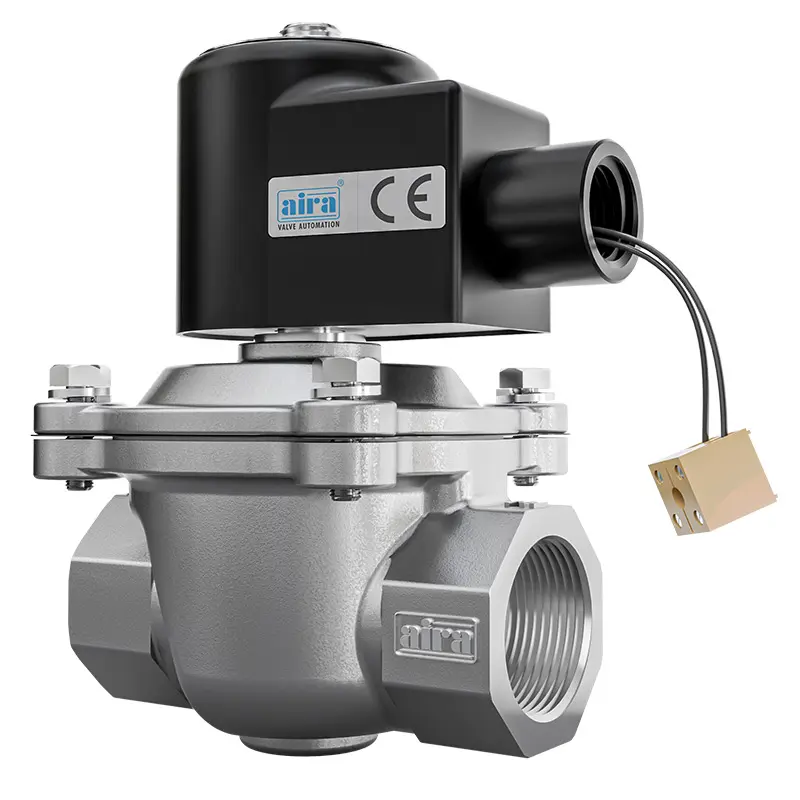

2-2 Way High Temperature Screwed Solenoid Valve - Image 3
2-2 Way High Temperature Screwed Solenoid Valve - Image 4
,

2-2 Way High Temperature Screwed Solenoid Valve

Your trusted source for high-quality 2/2 Way High-Temperature Solenoid Valves. As a leading manufacturer & supplier in India, we provide top-notch solutions.

Specification Details
Size Range 3/8″ To 4″ Screwed
Temperature Range 180°C Max. ( High Temperature On Request )
Working Pressure 0 To 5 Bar Max. ( 0 to 6 Bar On Request )

“aira” Offers 2/2 way semi Lift, high performance diaphragm type solenoid Valves, for high volume and low pressure application in air, gas, water, vacuum, light oil, corrosive fluids. available in normally close and normally open design.

Specification & Standard

Specification Details
Size Range 3/8″ To 4″ Screwed
Temperature Range 180°C Max. (High Temperature On Request)
Pressure Class 0 To 5 Bar Max. (0 To 6 Bar On Request)
End Connection Screwed 150#
Media Oil Plants, Vacuum Plant, Pump Seal, Water
Body Material CF8, CF3M, CF8M
Seat Material PTFE, Viton
Certification CE
Categories: ,

Features & Benefits

1 – 2/2 Way Configuration: Provides reliable on/off control with a two-port design for managing fluid flow.

2 – Normally Closed/Normally Open Options: Available in both normally closed (NC) and normally open (NO) configurations to meet different operational requirements.

3 – Screwed Connections: Features threaded fittings for easy and secure installation.

4 – Automation Ready: Electrically actuated for precise and efficient automated control.

5 – Durable Construction: Built from high-quality materials like brass or stainless steel, ensuring longevity and resistance to corrosion.

6 – Compact and Robust: Designed for space efficiency while maintaining durability and performance in various environments.

7 – Versatile Fluid Compatibility: Suitable for a range of fluids, including air, water, and chemicals.

8 – Low Maintenance: Engineered to require minimal upkeep, reducing maintenance needs and operational costs.

9 – Fast and Reliable Switching: Offers quick response times for effective and dependable system control.

Dimension Table





Size Range

3/8" To 4" Screwed
Temperature Range

180°C Max. ( High Temperature On Request )
Working Pressure

0 To 5 Bar Max. ( 0 to 6 Bar On Request )
