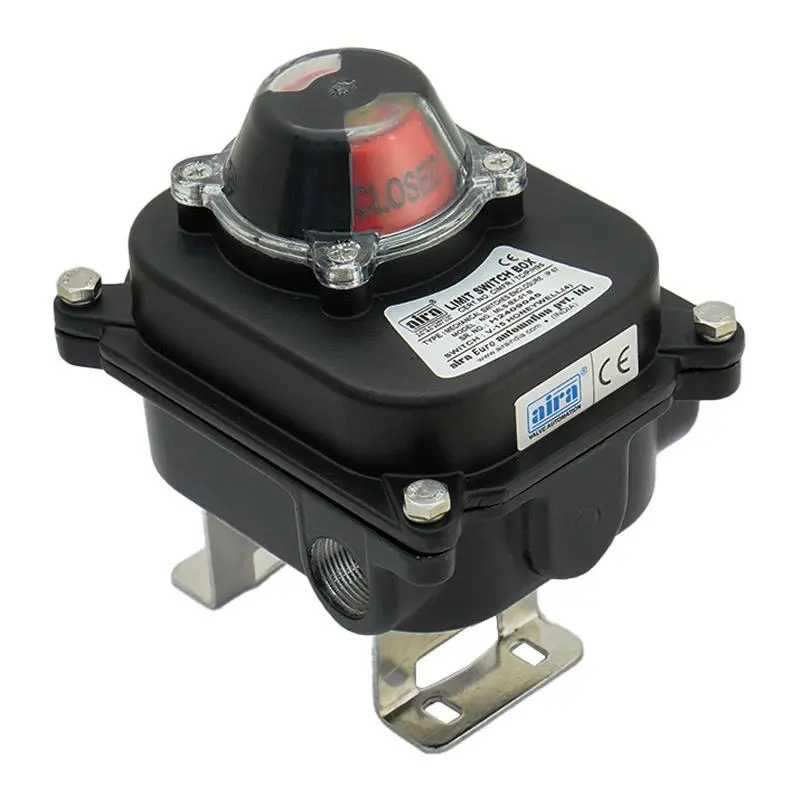

Standard Limit Switch Box
, ,

Standard Limit Switch Box

Aira Euro Automation, a leading manufacturer & supplier of Standard Limit Switch Box in India. Made from Aluminium Pressure Die Cast. Call us for details!

Specification Details
Type Mechanical Switch X 2, Proximity Sensors P&F Other Make
Switch Honeywell, P & F, Other On Request
Type 1 NO + 1 NC (Other On Request)
Switch Rating AC 250V 3A, 125V 5A | DC 250V 0.2A, 125V 0.4A, 30V 4A
Enclosure Protection IP 67
Ambient Temp. -20°C ~ 80°C
Conduit Entry NPT 1/2″ (Other Option Available On Request)
Terminal 8 Points
Mounting Bracket NAMUR VDI / VDE 3845, ISO 5211 (80 mm x 30 mm or 120 mm x 30 mm) (Adjustable Bracket Available On Request)
Material Aluminium Pressure Die Cast
Categories: , ,

Features & Benefits

1 – Visual Position Indicator.

2 – 6 Contacts of Terminal Ports.

3 – Compatibility with any Rotary Motion Actuator ISO 5211.

4 – Easy Adjustment of Cam Position.

5 – Dual 1/2″ Conduit Entries.

Dimension Table
