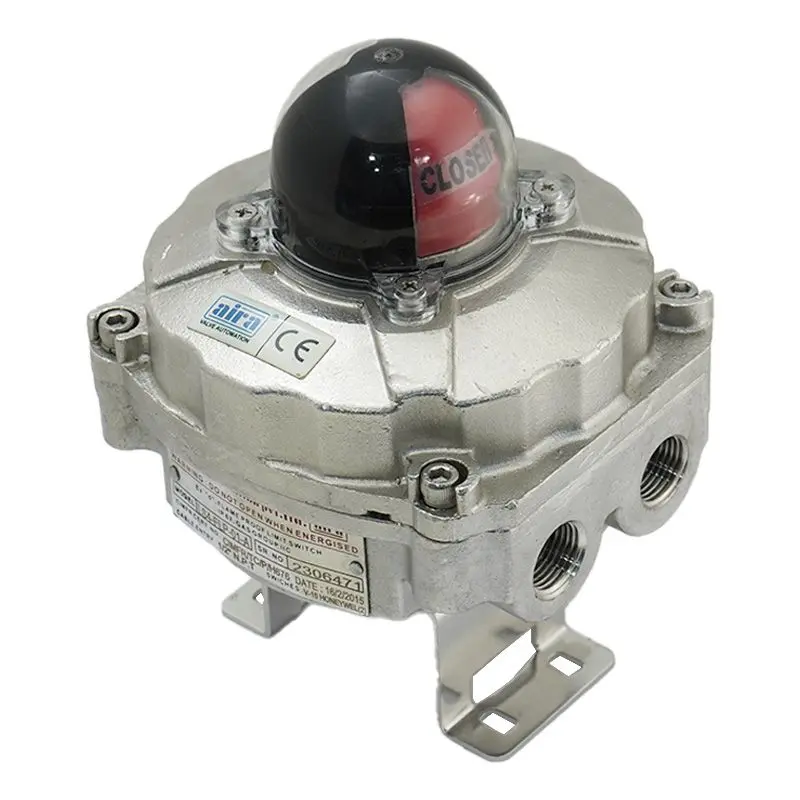

Stainless Steel Flame Proof Limit Switch Box
, ,

Stainless Steel Flame Proof Limit Switch Box

aira Euro automation Manufacturer and Exporter of Flame Proof Micro Limit Switch Box With Stainless Steel, Micro Limit Switch Box with Stainless Steel and Switch Box with Stainless Steel

Specification Details
Type Mechanical Switch X 2, Proximity Sensors P&F Other Make
Switch Honeywell, P & F, Other On Request
Type 1 NO + 1 NC (Other On Request)
Switch Rating AC 250V 3A, 125V 5A, 10A & 16A | DC 250V 0.2A, 125V 0.4A, 30V 4A
Enclosure Protection IP 67
Ambient Temp. -20°C ~ 80°C
Conduit Entry NPT 3/4″ (Other Option Available On Request)
Terminal 8 Points
Mounting Bracket NAMUR VDI / VDE 3845, ISO 5211 (80 mm x 30 mm or 120 mm x 30 mm) (Adjustable Bracket Available On Request)
Material Aluminium / Stainless Steel 304 (Stainless Steel 316 On Request)
Categories: , ,

Features & Benefits

1 – Easy to Set Colour Coded Cam.

2 – All Fasteners in Stainless Steel.

3 – Water, Rain Proof To IP 67.

4 – Additional Mounting Hole Threaded.

5 – CMRI, PESO CCOE Certified.

Dimension Table
