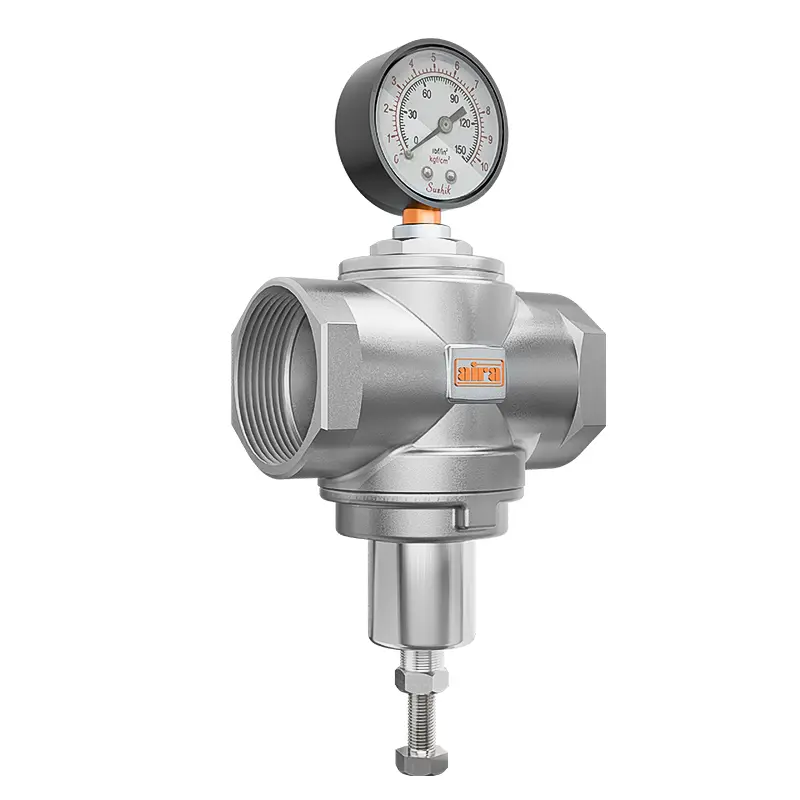

“aira” stainless steel body pressure reducing valve is designed for durability and precision. Engineered to regulate and stabilize pressure in various applications, it ensures consistent performance and reliability. Its stainless steel construction provides excellent resistance to corrosion and wear, making it ideal for demanding environments. This valve is easy to install and maintain, offering long-term efficiency and effective pressure control.
Specification & Standard
| Specification | Details |
|---|---|
| Size Range | 15MM To 100MM |
| Temperature Range | Up to 150°C |
| Max Inlet Pressure | Up to 18 kg/cm² |
| Pressure Adjusting Range | 1 ~ 6 kg/cm² & 4 ~ 10 kg/cm² |
| Body Style | Globe Type |
| Body Materials | CF8 / CF8M |
| Piston Materials | Stainless Steel |
| Seat Materials | VITON |
| Design Standard | Manufacture – Standard |
| Testing Standard | Manufacture – Standard |
| Face To Face | Manufacture – Standard |
| Applications | Oil & Steam |
| End Connection | Screwed End² |
