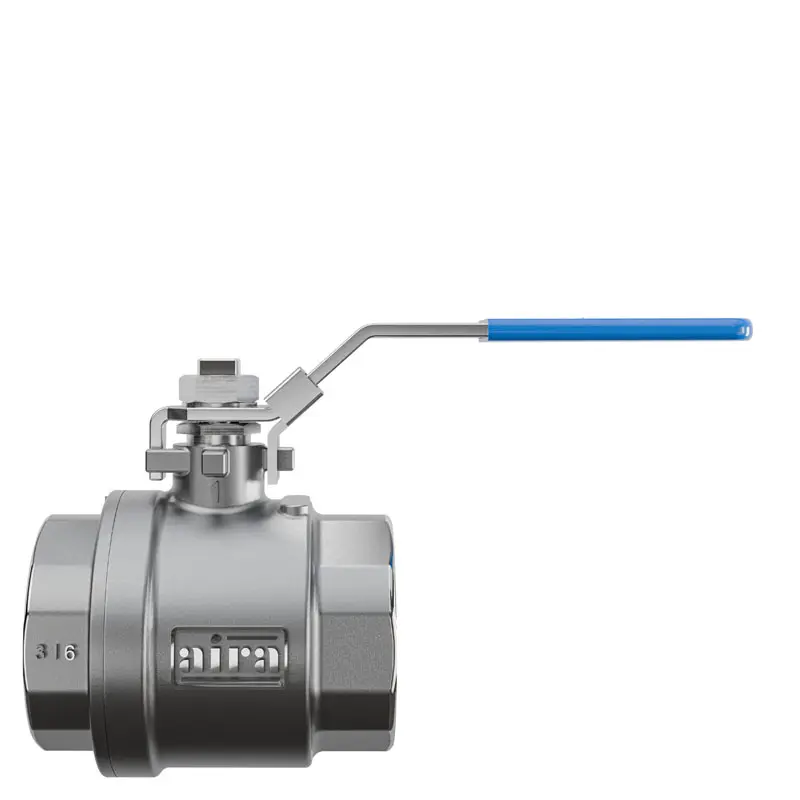

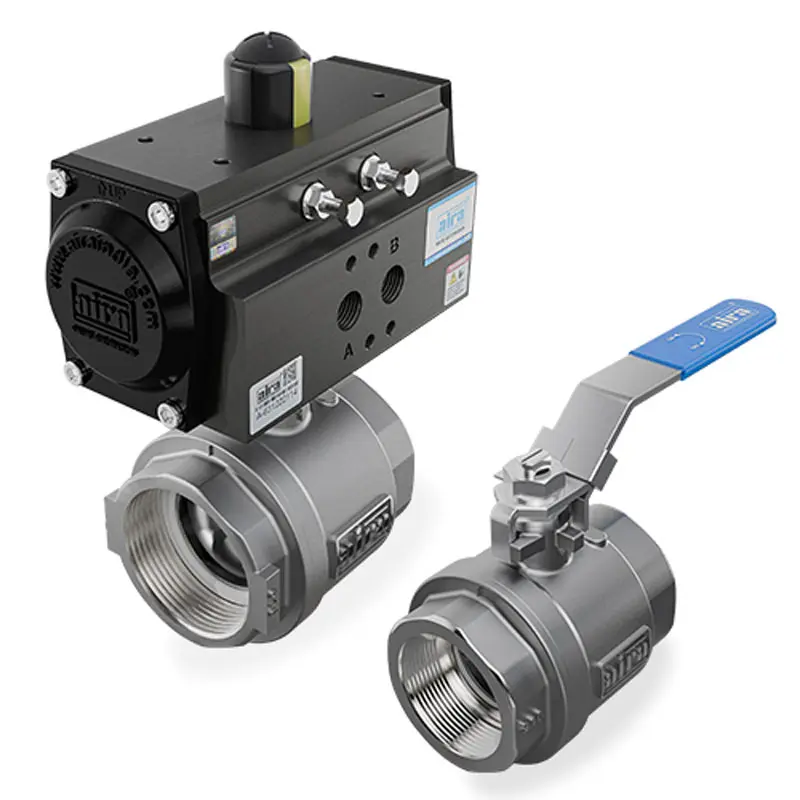

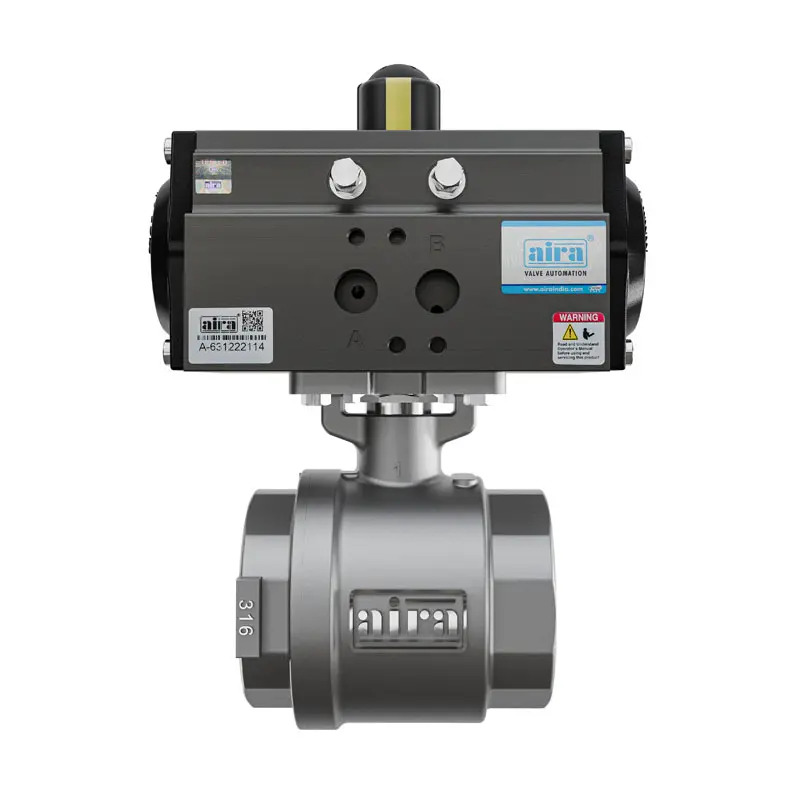

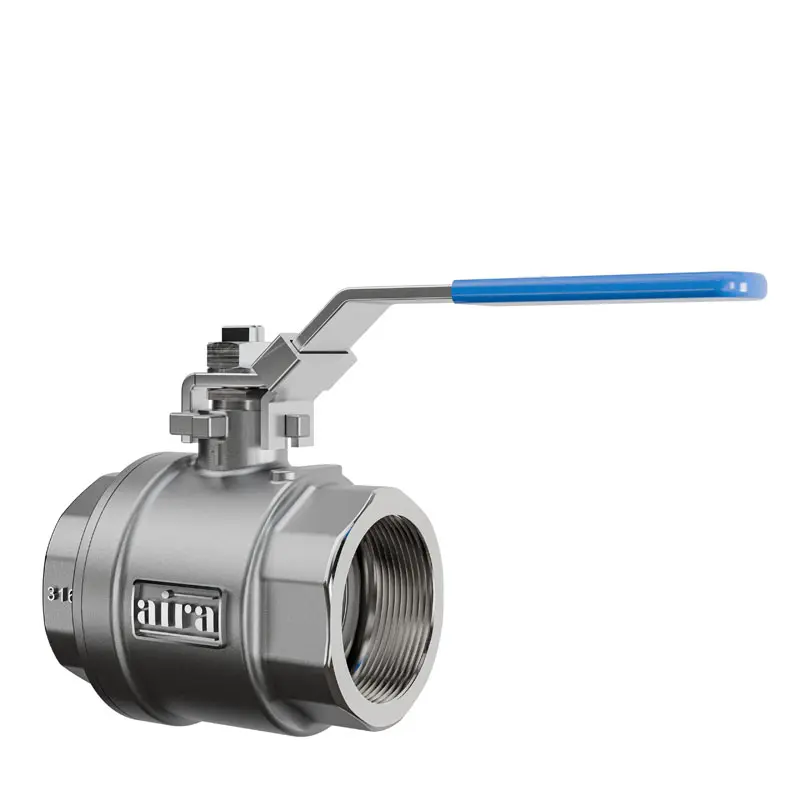

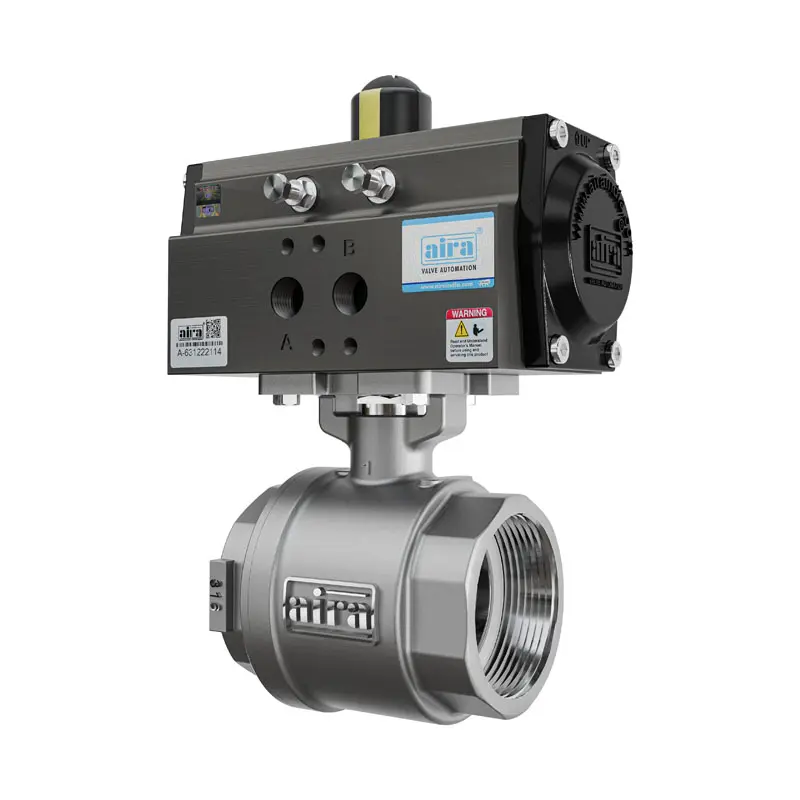

“aira” Offers Automation And Manually Investment Casting WCB / CF8 / CF8M / CF3M Ball Valve Floating In Single Piece Design. Engineered For Multiple On/off Operations In The Down Stream
| Specification | Details |
|---|---|
| Design & Manufacturer | ASME B 16.34 / BS EN ISO 17292 |
| Valve Face To Face Dimension | ASME B 16.10 / BSEN ISO 17292 |
| Inspection & Testing | API 598 / ISO-5208 / BS EN 12266-1 |
| Size Range | 1/4″ To 2″ Screwed 150# |
| Media | Air / Water / Oil & Gas |
| Ball Material | CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M |
| Stem Material | AISI 410, SS 304, SS 316, SS 304L, SS 316L, Duplex 2205, Duplex 2507, Monel |
| Leakage Class | ISO 5208 Class VI / FCI – 70 – 2 / ASME B 16, 16.104 (Bubble Tight Shutoff) |
| End Connection | ISO 7-1 FOR BSPT / BSP / ASME B 1.201 FOR NPT FOR S/E ASME 16.11 FOR SOCKET WELD |
| Temperature Range | -30°C To 250°C For Soft Seated Valves. Contact Works For Special Requirement |
| Pressure Class | 150# |
| Body Material | CAST IRON (CI), DUCTILE IRON (DI), S.G IRON (SGI), WCB, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONEL |
| Ball Type | Hollow & Solid |
| Seat Material | PTFE, RPTFE, CFT, GFT, Modified PTFE, AIRA-250, Nylon, Devlon, PEEK |
