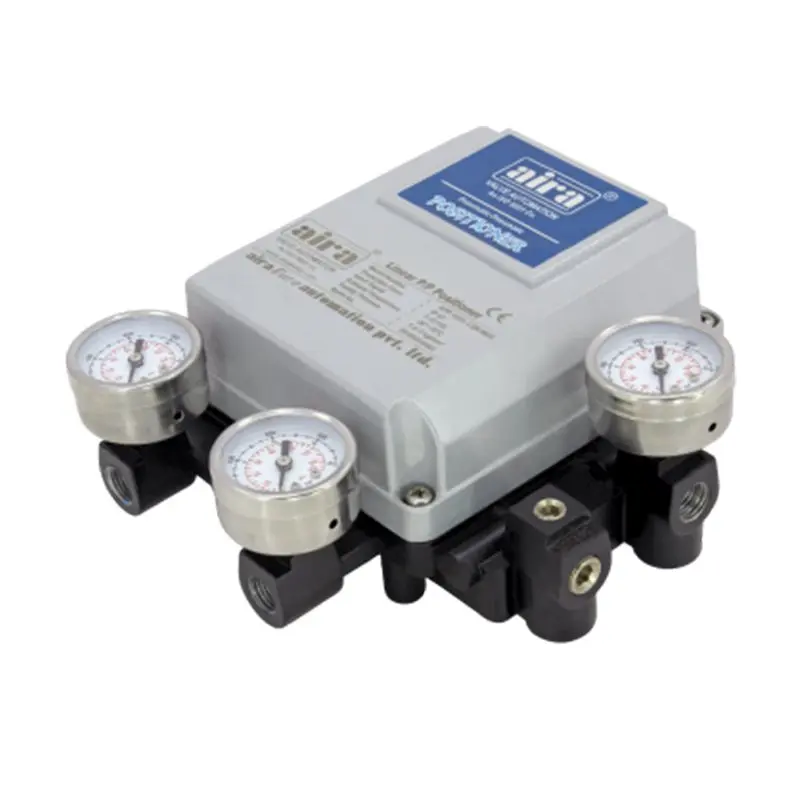

Pneumatic Pneumatic Linear Valve Positioner
, ,

Pneumatic Pneumatic Linear Valve Positioner

We are a leading manufacturer and supplier of Pneumatic Linear Valve Positioners in India, offering reliable solutions for precise valve control in various applications.

Specification Details
Size Range As Per Standard
Temperature Range -20 ºC To 70 ºC
Working Pressure 100 Psi Max. (7.0 Kgf/cm²)

“aira” APP – 1200 R/L Series Positioners Are Used For Liner / Rotary Movement With Ranges 3-9 And 9-15 Psig Control Sigal , When You Select Split Range Standard Rang Is 3-15 Psig The Positioners Can Handle The Supply Pressure Upto 100 Psig For Higher Pressure Industrial Pneumatic And Process Control System Requirements

Specification & Standard

Specification Details
Working Pressure 1.4~7 Kgf/cm² (20~100psi)
Input Signal 4~20 mA DC
Standard Stroke 10~50mm
Air Piping Connection PT (NPT) 1/4
Explosion Proof Classification Exia II BT6, Exdm II CT6
Degree of Protection IP 66
Output Characteristics Linear
Material Aluminium alloy
Conduit Connection 1/2” PF
Gauge Connection PT (NPT) 1/8
Categories: , ,

Features & Benefits

1 – Designed Block Build Structure For Maintenance And Repair

2 – Precise Calibration With Simple SPAN And ZERO Adjustment

3 – Simple Conversion To Direct Acting Or Reverse Acting

4 – Split Range Control Available By Simple Adjustments Without Changing Parts

5 – Simple Structure For Feedback Connection

6 – Corrosion – Resistant Aluminium Die Cast Body

7 – Sensitive Response For High Performance

8 – Vibration Resistant Design

9 – Stainless Steel Gauge Standard

10 – A Restricted Pilot Valve Orifice Kit For Small Actuators Included

11 – Optional Built – In Limit Switched Or 4-20 mA Position Transmitter For Feedback

12 – Optional Directly – Mountable Positioner

13 – Proved The Reliability Through Over 5,00,000 Times Of Repeat Test & Vibration Test

Size Range

As Per Standard
Temperature Range

-20 ºC To 70 ºC
Working Pressure

100 Psi Max. (7.0 Kgf/cm²)
