IBR Approved Screwed Safety Valve
,

IBR Approved Screwed Safety Valve

Leading manufacturer and supplier of IBR Safety Valves in India. Reliable and high-quality valves designed for safety and efficiency. Contact us for your requirements!

Specification Details
Size Range 15MM To 100MM
Temperature Range 80 °C (For Water), 180 °C (For Steam)
Working Pressure 21 BAR (High Pressure On Request)

“aira” Offers Screwed Safety Valve, IBR approved, offers reliable pressure protection for industrial applications with a threaded connection for easy installation. It complies with Indian Boiler Regulations (IBR) to ensure safety and regulatory adherence. Designed for durability and precision, this valve effectively relieves excess pressure to safeguard equipment and systems.

Specification & Standard

Specification Details
Size Range 15MM To 100MM
Temperature Range 80 °C (For Water), 180 °C (For Steam)
Max Inlet Pressure 21 BAR (High Pressure On Request)
Pressure Adjusting Range 0.5 ~ 10 BAR, 10 ~ 20 BAR
Body CF8 / CF8M
Seat NBR / VITON
Media Water / Gas / Air & Low Temperature Oil
End Connection Screwed End 150 Class
Categories: ,

Features & Benefits

1 – Robust Construction: Built from high-strength materials to ensure durability and resistance to corrosion and extreme conditions.

2 – Precise Pressure Control: Designed for accurate pressure settings, providing reliable and timely activation to prevent over pressure situations.

3 – Quick Response Mechanism: Engineered to open rapidly at set pressure levels, ensuring immediate relief and enhanced safety.

4 – Compact Design: Space-efficient design allows for easy integration into various systems, making it ideal for limited spaces.

5 – User-Friendly Installation: Designed for straightforward installation and maintenance, reducing downtime and operational costs.

6 – Low Maintenance: Minimal upkeep is required to ensure long-lasting performance and reliability.

7 – Safety Assurance: Complies with international safety standards, providing peace of mind in critical applications.

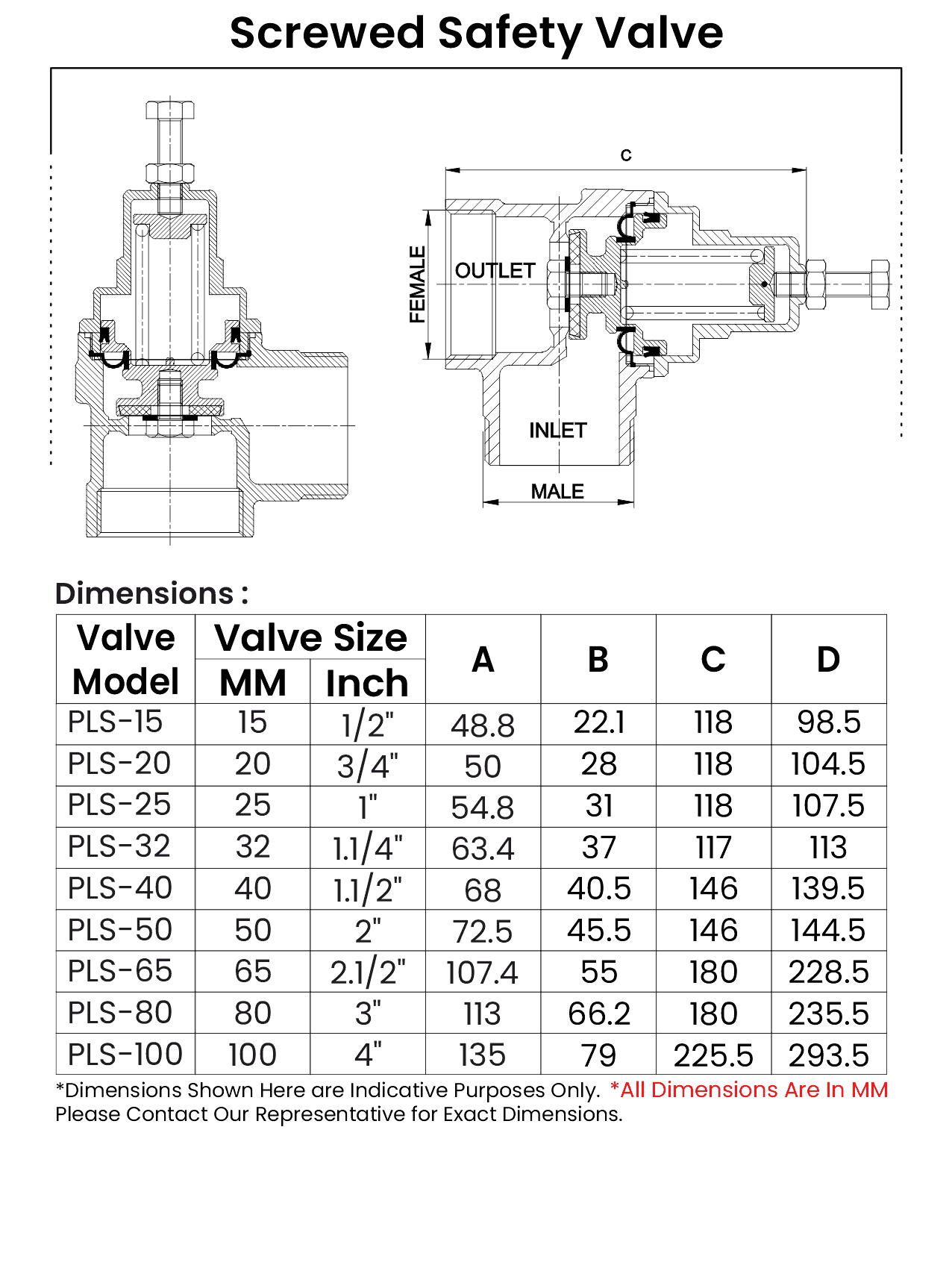

Dimension Table

Size Range

15MM To 100MM
Temperature Range

80 °C (For Water), 180 °C (For Steam)
Working Pressure

21 BAR (High Pressure On request)
