Hydraulic Pressure Reducing Valve
,

Hydraulic Pressure Reducing Valve

Hydraulic Pressure Reducing Valve – Are You Looking for Pressure Reducing Valve in Hydraulic also know as Hydraulic Pressure Relief Valve so Visit Now. We are Mfrs in India.

Specification Details
Size Range 50MM To 600MM Flanged End
Temperature Range 80°C

“aira” Hydraulic Pressure Reducing Valve is designed to manage and stabilize pressure within hydraulic systems. It effectively regulates output pressure by automatically adjusting to variations in input pressure, ensuring consistent performance and protecting hydraulic components from damage. With its robust construction and precise control, this valve is ideal for demanding industrial applications where reliability and durability are crucial.

Specification & Standard

Specification Details
Size Range 50MM To 600MM Flanged End
Temperature Range 80 °C
Pressure Adjusting Range 1~7 BAR, 4~10 BAR, 1~10 BAR
Design Diaphragm Type Pressure Reducing Valve
Body Cast Iron / Ductile Iron
Parts Stainless Steel
Diaphragm EPDM
Media Air / Water
End Connection Flanged End 150 Class
Categories: ,

Features & Benefits

1 – Pressure Regulation: Maintains consistent downstream pressure in hydraulic systems.

2 – Direct Activation: Operates without external pilots for straightforward control.

3 – Adjustable Set Point: Easily set and adjust the desired pressure level.

4 – Durable Construction: Made from robust materials for long-term reliability.

5 – High Flow Capacity: Accommodates a range of flow rates while ensuring stable pressure.

6 – Compact Design: Space-efficient for various hydraulic applications.

7 – Low Maintenance: Minimal upkeep required due to efficient design.

8 – Pressure Relief: Integrated relief function to protect against overpressure.

9 – Corrosion Resistant: Built to withstand harsh hydraulic fluids and environments.

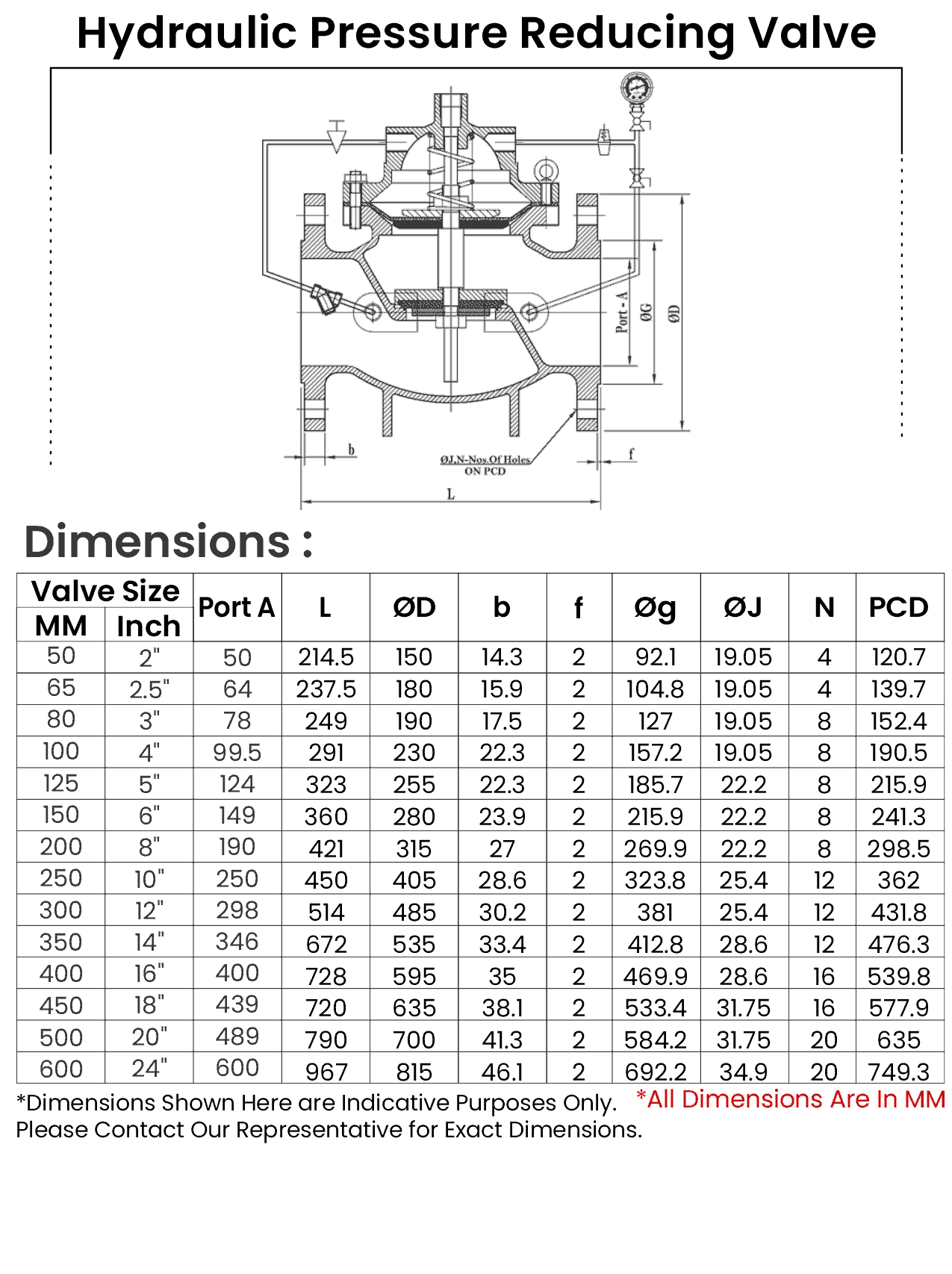

Dimension Table



Size Range

50MM To 600MM Flanged End
Temperature Range

80 °C
