| Specification | Details |
|---|---|
| Type | Mechanical Switch X 2, Proximity Sensors P&F Other Make |
| Switch | Honeywell, P & F, Other On Request |
| Type | 1 NO + 1 NC (Other On Request) |
| Switch Rating | AC 250V 3A, 125V 5A, 10A & 16A | DC 250V 0.2A, 125V 0.4A, 30V 4A |
| Enclosure Protection | IP 67 |
| Ambient Temperature | -20°C ~ 80°C |
| Conduit Entry | NPT 1/2″ (Other Option Available On Request) |
| Terminal | 8 Points |
| Mounting Bracket | NAMUR VDI / VDE 3845, ISO 5211 (80 mm x 30 mm or 120 mm x 30 mm) (Adjustable Bracket Available On Request) |
| Material | Aluminium Pressure Die Cast |
Accessories, Aira Accessories, Limit Switch Box

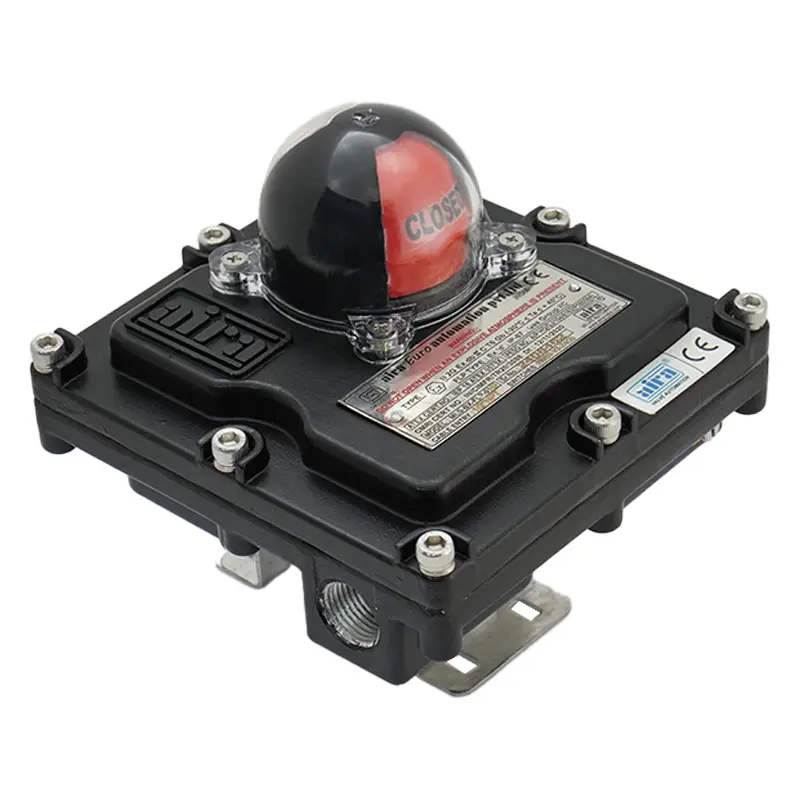

Flameproof Limit Switch Box
aira Euro automation Manufacturing Flam Proof Limit Switch Box and Limit Switch Box also we export globally as per order
Features & Benefits
1 – Easy to Set Colour Coded Cam.
2 – All Fasteners in Stainless Steel.
3 – Water, Rain Proof To IP 67.
4 – Additional Mounting Hole Threaded.
5 – CMRI, PESO CCOE Certified.
Dimension Table
