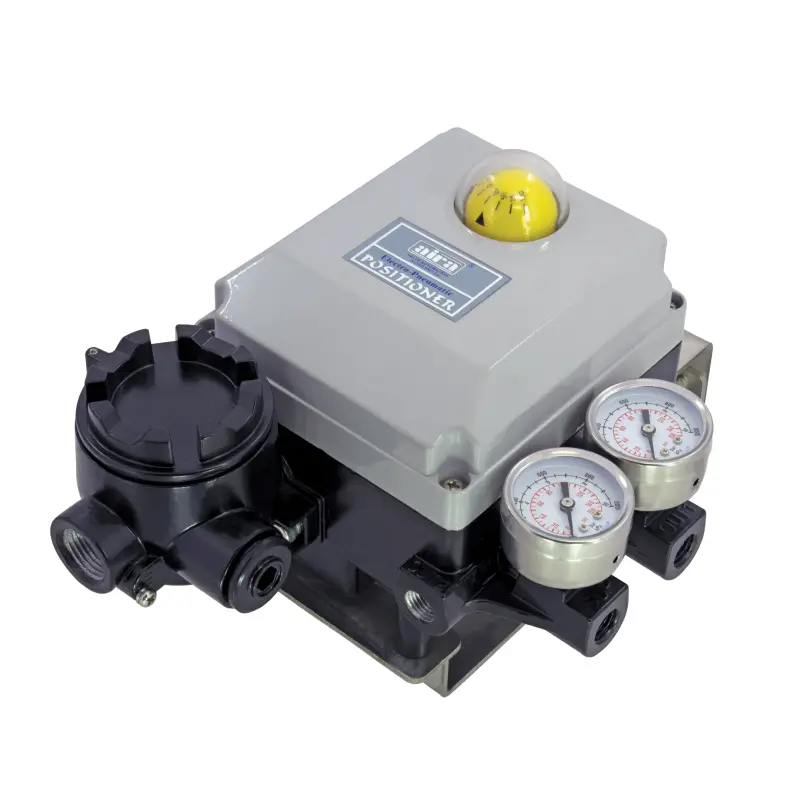

“aira” AEP – 1000 – R/L Series Electro – Pneumatic Are Used As Final Controlling Element For Operation Of Pneumatic Rotary / Linear Valve Actuators In Correspondence With An Input Signal Of 4 – 20mA DC Or Split Ranges The Positioners Are Based On A Force Balance Design For Control Application That Requires A High Degree Of Reliability And Repeatability At An Economical Cost The Positioners Can Handle The Supply Pressure Up To 100 Psig For Higher Pressure Industrial Pneumatic Ans Process Control System Requirements
Specification & Standard
| Specification | Details |
|---|---|
| Size Range | As Per Standard |
| Ambient Temperature | -20° to 70°C |
| Supply Air Pressure | 20~100 psi Max. (7.0 kgf/cm²) |
| Model | AEP-1000-L / AEP-1000-R |
| Output Characteristics | Rotary |
| Air Piping Connection | 1/4” NPT |
| Explosion Proof Classification | Exia II BT6, Exdm II CT6 |
| Degree of Protection | IP 66 |
| Material | Aluminium Die Cast Body |
| Standard Stroke | 10~80mm |
