Drum Valve
,

Drum Valve

aira Euro automation Manufacturer and Exporters of Pneumatic Actuator Operated Drum Valve, Pneumatic Actuator Drum Valve and Actuator Operated Drum Valve in India.

Specification Details
Size Range 50MM To 600MM Flanged End
Temperature Range 80°C (For Water), 180°C (For Steam)
Working Pressure Upto 10 BAR

“aira” Offers Multi Function Pneumatic Drum Type Control Valve Can Be Used As Isolating Valve And Also For Flow Controlling Application Special Design Namur Style Ball Valve Mounted On Main Valve, Couple With Pneumatic Actuators Operation Its Simple Technique And Heavy Duty Design Impact A Unique Stands Against Other Control Valve High Flow Factor And Simple Pilot Control Makes Its Very User Friendly.

Specification & Standard

Specification Details
Size Range 50MM To 600MM Flanged End
Temperature 80°C (For Water), 180°C (For Steam)
End Connection Flanged End
Body Material WCB / C.I. / CF8 / CF8M
Piston Stainless Steel 304 / 316
Seals Material NBR / Viton / EPDM
Categories: ,

Features & Benefits

1 – Exclusive Smart Design For Big Size & Cross Country Water Line Projects

2 – High Cv Value, With Low Pressure Hammering

3 – Choice Of Operating Control Available In Pneumatic Actuator Like On Off / Modulating / On – Off With Feedback

4 – On – Off & Proportionate Control Having Input Single Of 4 ~ 20mA Available In Pneumatic Actuator

5 – Precise Pressure Control And Repeatability Can Be Achieved For Proportionate Control Application

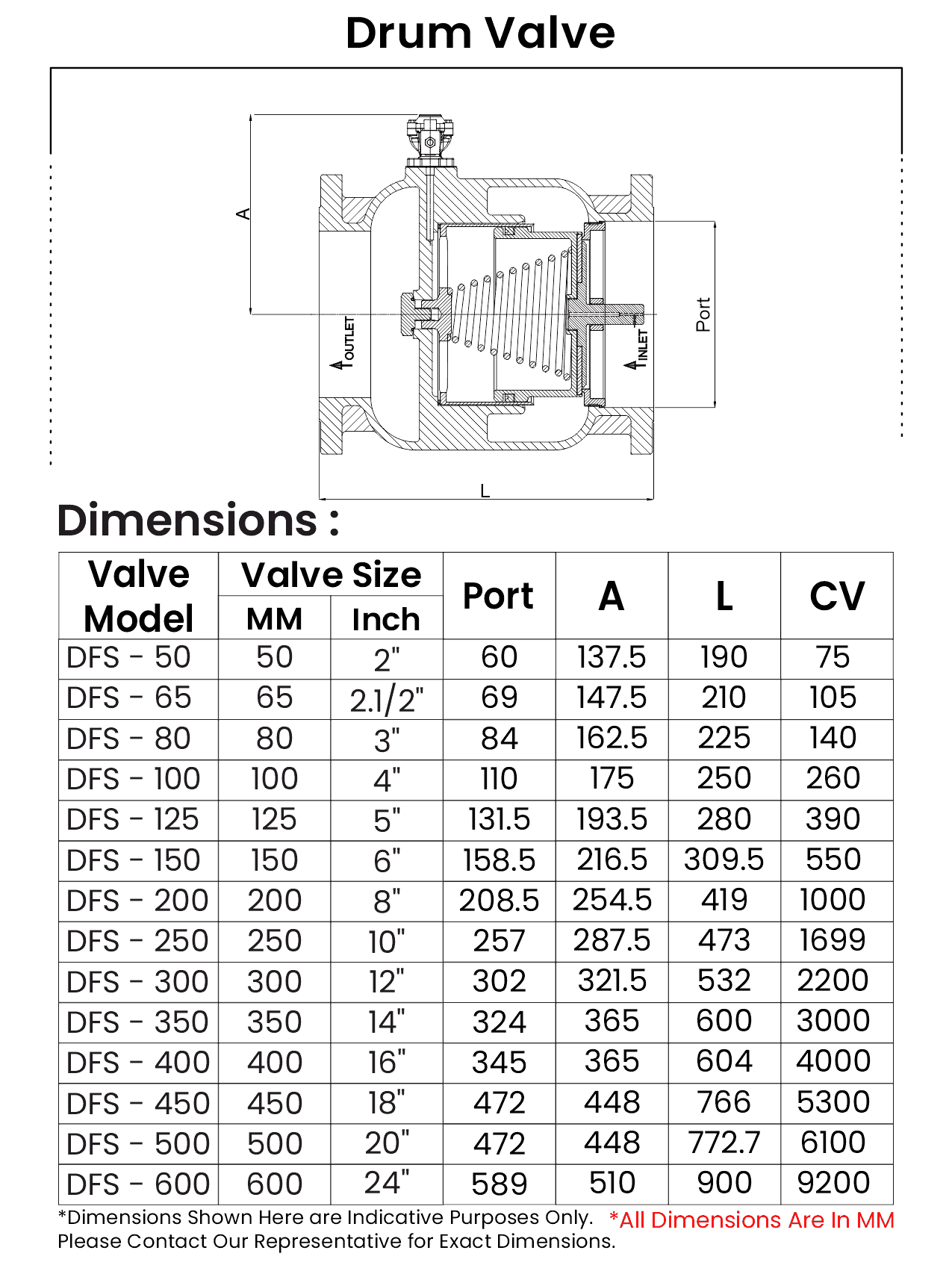

Dimension Table

Size Range

50MM To 600MM Flanged End
Temperature Range

80 °C (For Water), 180 °C (For Steam)
Working Pressure

Upto 10 BAR
