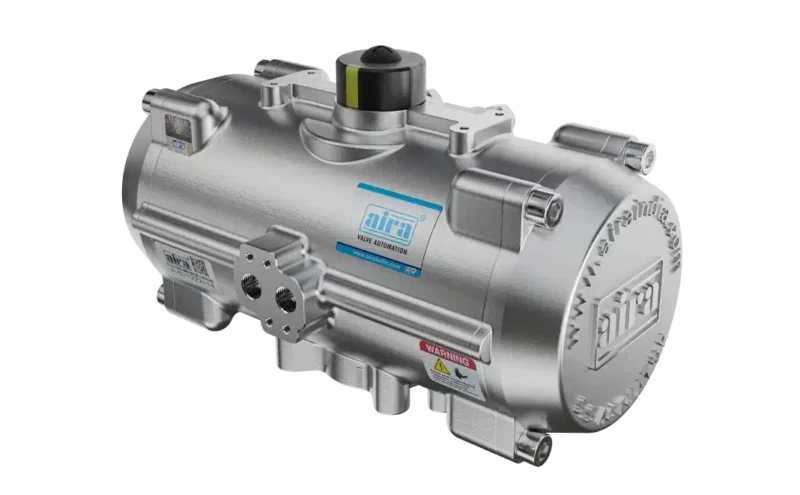

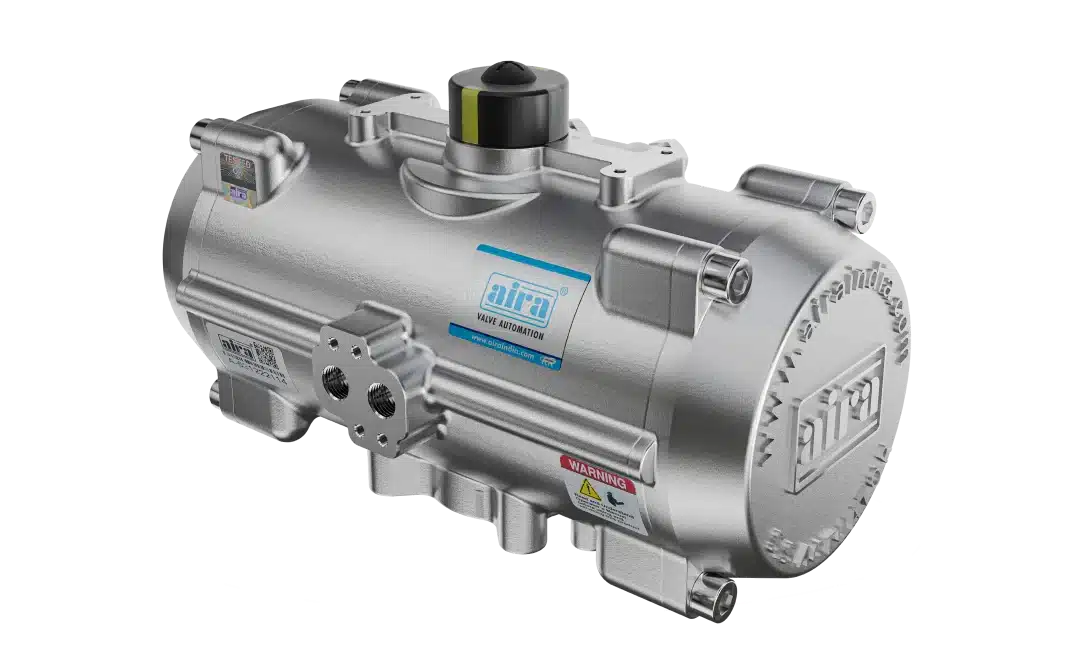

Rack And Pinion Stainless Steel Double Acting Pneumatic Actuator

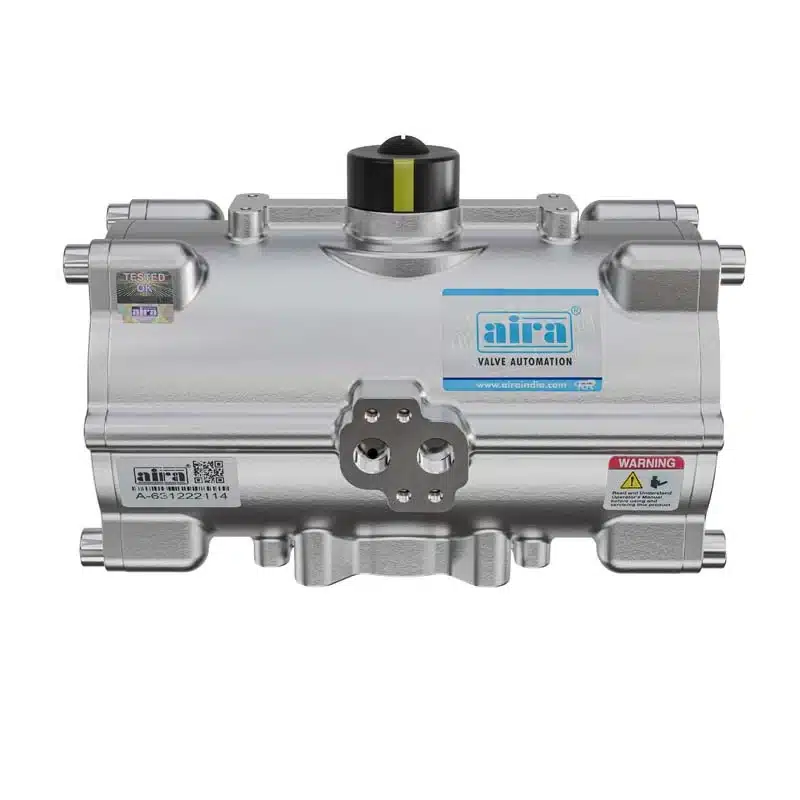

Double Acting Pneumatic Actuator - Image 2

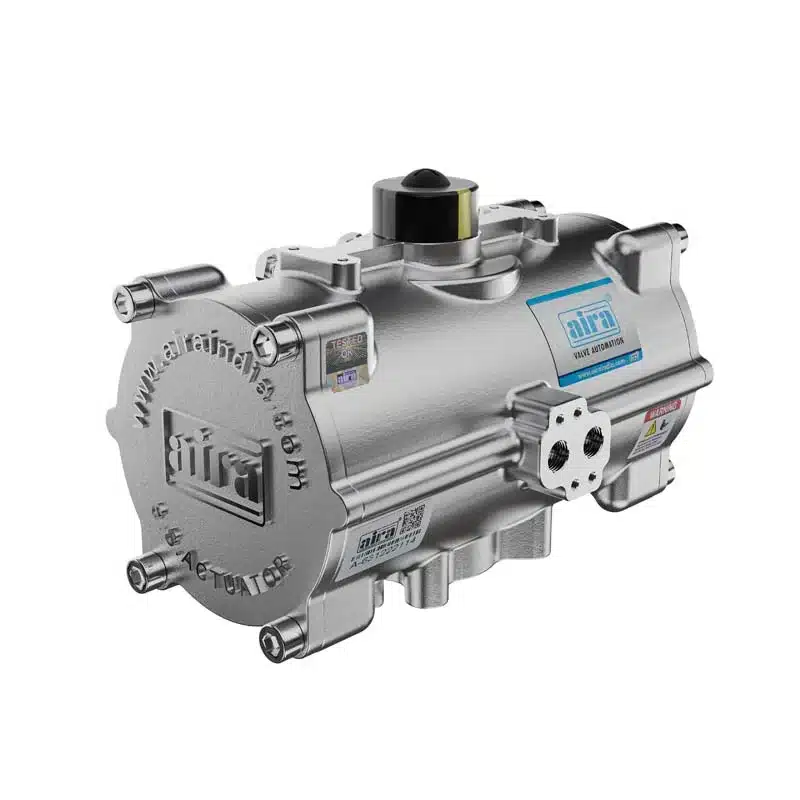

Double Acting Pneumatic Actuator - Image 3

Pneumatic Actuators, Rack And Pinion (S.S)

Double Acting Pneumatic Actuator

Premium Stainless Steel Rack & Pinion Pneumatic Actuators. Ideal for harsh environments. Buy from India’s trusted supplier.

Specification	Details
Size Range	DOT-45 To DOT-315
Temperature Range	Upto 150°C
Working Pressure	4 To 8 Bar

“aira” Offers pneumatic actuators are stainless steel actuator which incorporate latest mechanical technology, materials available and our expertises, through designing, developing, testing and engineering application, we have obtained a high grade product with the characteristics of reliability, high performance, long cycle life, large adjustment, highest levels of corrosion protection, wide selection of model with easy and economy.

Actuator Specifications

Specifications & Standards

Specification	Details
Size Range	DOT-45 To DOT-315
Operating Temperature	Up to 150°C
Working Pressure	4 To 8 Bar
Method Of Transmission	Rack And Pinion Type
Actuation	Double Acting
Body	IC CF8/ CF8M
Caps And Rack	IC CF8/ CF8M
Pinion	S.S.304/ S.S.316
Seals	Buna – N/ Viton
Air Pressure	Normal Air Supply Pressure: 4KG/CM², Air Supply Pressure: 8KG/CM² Max
Actuator Design	ISO 5211 (Actuator Can Be Quickly And Easily Mounted)
Rotation	90° – Quarter Turn
Torque	0 To 3815 NM
Mounting PCD	ISO 5211
Body Materials	S.S – 304/ S.S – 316
Piston Materials	304/ 316
Application	Operating For Valve

Categories: Pneumatic Actuators, Rack And Pinion (S.S)

Features & Benefits

1 – Excellent corrosion resistance. All main parts of actuator and it’s accessories are made from stainless steel. The body and end-caps is made by investment casting stainless steel. The CF8 (304) and CF8M (316) are available for choice. The pinion and fastening are made by 304 or 316 on requiring.Nearly 20 years experience of application proved that this kind of stainless steel pneumatic is able to offer excellent resistance to most corrosive chemicals (such as acid, alkali) as well as corrosive industry atmospheres, such as offshore, oil and gas platform, pharmaceutical and food industry.

2 – Wide scope of output torque. Totally, we have 6 different size (specifications) actuators for choice. The output torque range is from 15Nm to 3815Nm at 5 Bar. The stainless steel actuator with 3815Nm is biggest one in the World now.

3 – Smooth and long life operation. High level manufacturing technology for the rack & pinion in our workshop allows this actuator not only to cycle more than 500,000 times free from failure but also to offer exceptionally smooth actuation due to the low friction generated during rotral operations.

4 – Flexible adjustment in travel ends The two independent external travel stop bolts allow ±5°adjustment at 0°and 90° of the quarter travel.
