Air Volume Booster
, ,

Air Volume Booster

aira Euro automation Manufacturer of Air Volume Booster, Volume Air Booster also we made immediately as per requirement f of client.

Specification Details
Size Range As Per Standard
Temperature Range -20°C ~ 70°C (Standard Temp.),
-20°C ~ 120°C (High Temp.),
-40°C ~ 70°C (Low Temp.)
Working Pressure Max. 10 BAR

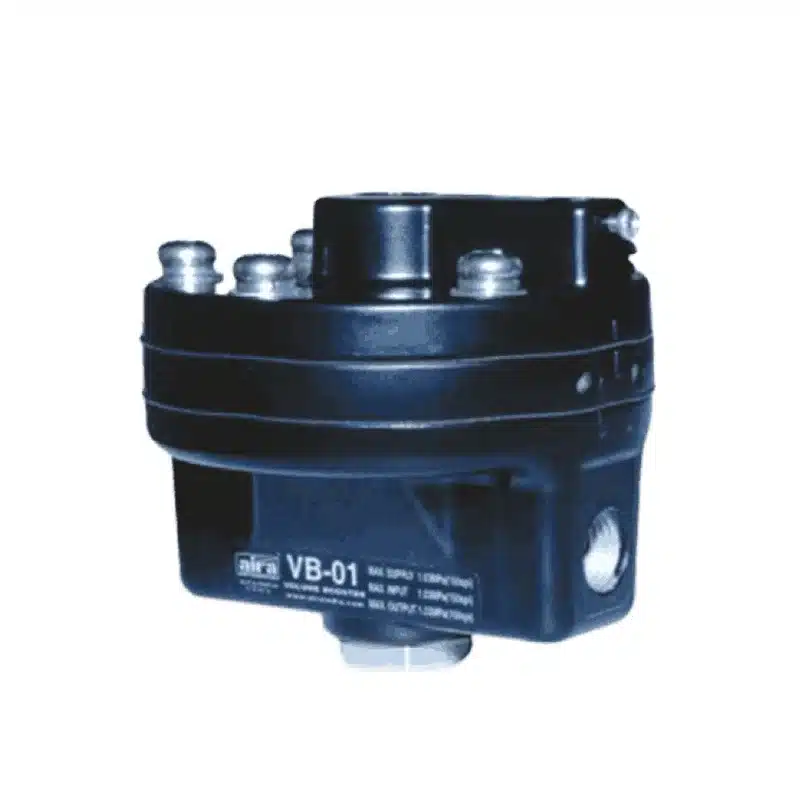

“aira” Offers Volume Booster Relay VB – 01, VB – 02, VB – 03 Used In Pneumatic Control Valve Which Receives Positioners Output Single And Supply Air Pressure Actuators For Reduce Response And Adjusting Time

Specification & Standard

Specification Details
Size Range As Per Standard
Temperature Range -20° C ~ 70° C (Standard Temp.), -20° C ~ 120° C (High Temp.), -40° C ~ 70° C (Low Temp.)
Max Supply Pressure Max.10 BAR
Max Output Pressure Max 7 BAR
Body Aluminium Die Cast / S.S.304 / S.S.316
Signal Connection 1/4”, 1/2” & 3/4”
Categories: , ,

Features & Benefits

1 – Supplies Constant Air Pressure At The Rate Of 1 : 1

2 – By – Passing Control Enhance Safety Of Control Valve

3 – Responses To Slight Changes In Input Signal, Which Increases Accuracy Of Output Of Air Pressure To Actuator

4 – Built – In 100 Mesh Screen Filters Dusts In The Air

Size Range

As Per Standard
Temperature Range

-20° C ~ 70° C (Standard Temp.), -20° C ~ 120° C (High Temp.), -40° C ~ 70° C (Low Temp.)
Working Pressure

Max.10 BAR
