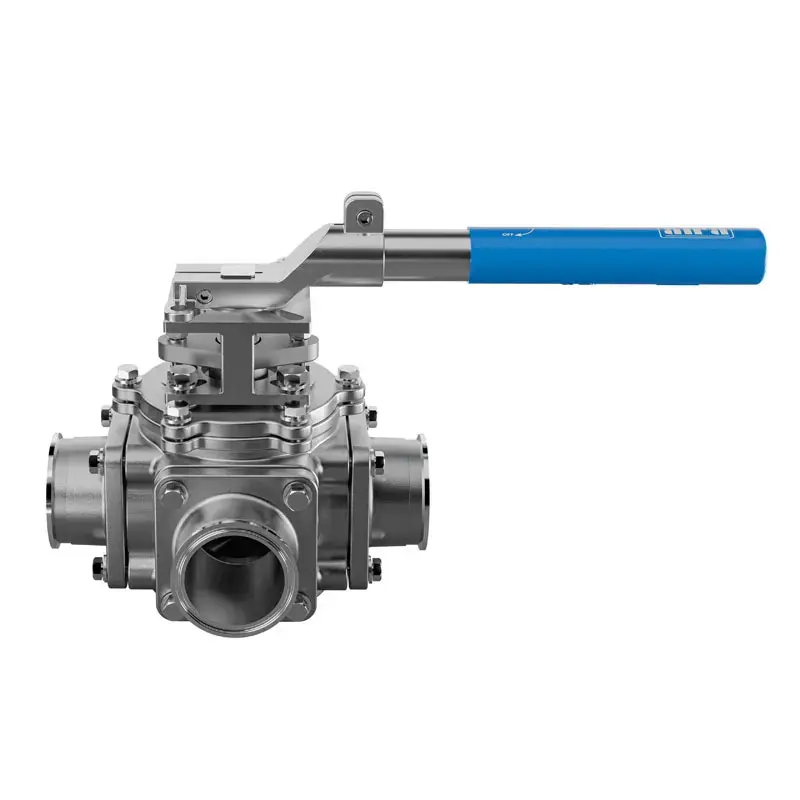

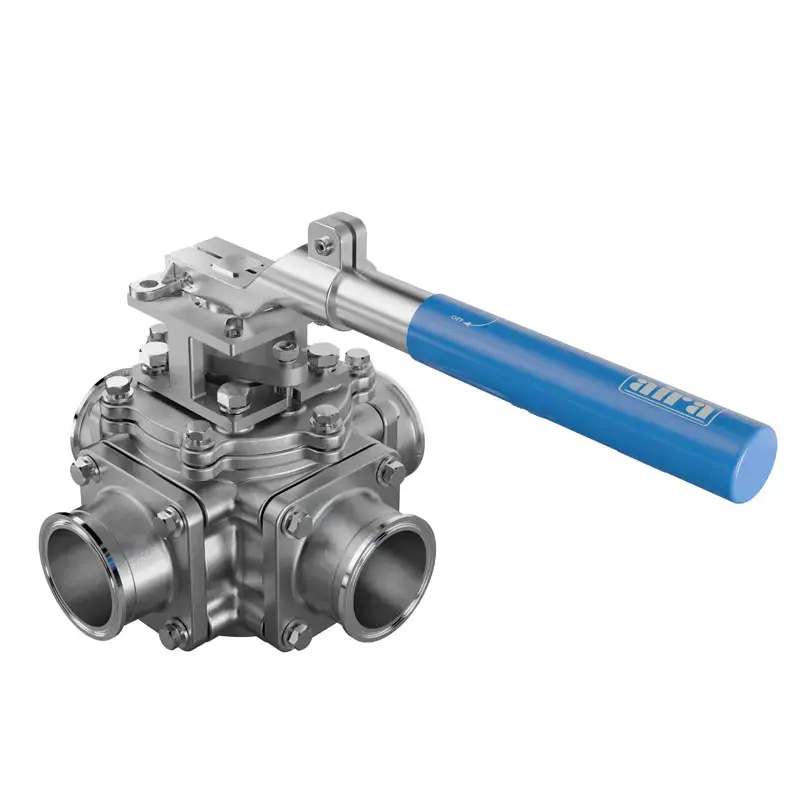

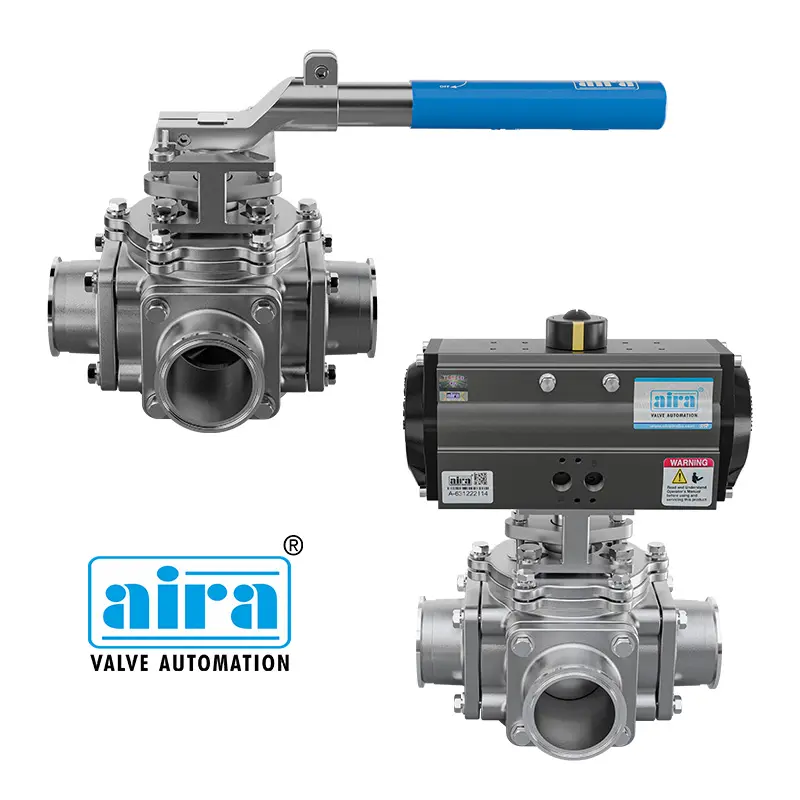

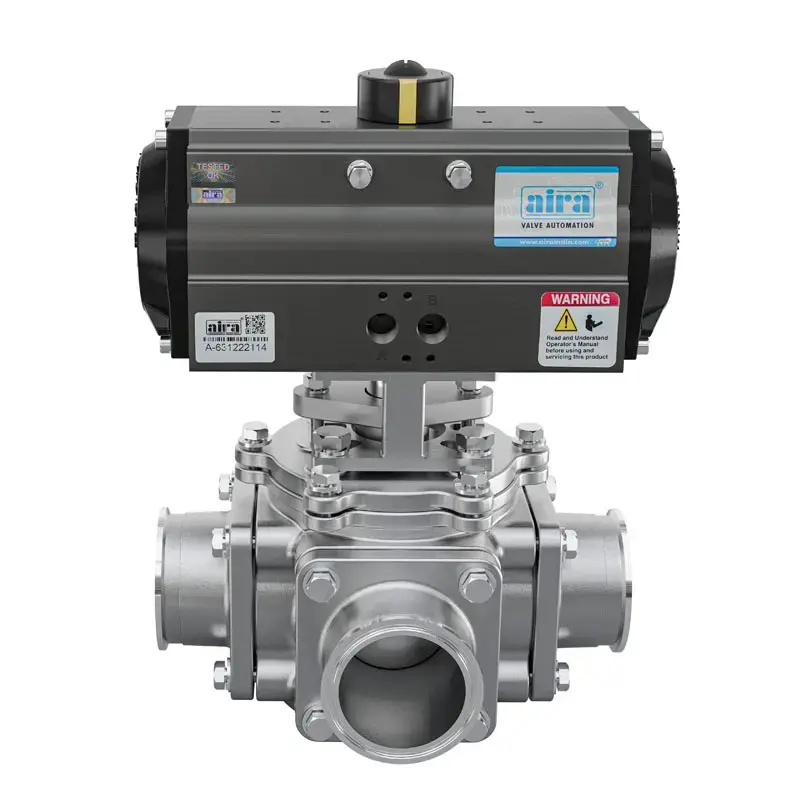

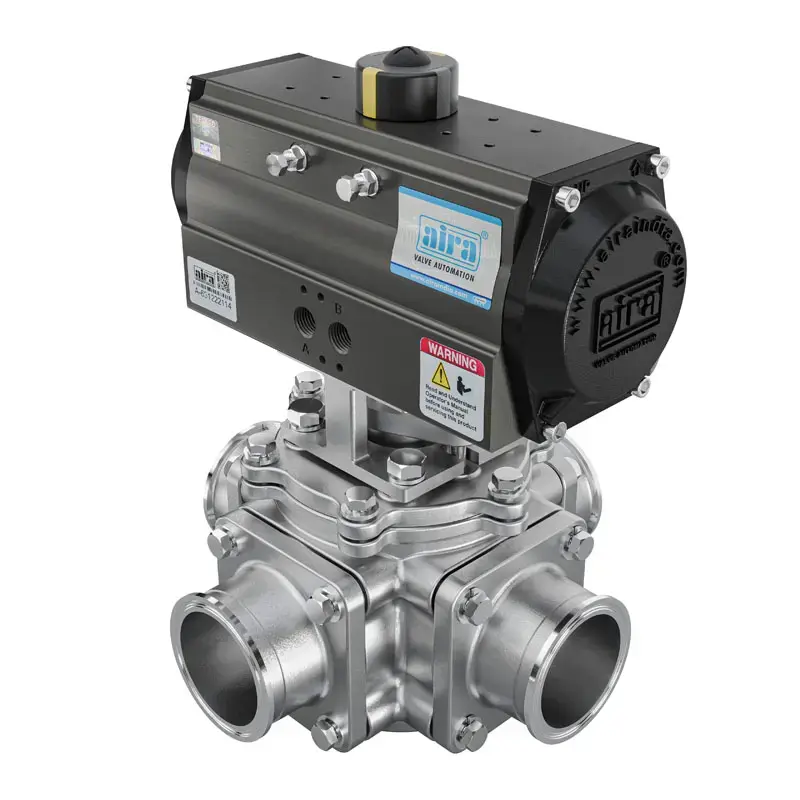

“aira” Offers Pneumatic Rotary Actuator Operated “3,4 & 5 Way” Multi Port Design Investment Casting CF8/ CF8M/ WCB Trunnion Mounted Ball Valve, Engineered For Multiple Diverting/ Mixing Operations In The Down Stream. Type : “T” Port/ “L” Port/ “X” Port In Full Bore/ Reduce Bore.
Specification & Standard
| Specification | Details |
|---|---|
| Design & Manufacturer | ASME B16.34 BS/ EN ISO 17292 |
| Valve Face To Face Dimension | As Per Manufacturing |
| Inspection And Testing | API 598/ ISO-5208/ BS EN 12266-1 |
| Flange Standard Conformity | ASME B16.5 Class 150 |
| End Connection | TC End (Triclover End) |
| Size Range | 1/2″ To 4″ Triclover End |
| Temperature Range | -50°C To 300°C For Soft Seated Valves. Contact Works For Special Requirement |
| Pressure Class | 150#, PN 10 |
| Media | Air/ Water/ Oil & Gas |
| Body Material | WCB, CF3, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONEL, DUCTILE IRON, S.G IRON |
| Ball Material | CF3, CF3M, CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX |
| Ball Type | Hollow/ Solid Ball |
| Stem Material | CF3, CF3M, CF8, CF8M, 410, DUPLEX 2205, DUPLEX 2507, MONEL, 17-4 PH |
| Seat Material | PTFE, RPTFE, MODIFIED PTFE, AIRA-250 |
| Certification | Design CE Approved, POD, Fire Safe Design |
