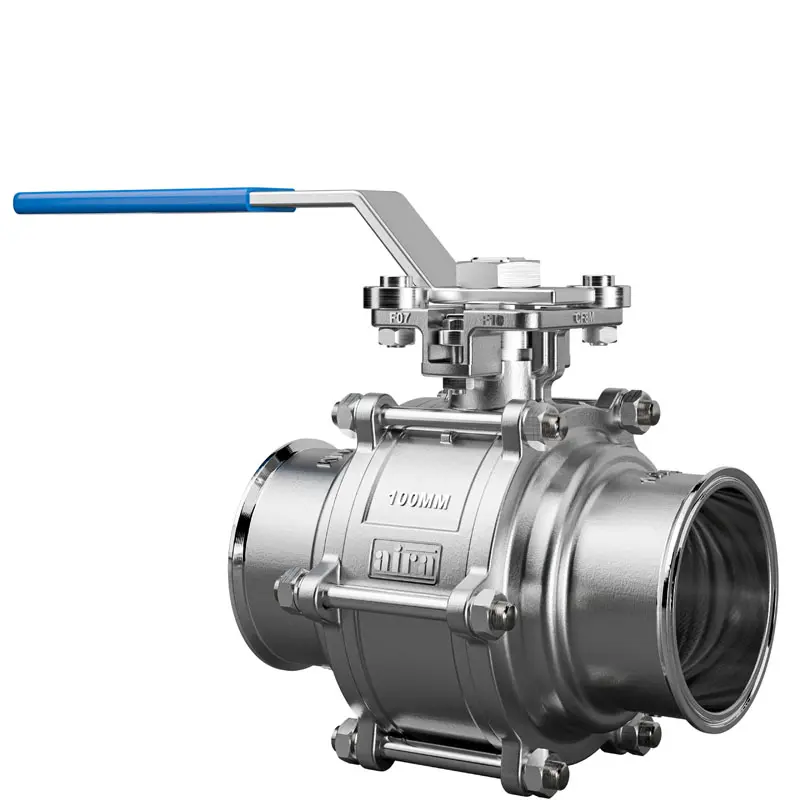

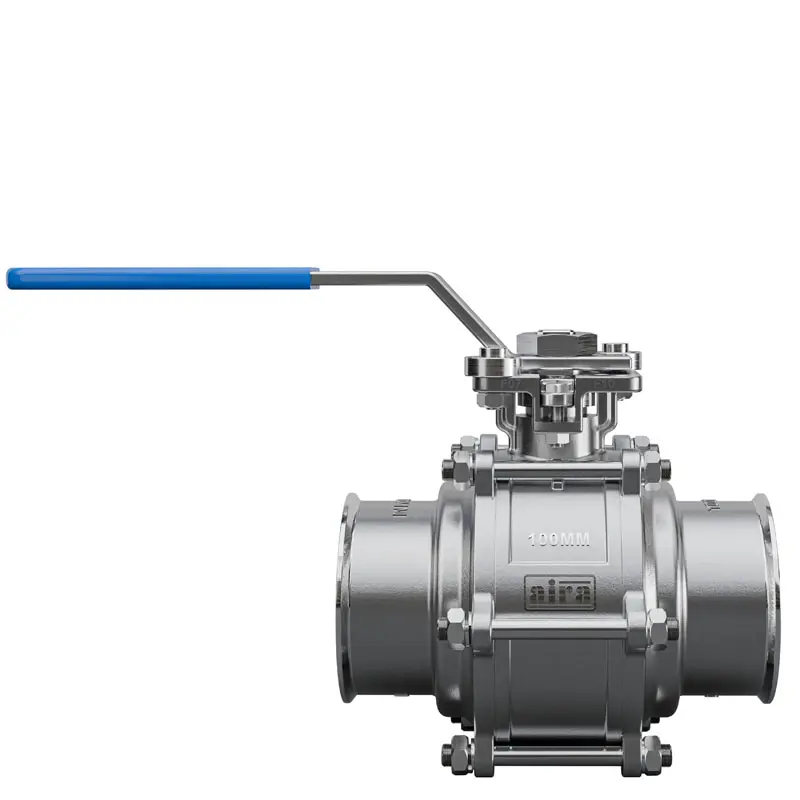

Aira Euro Make Hand lever operated “3 Piece Design CE APPROVED” 2 Way Ball Valve with Triclover Ends with PTFE Seals.
| Specification | Details |
|---|---|
| Design & Manufacturer | ASME B16.34/ BS EN ISO 2852 |
| Valve Face To Face Dimension | As Per Manufacturing |
| Inspection & Testing | API 598/ ISO-5208/ BS EN 12266-1 |
| Size Range | 1/4″ To 4″ |
| Temperature Range | -25°C to 180°C for Soft Seated Valves. Contact Works for Special Requirements -195°C, -45°C, +300°C (on Request) |
| Pressure Class | 150# |
| Stem Material | AISI 304, AISI 316, AISI 304L, AISI 316L, DUPLEX 2205, DUPLEX 2507 |
| Seat Material | PTFE, RPTFE, CFT, GFT, MODIFIED PTFE, AIRA-250, NYLON, DEVLON, PEEK |
| Leakage Class | ISO 5208 Class VI / B16.104, ANSI FCI 70-2 (BUBBLE TIGHT SHUTOFF) |
| End Connection | Tri-clover Ends |
| Media | Air/ Water/ Oil & Gas |
| Body Material | CF8, CF8M, CF3M, SS 304L, DUPLEX |
| Ball Material | CF8, CF8M, HAST ALLOY, DUPLEX, CF3M |
| Ball Type | Solid |
| Certification | Design CE Approved, SIL3 Approved, IBR Approved, POD Approved & Fire Safe Approved |
