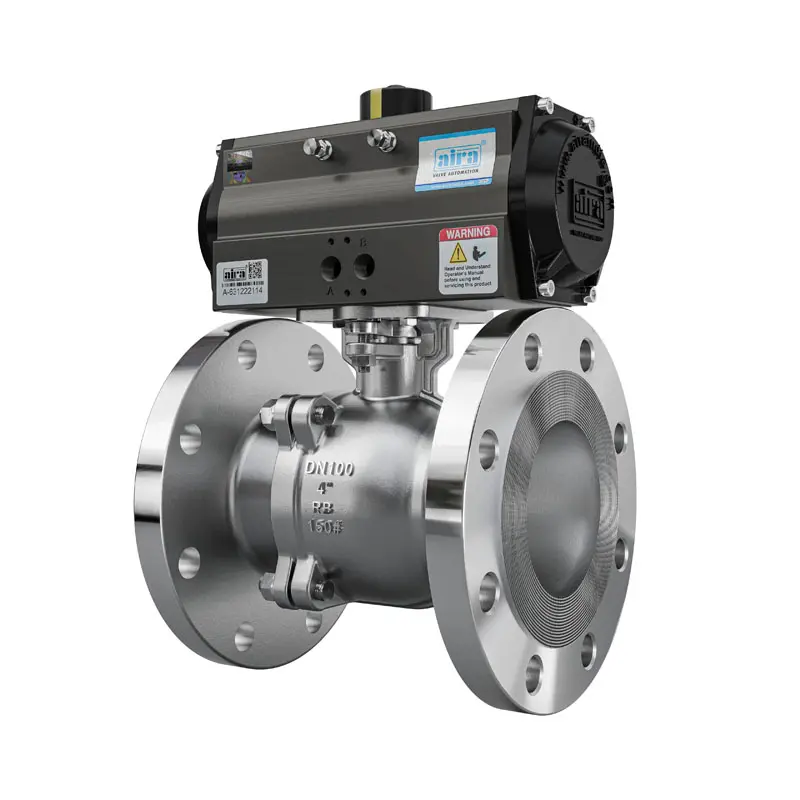

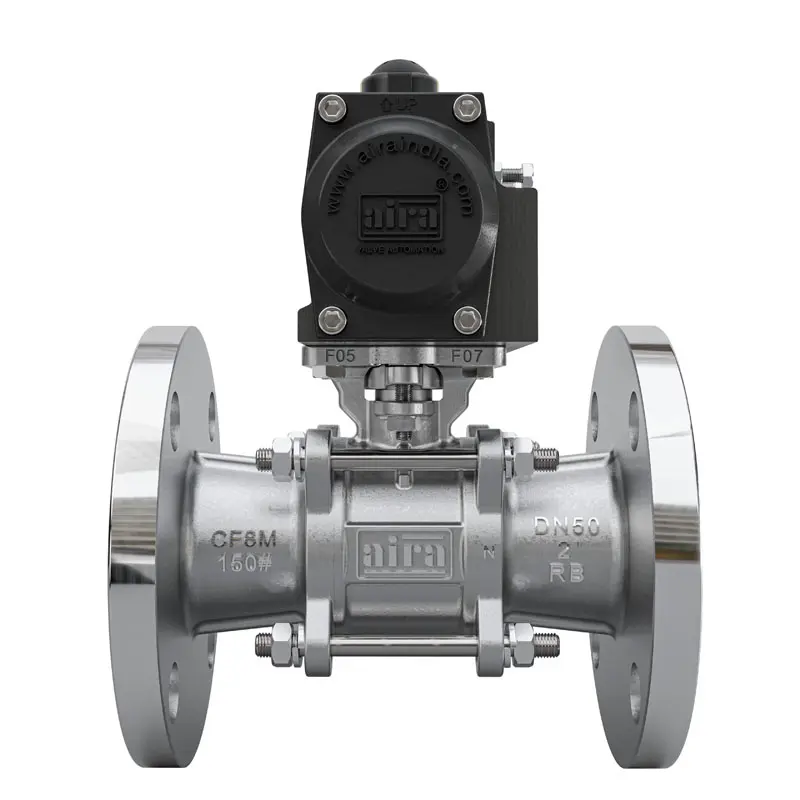

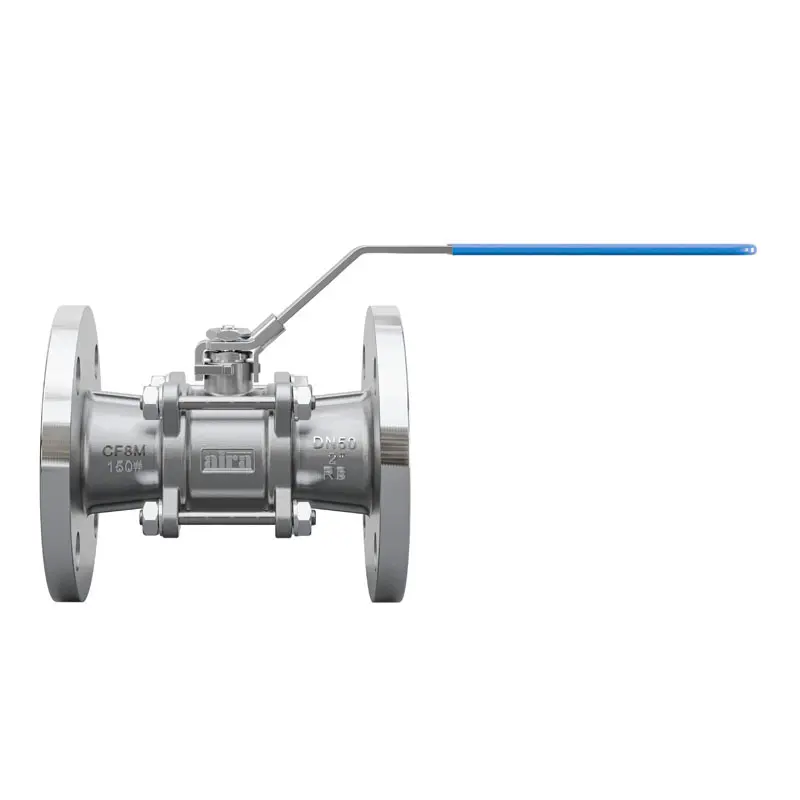

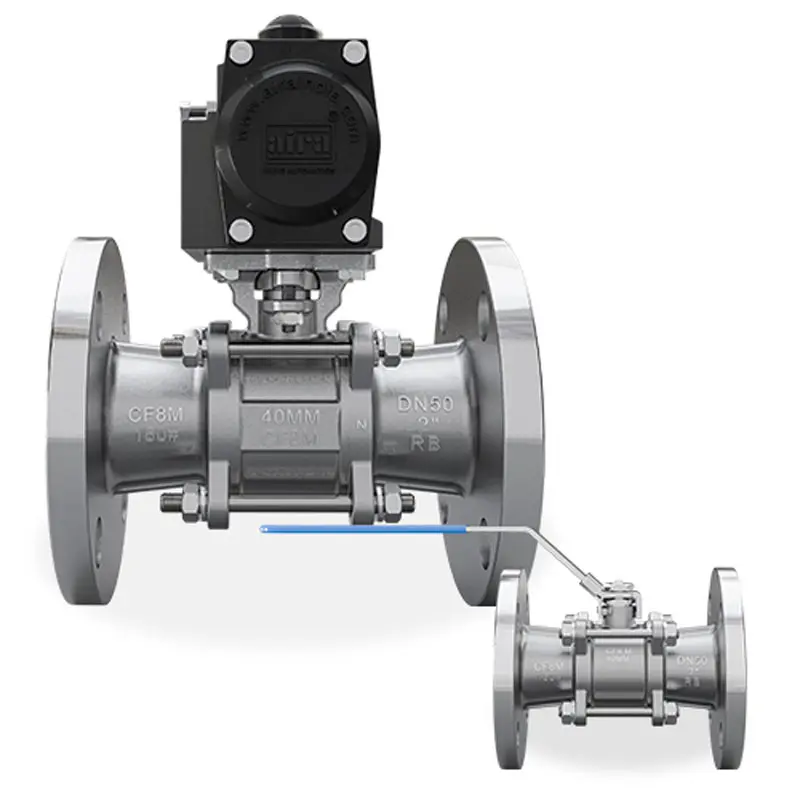

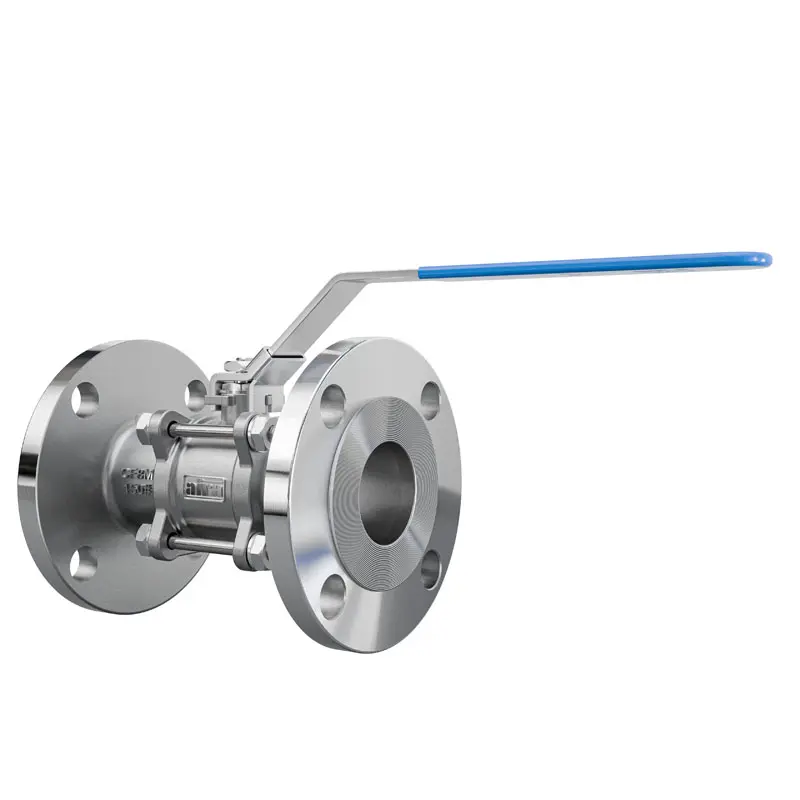

“aira” Offers Two Piece and Three Piece Design Reduce Bore Ball Valve, Engineered For Multiple On/ Off Operations In The Down Stream.
| Specification | Details |
|---|---|
| Design & Manufacturer | ASME B16.34 / BS EN ISO 17292 |
| Valve Face To Face Dimension | ASME B16.10 / BS EN ISO 17292 |
| Inspection & Testing | API 598 / ISO-5208 / BS EN 12266-1 |
| Leakage Class | ISO 5208 Class VI / FCI – 70 – 2 / ASME 16.104 / BUBBLE TIGHT SHUTOFF |
| End Connection | ASME B16.5 CLASS 150 |
| Size Range | 3/4″ To 14″ Flanged |
| Temperature Range | -25°C to 180°C for Soft Seated Valves. Contact Works for Special Requirement -195°C, -45°C, +300°C (on Request) |
| Pressure Class | 150#, 300# |
| Media | Air / Water / Oil & Gas |
| Body Material | WCB, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONEL |
| Ball Material | CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M |
| Ball Type | Hollow & Solid |
| Stem Material | AISI 410, AISI 304, AISI 316, AISI 304L, AISI 316L, DUPLEX 2205, DUPLEX 2507, MONEL |
| Seat Material | PTFE, RPTFE, CFT, GFT, MODIFIED PTFE, AIRA-250, NYLON, DEVLON, PEEK |
| Flange Drilling | ASME B16.5 Class 150# / 300# / DIN / JIS |
| Certification | Design CE Approved, SIL3 Approved, IBR Approved, POD Approved & Fire Safe Approved |
