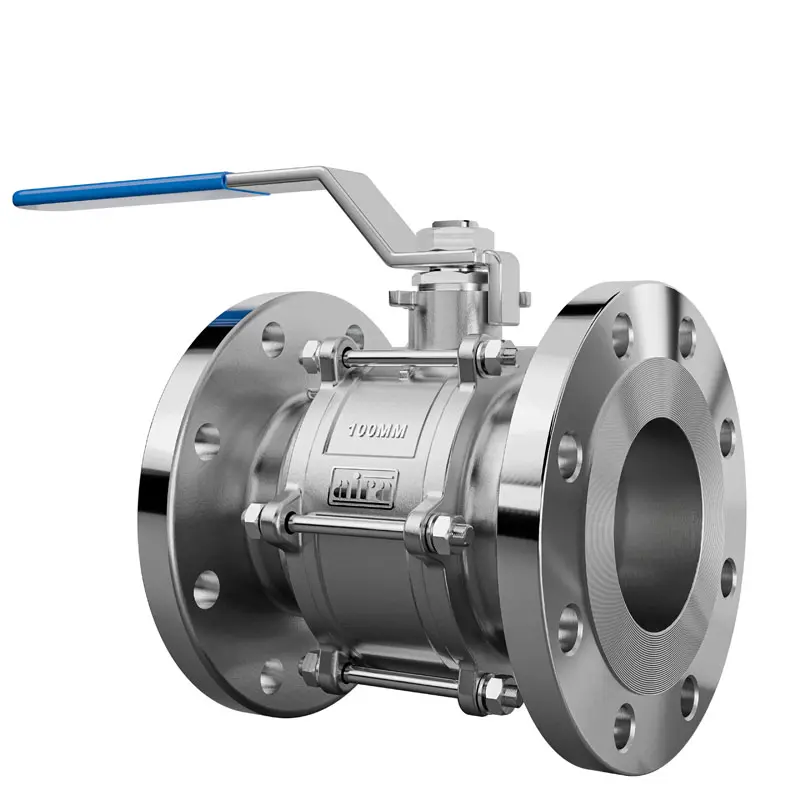

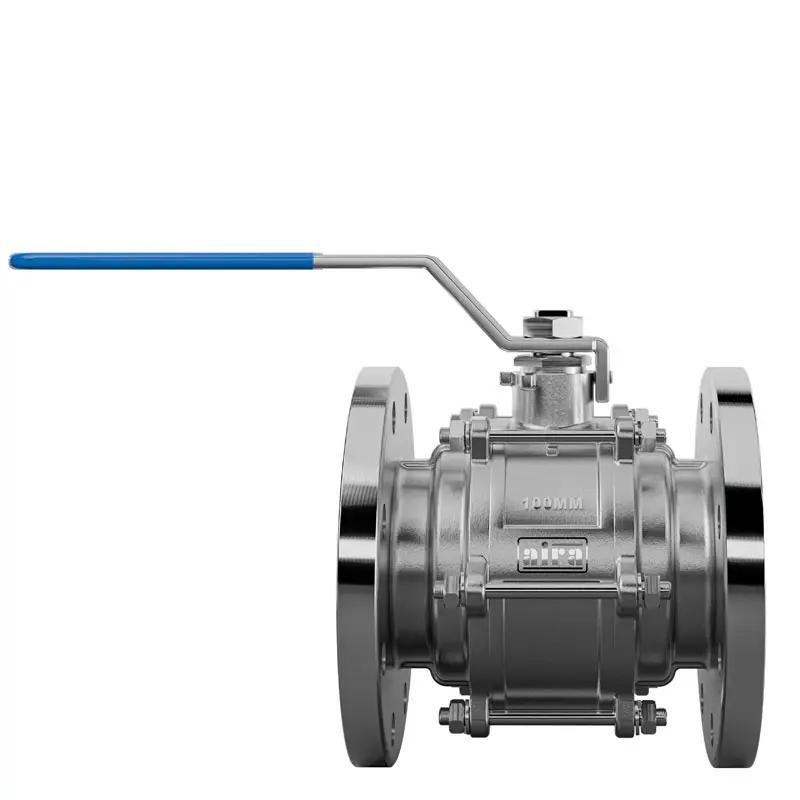

“aira” Offers Investment Casting WCB / CF8 / CF8M / CF3M Ball Valve Floating In Three Piece Design. Engineered For Multiple On/Off Operations In The Down Stream.
| Specification | Details |
|---|---|
| Design & Manufacturer | ASME B16.34 / BS EN ISO 17292 |

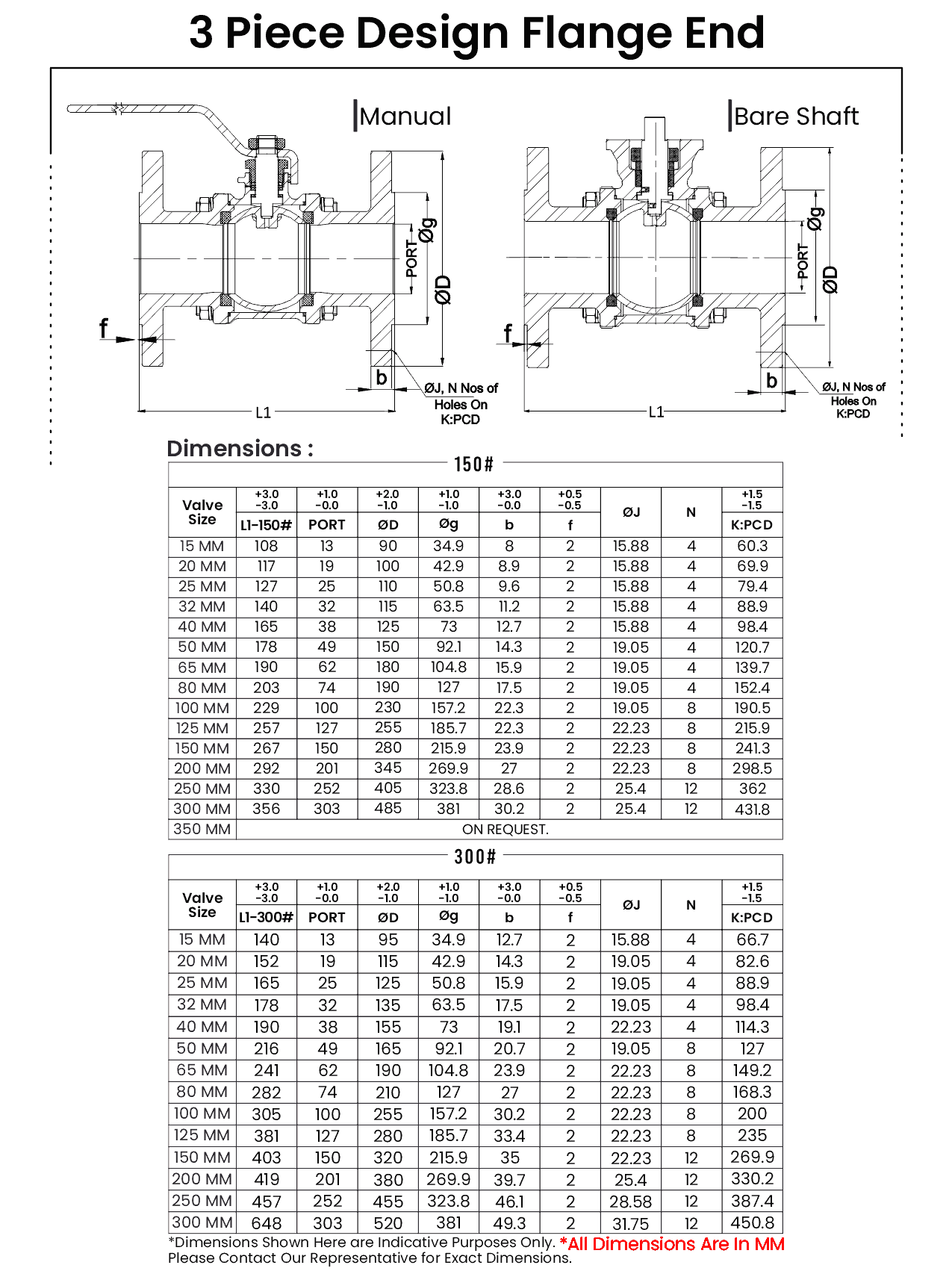

| Valve Face To Face Dimension | ASME B16.10/ 150# |
| Inspection & Testing | API 598/ ISO-5208/ BS EN 12266-1 |
| Size Range | 1/2″ to 14″ |
| Temperature Range | -50°C To 300°C For Soft Seated Valves (Contact Works For Special Requirements On Request) |
| Ball Material | CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M, INCONEL |
| Ball Type | Hollow & Solid |
| Certification | Design CE Approved, SIL3 Approved, IBR Approved, POD Approved & Fire Safe Approved |
| Leakage Class | ISO 5208 Class VI/ ASME B16.104/ ANSI FCI 70-2 (Bubble Tight Shutoff) |
| End Connection | ASME B16.5 CLASS 150/300 FOR FLANGED |
| Pressure Class | 150# |
| Media | Air/ Water/ Oil & Gas Etc. |
| Body Material | CF8, CF8M, CF3M, SS 304L, WCB, DUCTILE IRON (DI), DUPLEX, HAST ALLOY, MONEL |
| Stem Material | AISI 410, AISI 304, AISI 316, AISI 304L, AISI 316L, DUPLEX 2205, DUPLEX 2507, MONEL |
| Seat Material | PTFE, RPTFE, CFT, GFT, MODIFIED PTFE, AIRA-250, NYLON, DEVLON, PEEK |
| Flange Drilling | ASME B16.5 Class 150#/ 300 #/ Din/ Jis |
