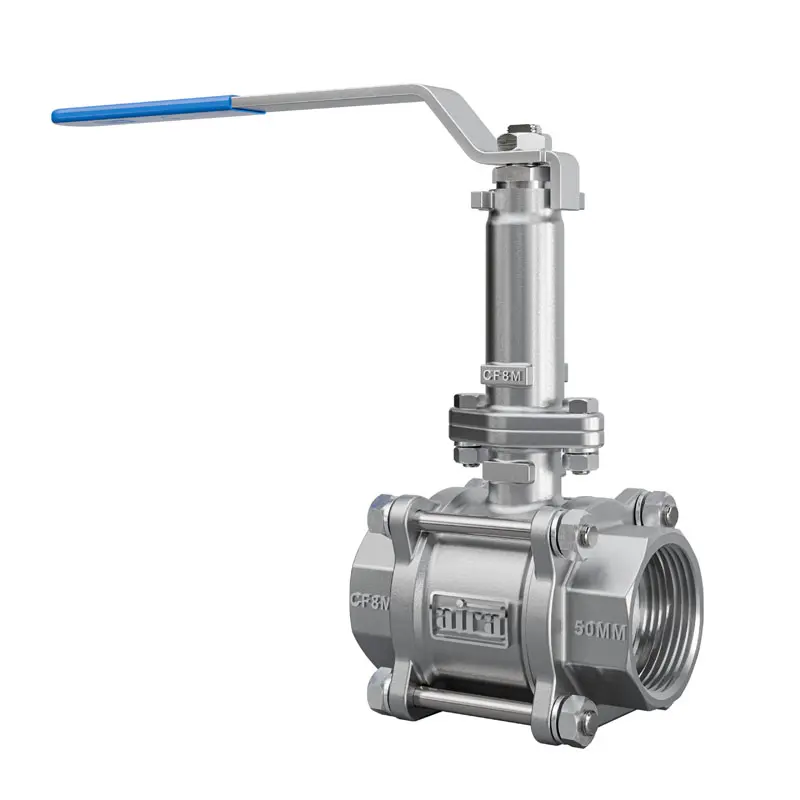

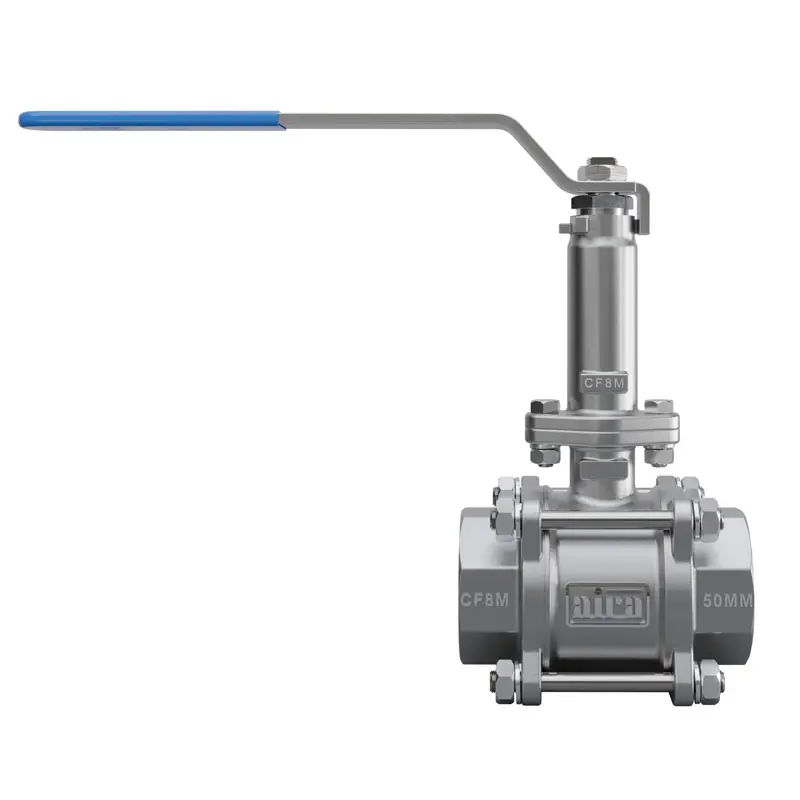

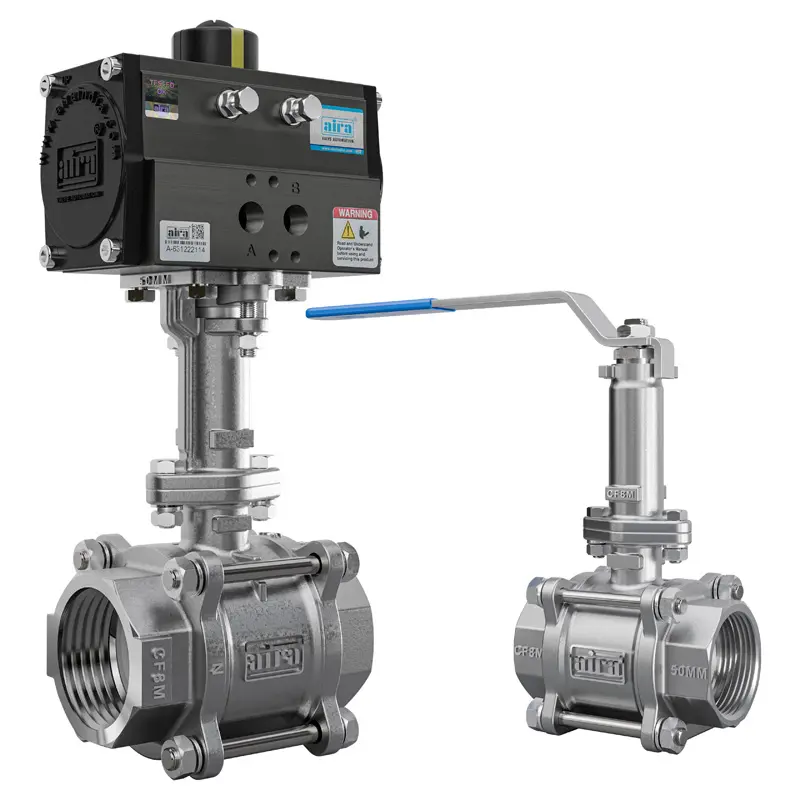

3 Piece Extended Shaft Screwed End Ball Valve
3 Piece Extended Shaft Screwed End Ball Valve - Image 2
3 Piece Extended Shaft Screwed End Ball Valve - Image 3
3 Piece Extended Shaft Screwed End Ball Valve - Image 4
3 Piece Extended Shaft Screwed End Ball Valve - Image 5
,

3 Piece Extended Shaft Screwed End Ball Valve

Aira Euro Automation is one of the top Extended Shaft 2 Way Ball Valve manufacturers in India. This Hand Lever operated 3 Piece Designed ball valve available with screwed and flanged end connections.

Specification Details
Size Range 1/2″ To 4″ Screwed
Temperature Range PTFE: Upto 180°C / PEEK: 250°C, RPTFE/ TFM -220°C
Working Pressure Up to 10 Kg/Cm²

We Manufacturing Hand Lever Operated 3 Piece Design CE Approved Extended Shaft 2 Way Ball Valve in Screwed and Flanged 150# with Hollow Ball PTFE Seals.

Specification & Standard

Specification Details
Design & Manufacturer ASME B16.34/ BS EN ISO 17292
Valve Face To Face Dimension ASME B16.10
Inspection & Testing API 598/ ISO-5208/ BS EN 12266-1
Size Range 1/2″ To 4″ Screwed
Temperature Range -50°C To 300°C For Soft Seated Valves. Contact Works For Special Requirement
Pressure Class 150#, 300#
Stem Material AISI 410, SS 304, SS 316, SS 304L, SS 316L, DUPLEX 2205, DUPLEX 2507, MONEL
Seat Material PTFE, RPTFE, CFT, GFT, MODIFIED PTFE, AIRA-250, NYLON, DEVLON, PEEK
Leakage Class ISO 5208 Class VI/ FCI – 70 – 2/ ASME 16.104/ BUBBLE TIGHT SHUTOFF
End Connection ISO 7-1 FOR BSPT/ BSP/ ASME B1.201 FOR NPT FOR S/E ASME 16.11 FOR SOCKET WELD
Media Air/ Water/ Oil & Gas
Body Material CF8, CF8M, CF3M, SS 304L, WCB, DUPLEX, HAST ALLOY, MONEL
Ball Material CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M
Ball Type Hollow & Solid
Certification Design CE Approved & POD Approved
Categories: ,

Features & Benefits

1 – Three Types Of Extension Bonnet Lengths Available To Optimize The Location Of The Gland Packing At Ambient Temperature Thus Preventing Freeze-damage By Low Temperature Fluid.

2 – Cavity Pressure Self Relief Construction In Valve.

3 – Chevron Seal Design Minimizes Leakage After Thousand Of Cycles.

4 – Low Operating Torque For Smooth Operations.

5 – Fire Safe Design Available For Flammable Applications.

6 – Fugitive Emissions Control For Flammable And Non-flammable Applications.

7 – Best For Cryogenic Application.

Dimension Table

Size Range

1/2" To 4" Screwed
Temperature Range

PTFE : Upto 180°C, PEEK : 250°, RPTFE, TFM -220°C
Working Pressure

Up to 10 Kg/Cm²
