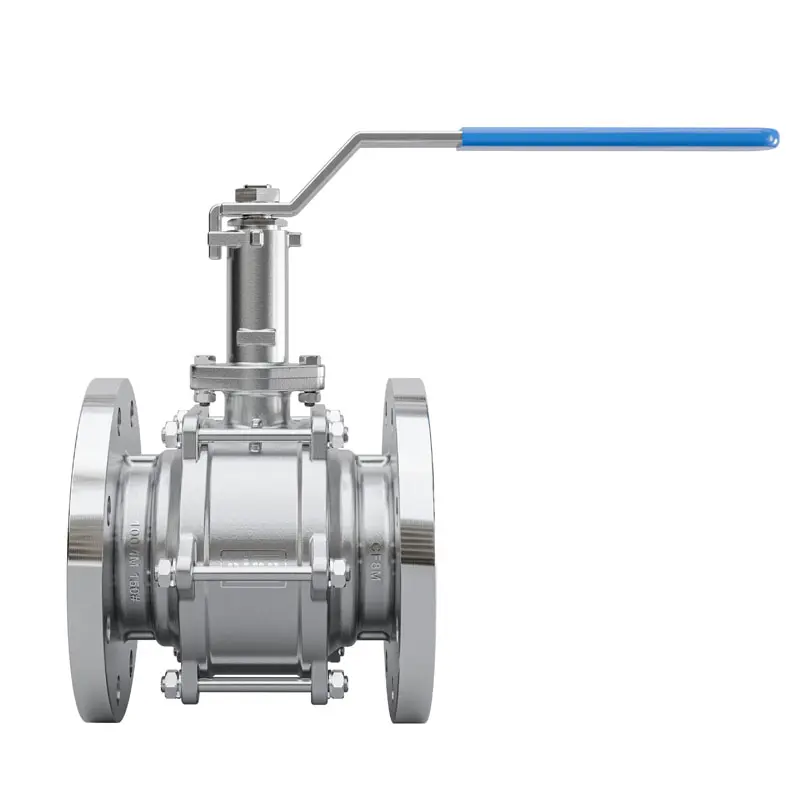

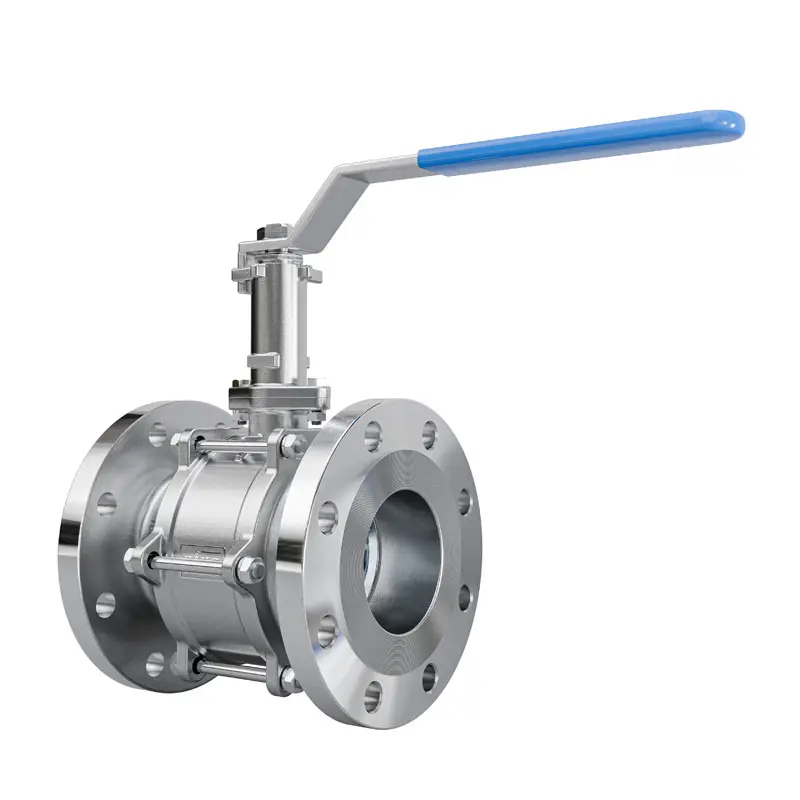

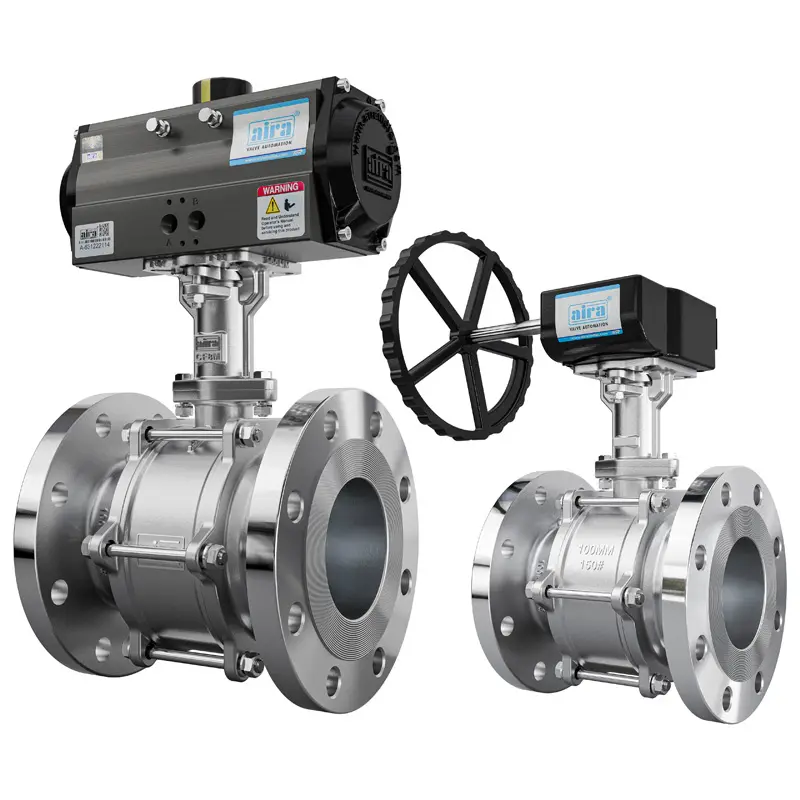

3 Piece Extended Shaft Flanged End Ball Valve

3 Piece Extended Shaft Flanged End Ball Valve - Image 2

3 Piece Extended Shaft Flanged End Ball Valve - Image 3

3 Piece Extended Shaft Flanged End Ball Valve

Aira Euro Automation is a well known Pneumatic 3 Piece Design Extended Shaft Ball Valve manufacturer in India. We have a wide range of industrial ball valves to fulfill your all requirements.

Specification	Details
Size Range	1/2″ To 4″ Flanged
Temperature Range	PTFE: Up to 180°C / PEEK: 250°C / RPTFE, TFM: -220°C
Working Pressure	Up to 10 Kg/Cm²

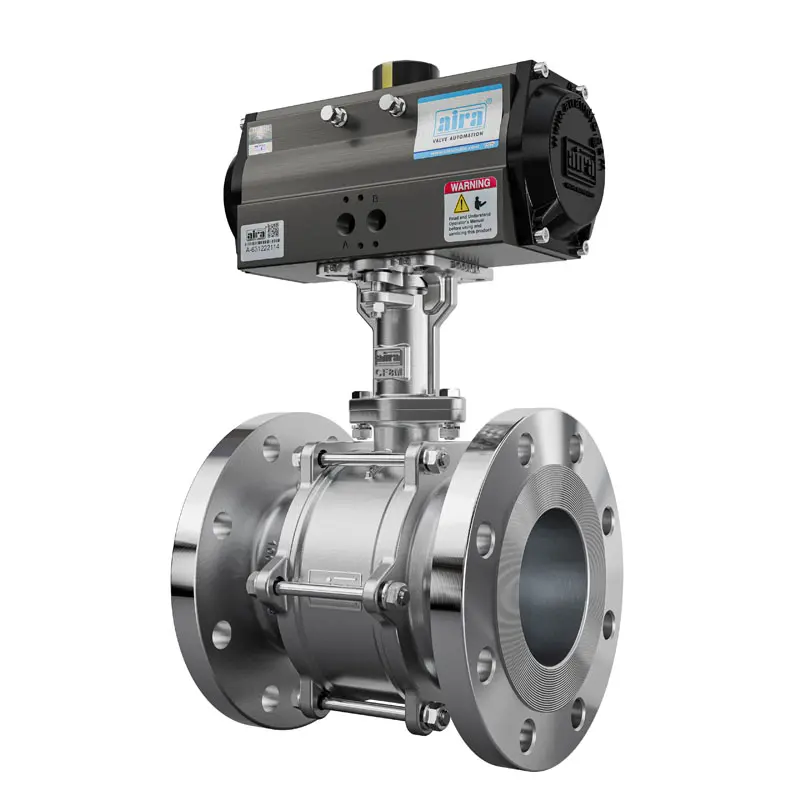

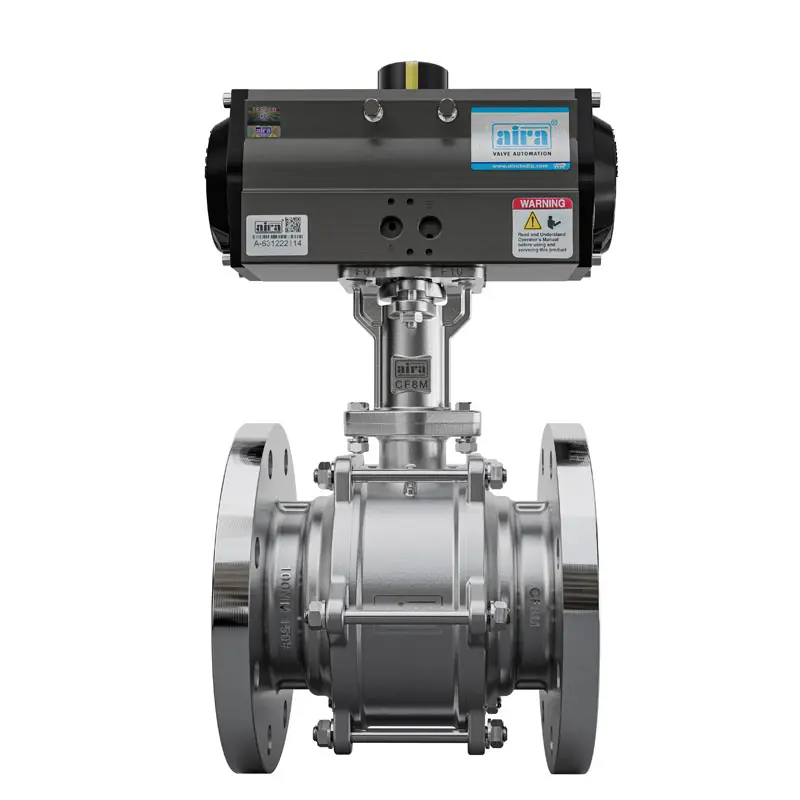

Aira Euro Automation manufactured Pneumatic Actuator Operated 3 Piece Design CE Approved 100MM Extended Shaft 2 Way Ball Valve in Screwed & Flanged 150# with Hollow Ball type PTFE Seals.

Specification	Details
Design & Manufacturer	ASME B16.34 / BS EN ISO 17292
Valve Face To Face Dimension	ASME B16.10
Inspection & Testing	API 598 / ISO-5208 / BS EN 12266-1
Size Range	1/2″ To 4″ Flanged
Temperature Range	-50°C To 300°C For Soft Seated Valves (Special Requirements on Request)
Ball Material	CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M
Ball Type	Solid
Flange Drilling	ASME B16.5 Class 150# / 300# / DIN / JIS
Leakage Class	ISO 5208 Class VI / FCI – 70 – 2 / ASME 16.104 / Bubble Tight Shutoff
End Connection	ISO 7-1 for BSPT / BSP / ASME B1.201 for NPT / ASME 16.11 for Socket Weld
Pressure Class	150#, 300#
Media	Air / Water / Oil & Gas
Body Material	CF8, CF8M, CF3M, SS 304L, WCB, DUPLEX, HAST ALLOY, MONEL
Stem Material	AISI 410, SS 304, SS 316, SS 304L, SS 316L, DUPLEX 2205, DUPLEX 2507, MONEL
Seat Material	PTFE, RPTFE, CFT, GFT, MODIFIED PTFE, AIRA-250, NYLON, DEVLON, PEEK
Certification	Design CE Approved & POD Approved

Categories: 3 Piece Ball Valves, Ball Valves

Features & Benefits

1 – Three Types Of Extension Bonnet Lengths Available To Optimize The Location Of The Gland Packing At Ambient Temperature Thus Preventing Freeze-damage By Low Temperature Fluid.

2 – Chevron Seal Design Minimizes Leakage After Thousand Of Cycles.

3 – Low Operating Torque For Smooth Operations.

4 – Fire Safe Design Available For Flammable Applications.

5 – Fugitive Emissions Control For Flammable And Non-flammable Applications.

6 – Best For Cryogenic Application.
