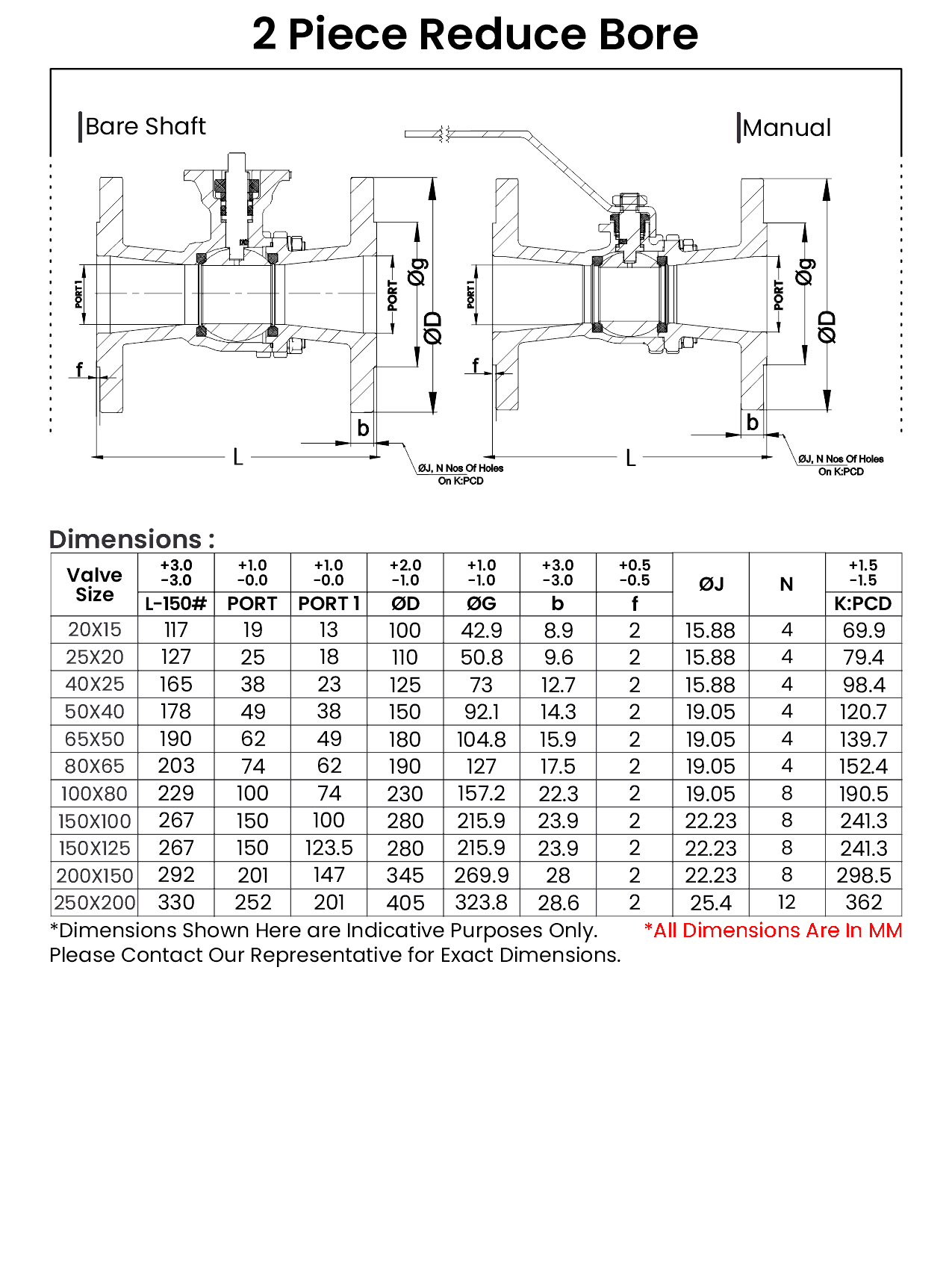

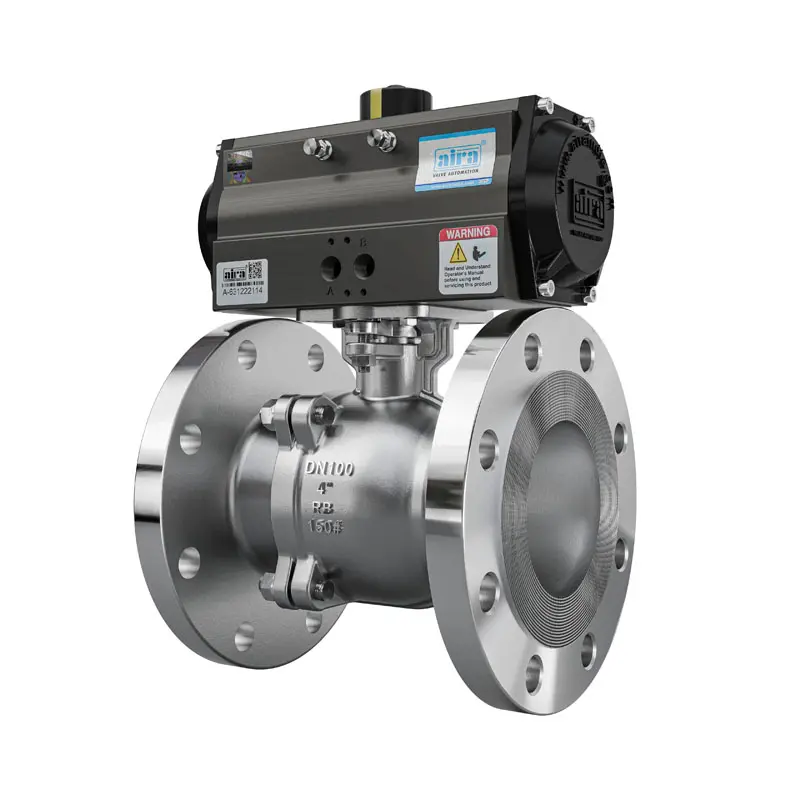

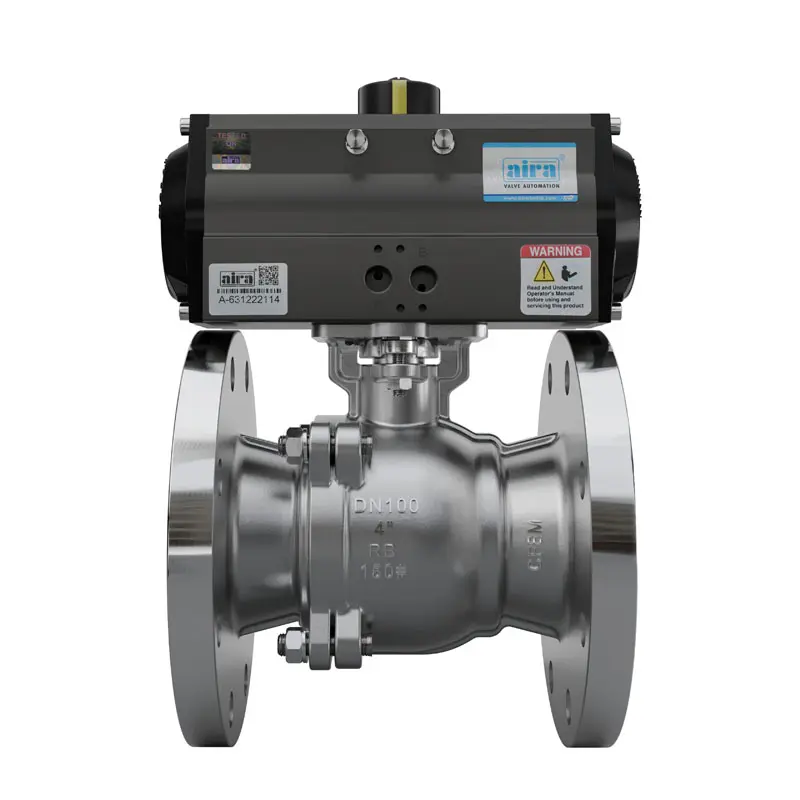

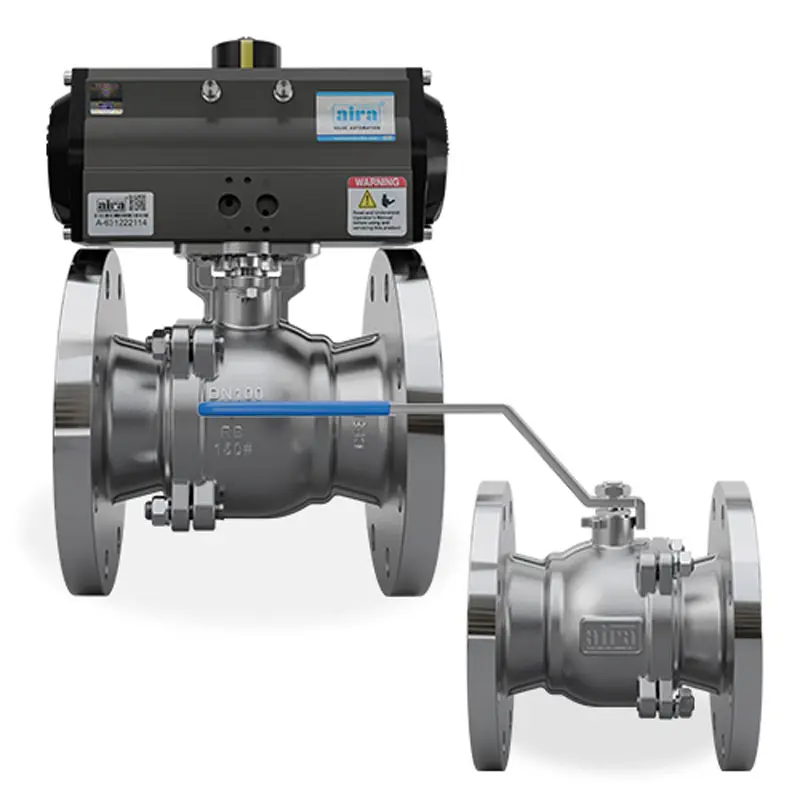

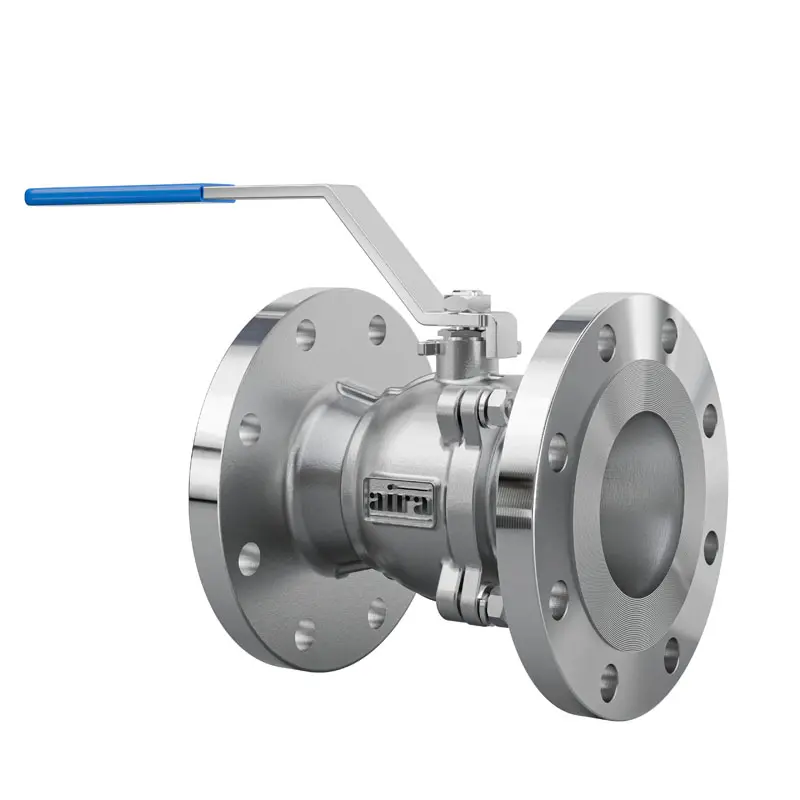

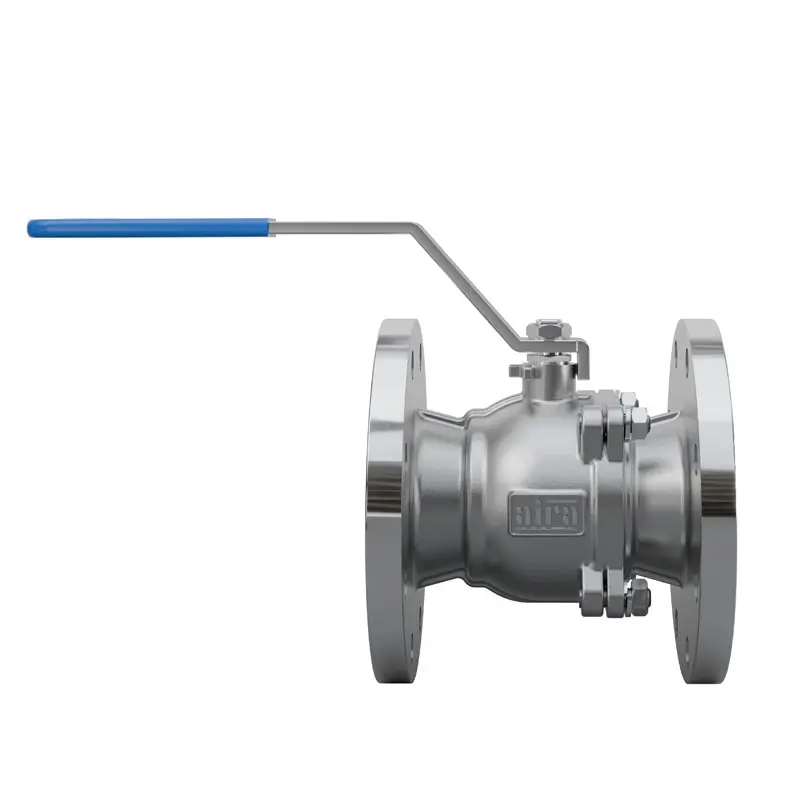

“Aira” Offers Two Piece and Three Piece Design Reduce Bore Ball Valve, Engineered For Multiple On/ Off Operations In The Down Stream.
| Specification | Details |
|---|---|
| Design & Manufacturer | ASME B 16.34 / BS EN ISO 17292 |
| Valve Face To Face Dimension | ASME B 16.10 / BSEN ISO 17292 |
| Inspection And Testing | API 598 / ISO-5208 / BS EN 12266-1 |
| Size Range | 3/4″ To 14″ Flanged 150# |
| Temperature Range | -50°C To 300°C For Soft Seated Valves. Contact Works For Special Requirement |
| Ball Material | CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M |
| Ball Type | Hollow, Reduce, Solid |
| Flange Drilling | ASME B 16.5 Class 150# / 300# / DIN / JIS |
| Leakage Class | ISO 5208 Class VI / FCI – 70 – 2 / ASME B 16, 16.104 (BUBBLE TIGHT SHUT OFF) |
| End Connection | ASME B 16.5 CLASS 150 FOR FLANGE |
| Pressure Class | 150# |
| Media | Air / Water / Oil & Gas |
| Body Material | CAST IRON (CI), DUCTILE IRON (DI), S.G IRON (SGI), WCB, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONEL |
| Stem Material | AISI 410, SS 304, SS 316, SS 304L, SS 316L, Duplex 2205, Duplex 2507, Monel |
| Seat Material | PTFE, RPTFE, CFT, GFT, MODIFIED PTFE, AIRA-250, NYLON, DEVLON, PEEK |
| Certification | Design CE Approved, SIL3 Approved, IBR, POD, Fire Safe |
