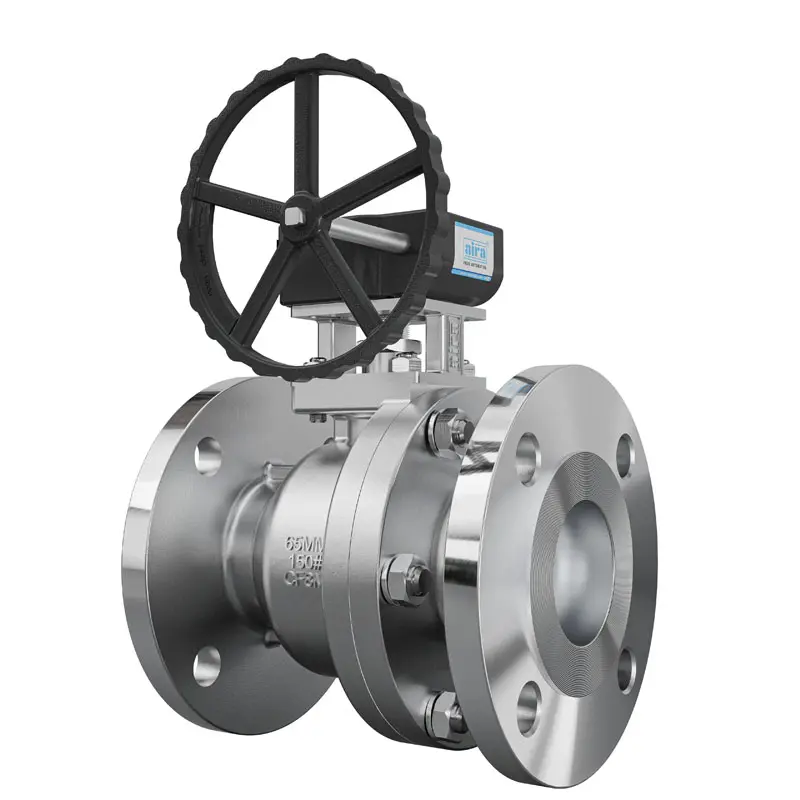

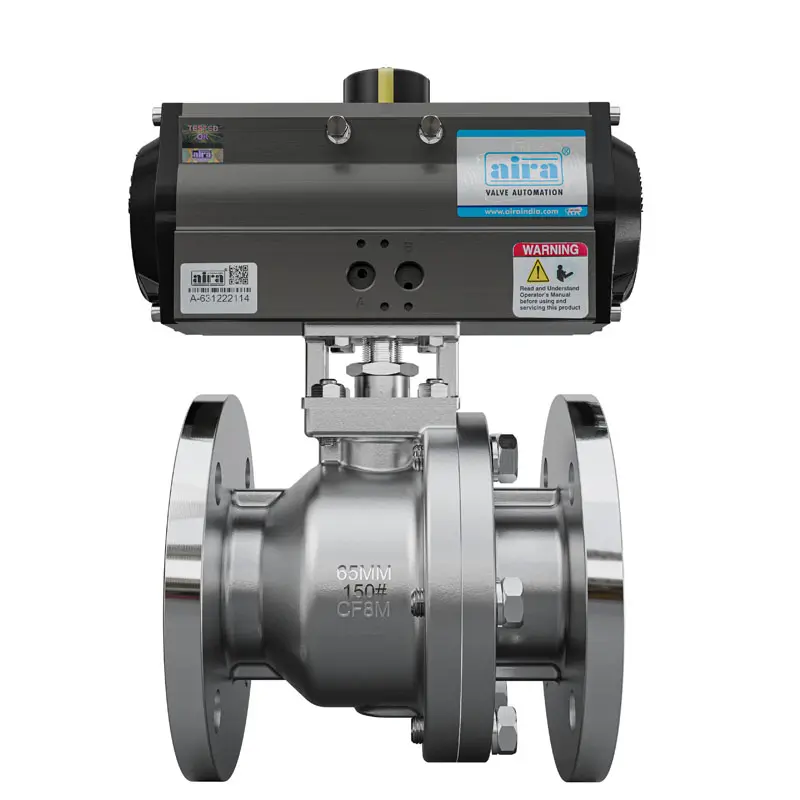

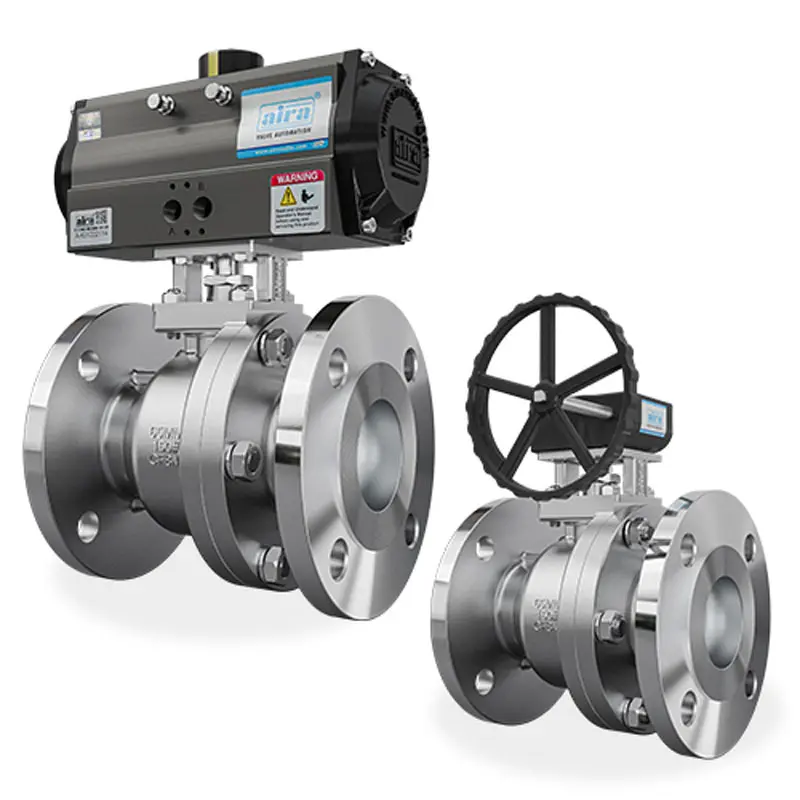

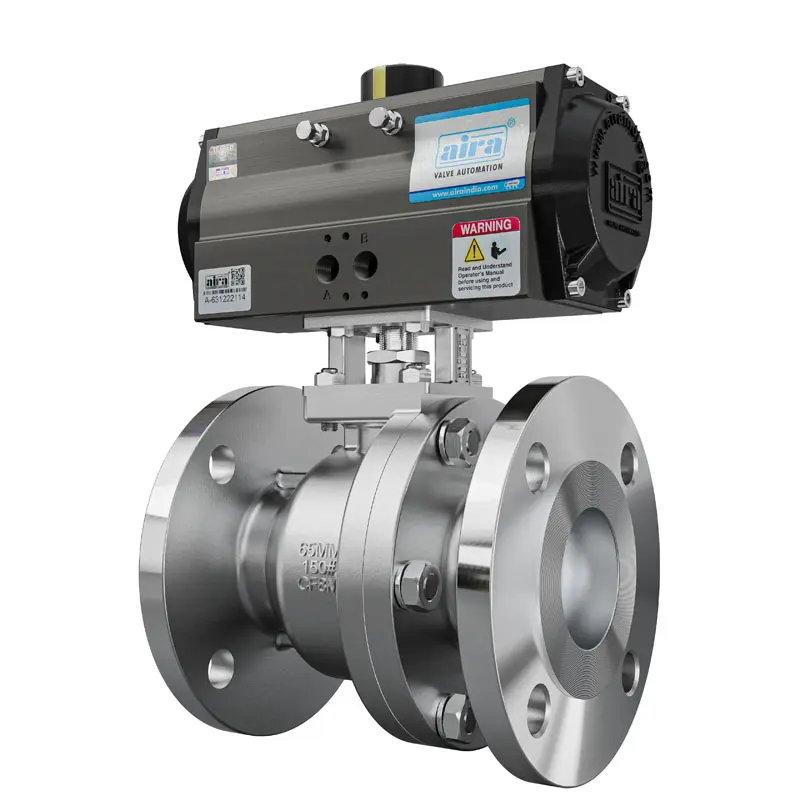

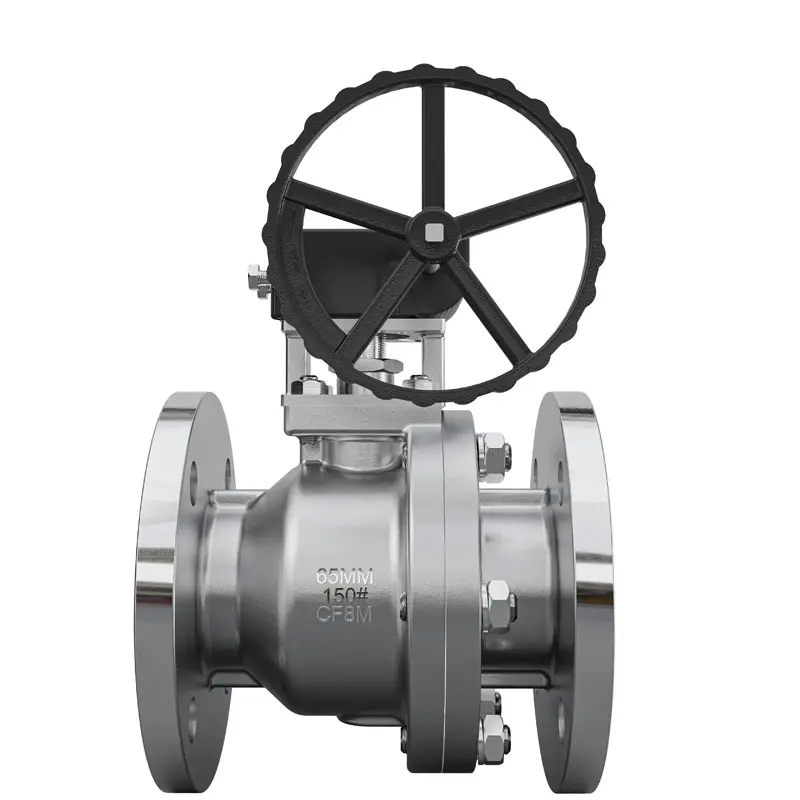

“aira” Offers Manual & Automation Operated Two Piece Design Floating Ball Valve, Engineered For Multiple On/ Off Operations In The Down Stream For Use In Oil & Gas Industry.
| Specification | Details |
|---|---|
| Design & Manufacturer | ASME B 16.34 / BS EN ISO 17292 |
| Valve Face To Face Dimension | ASME B 16.10 / BS EN ISO 17292 |
| Inspection & Testing | API 598 / ISO – 5208 / BS EN 12266-1 |
| Size Range | 1/2″ to 12″ Flanged 150# / 300# |
| Fugitive Emissions | ISO 15848-1 A 2017 |
| Ball Type | CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M |
| Ball Material | Solid for 300# & Hollow for 150# |
| Stem Material | AISI 410, SS 304, SS 316, SS 304L, SS 316L, Duplex 2205, Duplex 2507, Monel |
| Certification | Design CE Approved, SIL3 Approved, IBR, Fire Safe |
| Leakage Class | ISO 5208 Class VI / FCI – 70-2 / ASME, ANSI 16,16.104 |
| End Connection | ASME B 16.5 CLASS 150# / 300# |
| Temperature Range | Up to 180°C |
| Pressure Class | 150# , 300# |
| Media | Air / Water / Oil & Gas |
| Body Material | CAST IRON (CI), DUCTILE IRON (DI), S.G IRON (SGI), WCB, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONEL |
| Seat Material | PTFE, RPTFE, CFT, GFT, MODIFIED PTFE, AIRA-250, NYLON, DEVLON, PEEK, D-PLASTIC |
| Flange Drilling | ASME B 16.5 Class 150# / 300# |
