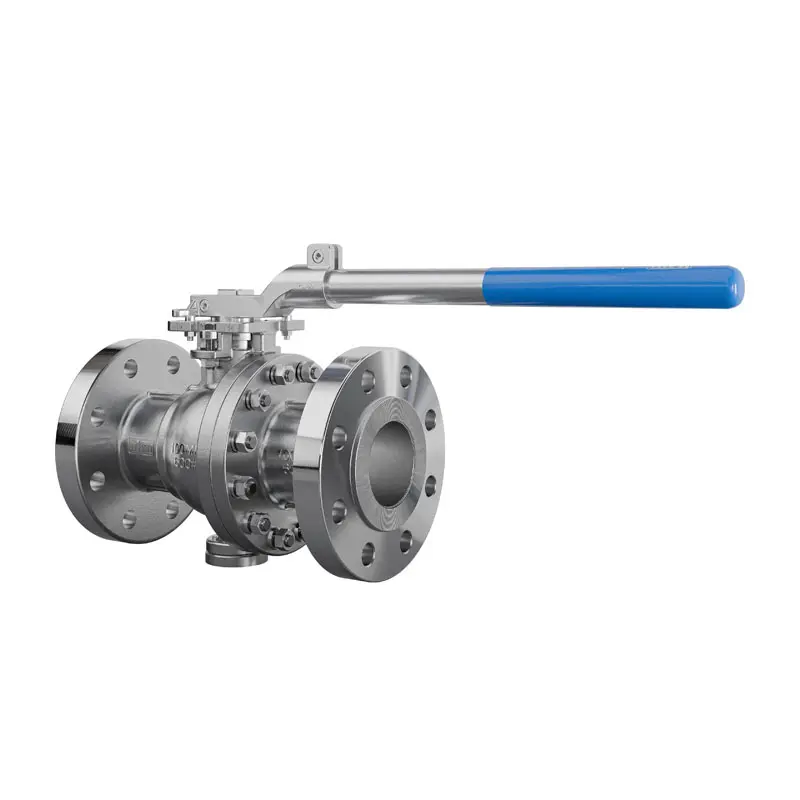

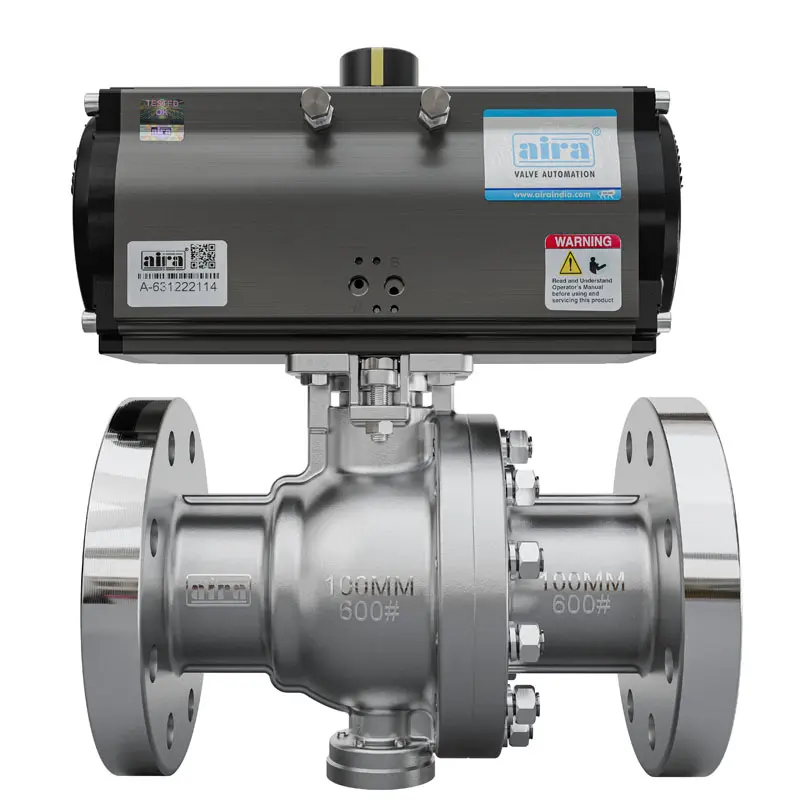

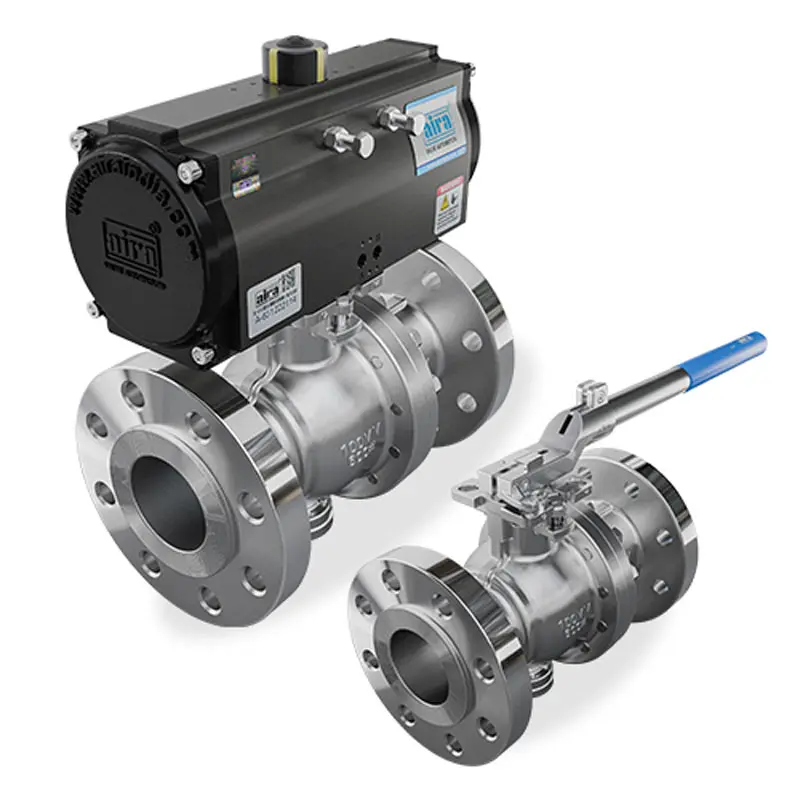

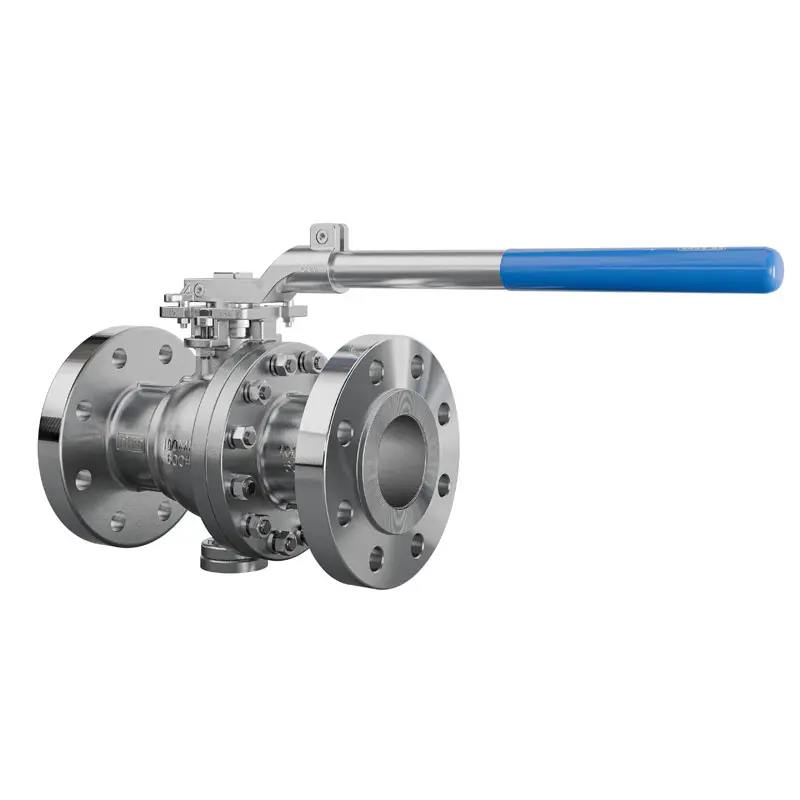

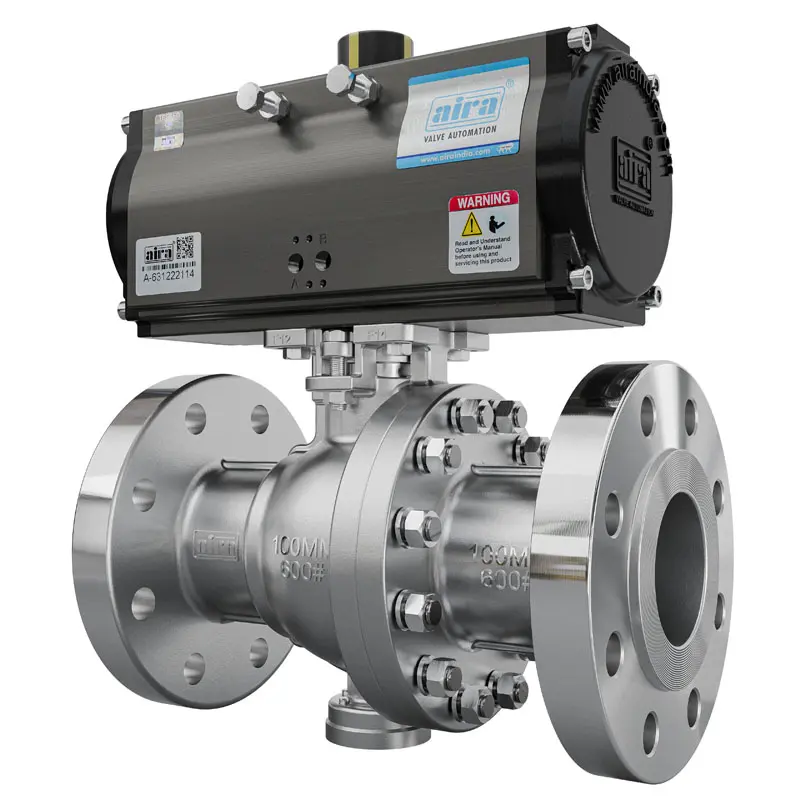

2 Piece Flanged End Ball Valve 600#

Aira Euro Automation is a prominent 2 Way Floating Solid Ball valve manufacturer in India. This 2 Piece Designed ball valve has CFT Seals and Flanged end connection 600#

Specification	Details
Size Range	1/2″ To 2″ Floating, 2.1/2” To 6” Trunnion
Temperature Range	For CFT & GFT Up to 200°C, For PEEK Up to 250°C
Working Pressure	As Per 600#

“aira” Offers Two Piece Design Valve, Engineered For Multiple On/ Off Operations In The Down Stream.

Specification	Details
Design & Manufacturer	ASME B 16.34/ BS EN ISO 17292
Valve Face To Face Dimension	ASME B 16.10/ BS EN ISO 17292
Inspection & Testing	API 598/ ISO – 5208/ BS EN 12266 – 1
Size Range	1/2″ To 2″ Floating, 2.1/2” To 6” Trunnion
Temperature Range	-50°C To 300°C For Soft Seated Valves. Contact Works For Special Requirement (On Request)
Ball Material	CF8, CF8M, WCB + ENP, HAST ALLOY, DUPLEX, MONEL, CF3M
Ball Type	Hollow & Solid
Flange Drilling	ASME B 16.5 Class 150#/ 300#/ DIN/ JIS
Leakage Class	ISO 5208 Class VI/ FCI – 70-2/ ASME, ANSI B 16.16.104
End Connection	ASME B 16.5 Class 600
Pressure Class	600#
Media	Air/ Water/ Oil & Gas Etc…
Body Material	DUCTILE IRON (DI), S.G IRON (SGI), WCB, CF8, CF8M, CF3M, SS 304L, DUPLEX, HAST ALLOY, MONEL
Stem Material	AISI 410, AISI 304, AISI 316, AISI 304L, AISI 316L, Duplex 2205, Duplex 2507, Monel
Seat Material	PTFE, RPTFE, CFT, GFT, MODIFIED PTFE, AIRA-250, NYLON, DEVLON, PEEK
Certification	Design CE Approved, SIL3 Approved, POD

Categories: 2 Piece Ball Valves, Ball Valves

Features & Benefits

Fully Compliant To ASME B16.34 & API 608, ISO 5211 Mounting Pad Bolt Pattern, Slot Vented Ball For Thermal Expansion, Anti Static Grounded Ball & Stem, Blow-Out Proof Stem Design, Ring Joint , Tonge & Grove Joint Flange Available, Also Manufacture Special Grade MOC Like Supen Duplex,Hast Alloy Etc, Ball Seal: RPTFE, TFM, PEEK.
