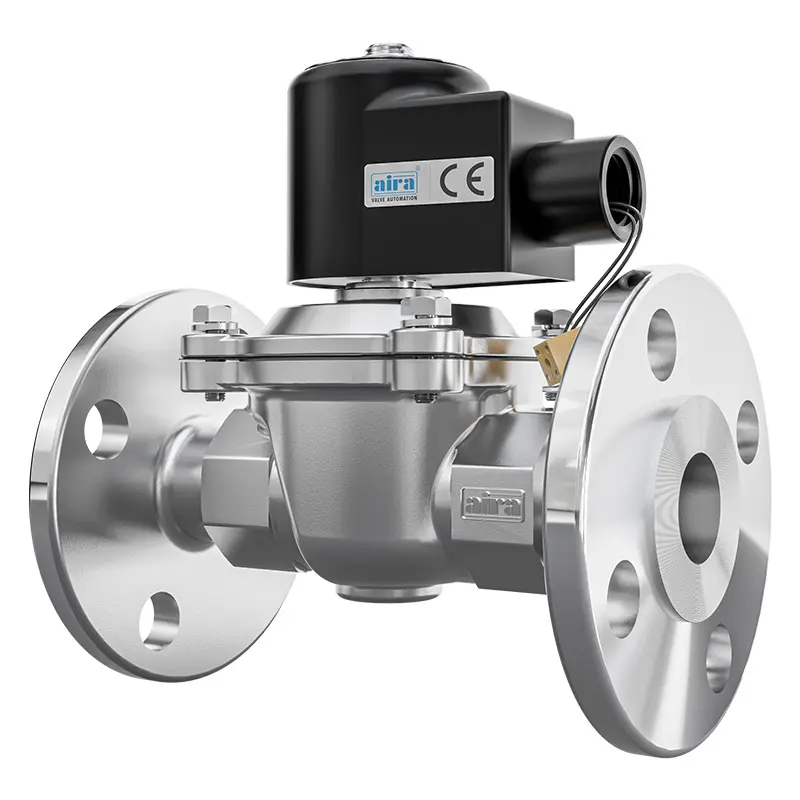

2-2 Way Semi Lift Diaphragm Flanged Low Pressure Solenoid Valve

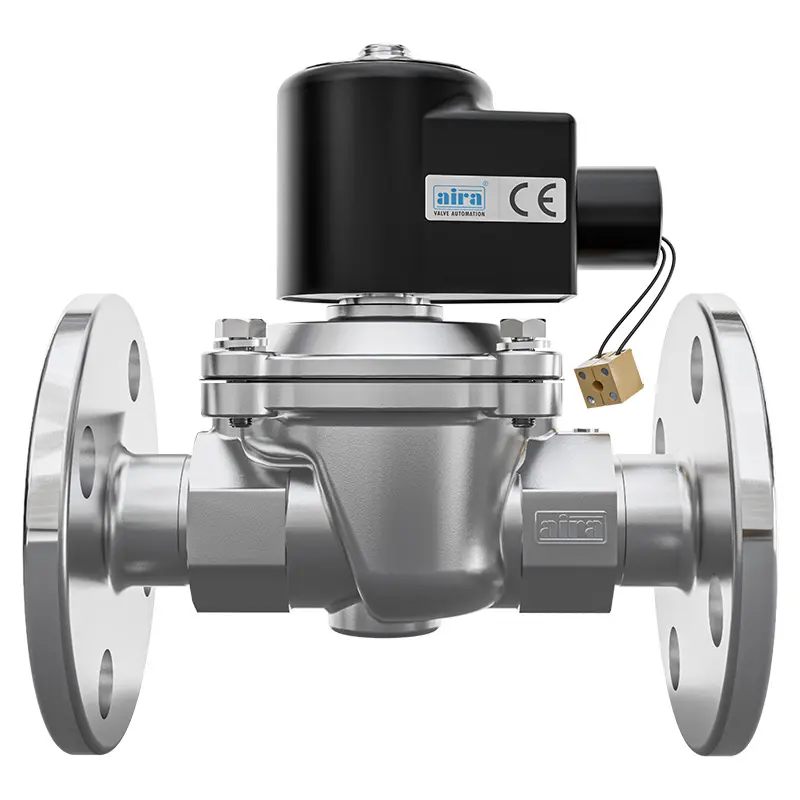

2-2 Way Semi Lift Diaphragm Flanged Low Pressure Solenoid Valve - Image 2

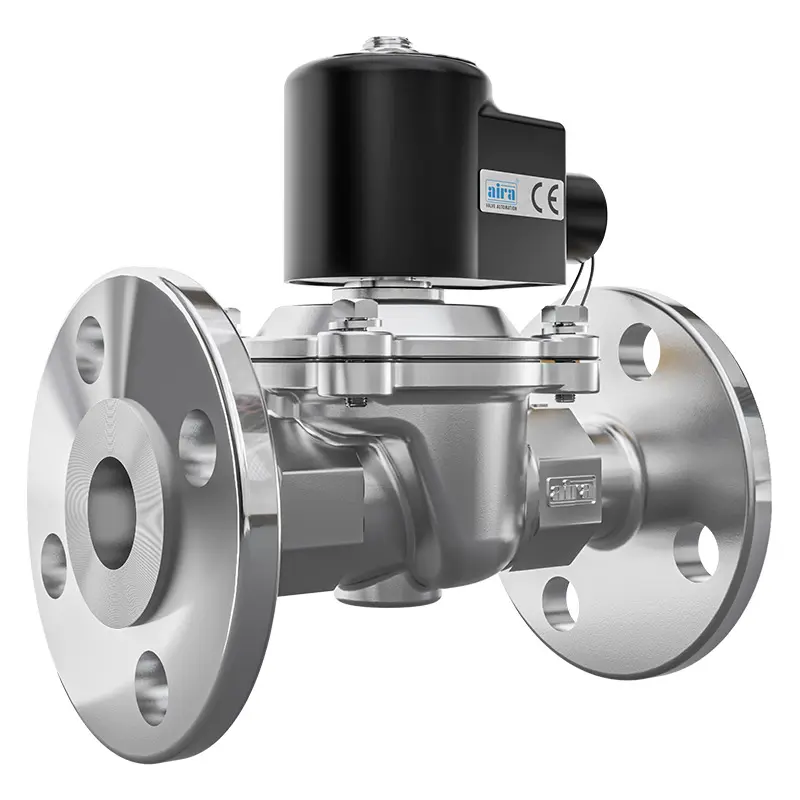

2-2 Way Semi Lift Diaphragm Flanged Low Pressure Solenoid Valve - Image 3
,

2-2 Way Semi Lift Diaphragm Flanged Low Pressure Solenoid Valve

Aira Euro Automation is a well known 2/2 Way Semi Lift Diaphragm Valve manufacturer, supplier & exporter in India. We have wide range of Solenoid Valves to fulfill your all kind of requirements.

Specification Details
Size Range 3/8″ To 4″ Flanged End
Temperature Range 85°C Max. (High Temperature On Request)
Working Pressure 0 To 5 BAR

“aira” Offers 2/2 way semi Lift, high performance diaphragm type solenoid Valves, for high volume and low pressure application in air, gas, water, vacuum, light oil, corrosive fluids. available in normally close and normally open design.

Specification & Standard

Specification Details
End Connection Flanged 150#
Size Range 3/8″ to 4″ Flanged End
Temperature Range 85°C Max. (High Temperature On Request)
Pressure Class 0 to 5 BAR
Body Style Flameproof 150#
Media Auto Clave, Vacuum Plants, Pump Seal Water, Low Pressure Water
Body Material CF8, CF3M, CF8M
Seat Material NBR, Viton, Hi-Netra
Certification CE
Categories: ,

Features & Benefits

1 – 2/2 Way Configuration: Provides reliable on/off control with a two-port design.

2 – Normally Closed/Normally Open Options: Available in both normally closed (NC) and normally open (NO) configurations for versatile automation needs.

3 – Flanged Connections: Features flanged fittings for robust and secure installation, ideal for high-pressure applications.

4 – Automation Ready: Electrically actuated for precise, automated control in various systems.

5 – Durable Construction: Made from high-quality materials such as stainless steel or brass for long-term reliability and resistance to corrosion.

6 – Compact and Robust: Designed to fit in demanding environments while maintaining high performance.

7 – Versatile Fluid Compatibility: Handles a wide range of fluids, including air, water, and chemicals.

8 – Low Maintenance: Requires minimal upkeep, reducing operational costs and downtime.

9 – Fast and Reliable Actuation: Provides quick switching capabilities for efficient and effective system operation.

Dimension Table

Size Range

3/8" To 4" Flanged End
Temperature Range

85°C Max. (High Temperature On Request)
Working Pressure

0 To 5 BAR
