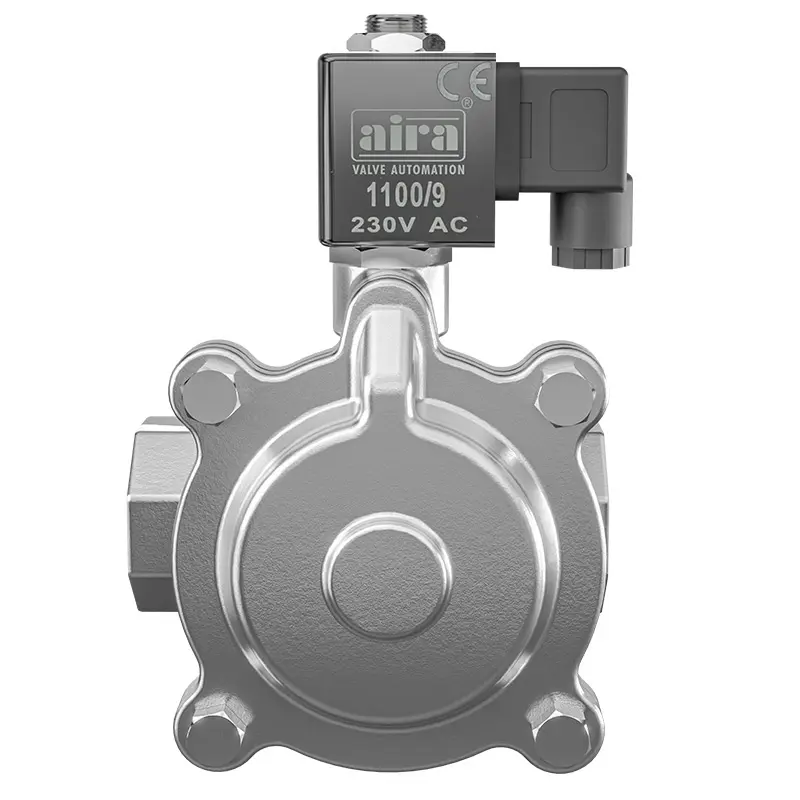

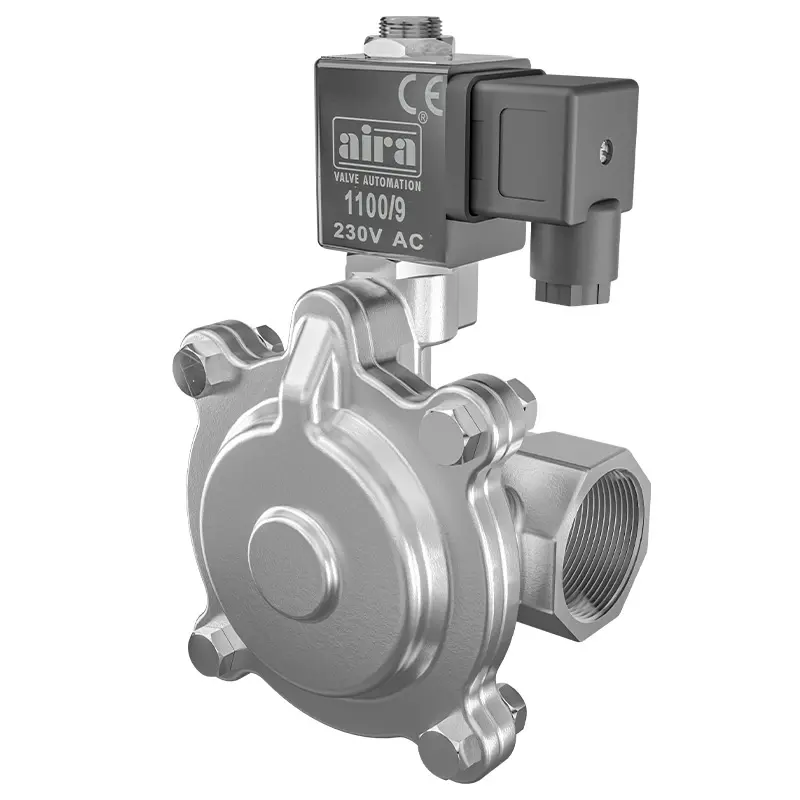

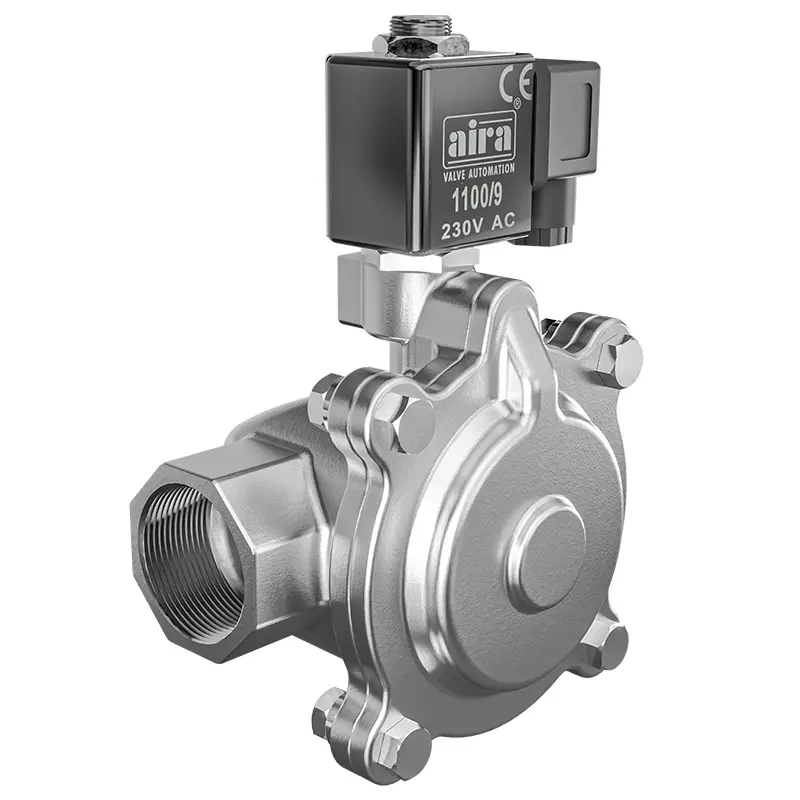

2-2 Way Pilot Operated Diaphragm Type Screwed Solenoid Valve
2-2 Way Pilot Operated Diaphragm Type Screwed Solenoid Valve - Image 2
2-2 Way Pilot Operated Diaphragm Type Screwed Solenoid Valve - Image 3
,

2-2 Way Pilot Operated Diaphragm Type Screwed Solenoid Valve

We are a leading manufacturer and supplier of 2/2 Way Pilot Operated Diaphragm Type Solenoid Valves in India, offering high-quality, reliable, and efficient solutions.

Specification Details
End Connection Flanged End 150#
Size Range 1/2″ To 6″
Size Range 1/2″ To 4″
Temperature Range Up to 120°C
Working Pressure -0.7 To 9 Bar

“aira” Offers HIGH FLOW Diaphragm type solenoid valves, are specially engineered in the construction of Investment Cast CF8 / CF8M / CF3M body for multiple and long lasting operations. valves for the inflammable media / environment / Flameproof / Explosion Proof solenoid coil are available in such application.

Specification & Standard

Specification Details
Size Range 1/2″ To 4″
End Connection Screwed End
Temperature Range Up to 120°C
Body Material CF8, CF8M, CF3M
Media Semi Steam, Steam
Certification CE
Categories: ,

Features & Benefits

1 – 2/2 Way Design: Controls fluid flow with a two-port configuration, allowing for on/off operation.

2 – Screwed Connections: Features threaded fittings for easy and secure installation.

3 – Normally Closed/Normally Open Options: Available in both normally closed (NC) and normally open (NO) configurations to suit different automation needs.

4 – Automation Ready: Designed for automated systems, enabling precise and reliable control.

5 – Durable Construction: Made from high-quality materials for long-term reliability and resistance to wear and corrosion.

6 – Compact and Space-Efficient: Suitable for installations with space constraints while maintaining high performance.

7 – Versatile Fluid Handling: Compatible with a wide range of fluids including air, water, and chemicals.

8 – Low Maintenance: Built for minimal upkeep, reducing maintenance needs and operational costs.

9 – Quick and Reliable Switching: Ensures efficient operation with fast response times.

Size Range

1/2" To 4"
Temperature Range

Upto 120°C
Working Pressure

-0.7 To 9 Bar
