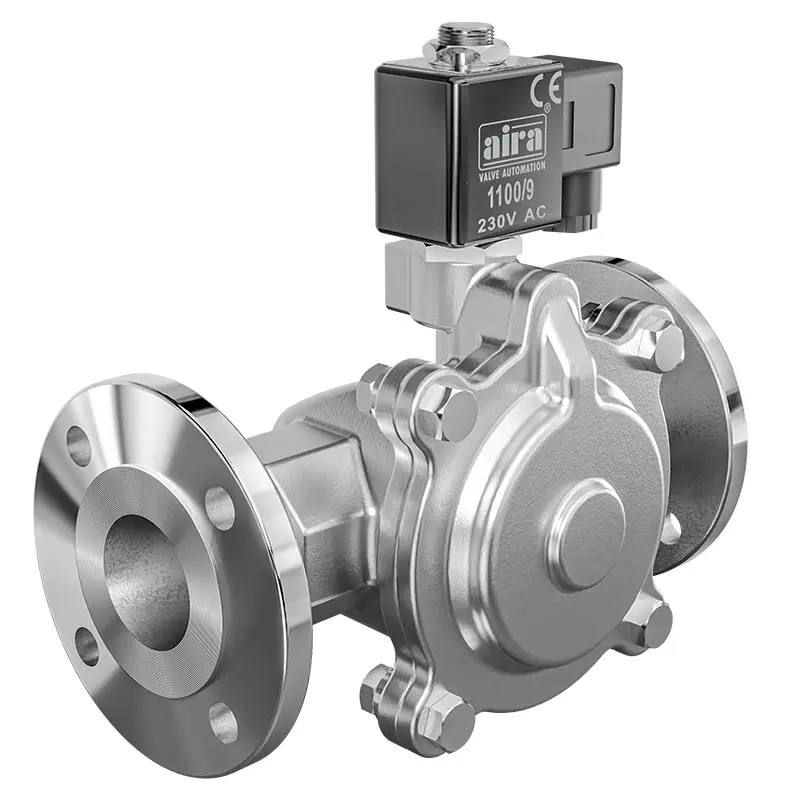

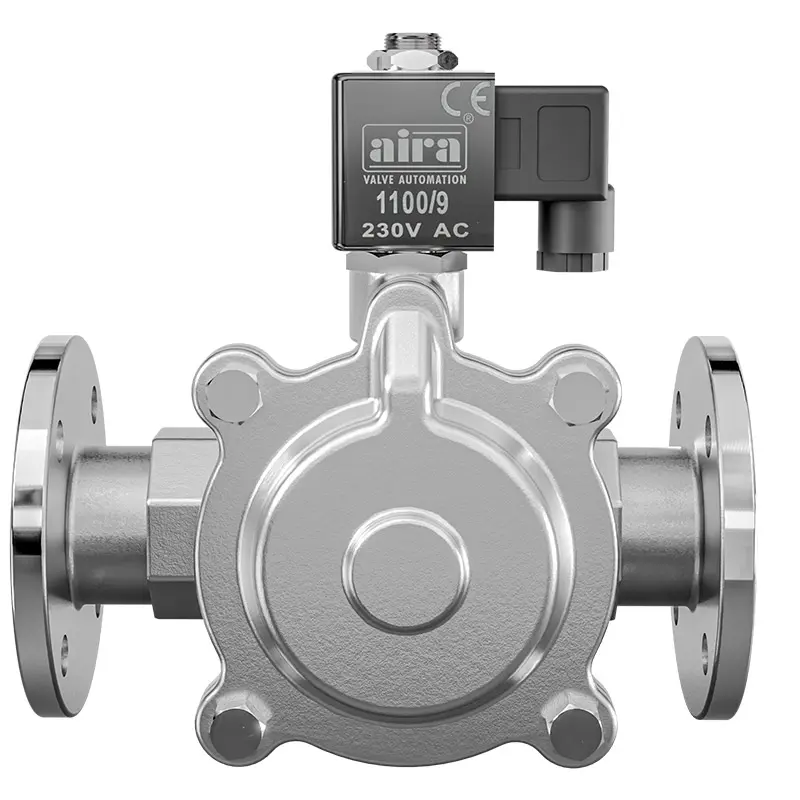

We are a leading manufacturer and supplier in India of 2/2 Way Pilot Operated Diaphragm Type Flanged Solenoid Valves, offering high-quality and reliable solutions.
| Specification | Details |
|---|---|
| Size Range | 1/2″ To 6″ |
| Temperature Range | Up to 85°C |
| Working Pressure | -0.7 To 12 Bar, -1 To 12 Bar |
“aira” Offers reliable on/off control with flanged connections, available in normally closed or normally open configurations for robust and efficient automation.
| Specification | Details |
|---|---|
| End Connection | Flanged End 150# |
| Size Range | 1/2″ To 6″ |
| Temperature Range | Up to 85°C |
| Pressure Class | -0.7 To 12 Bar, -1 To 12 Bar |
| Media | Air, Water, Oil, & Gas |
| Body Material | CF8 |
| Certification | CE |
1 – 2/2 Way Design: Provides on/off control with a two-port configuration for managing fluid flow.
2 – Normally Closed/Normally Open: Available in both NC and NO configurations to suit various automation requirements.
3 – Flanged Connections: Features flanged fittings for secure and robust installation, ideal for high-pressure and demanding applications.
4 – Automation Ready: Electrically actuated for precise and reliable control in automated systems.
5 – Durable Construction: Made from high-quality materials like stainless steel or brass, ensuring long-term durability and resistance to corrosion.
6 – Compact and Efficient: Designed to fit in constrained spaces while maintaining high performance.
7 – Versatile Fluid Compatibility: Handles a wide range of fluids, including air, water, and chemicals.
8 – Low Maintenance: Engineered for minimal upkeep, reducing maintenance needs and operational costs.
| Size Range | 1/2" To 6" |
|---|---|
| Temperature Range | Upto 85°C |
| Working Pressure | -0.7 To 12 Bar, -1 To 12 Bar |
Aira Euro Automation is a leading Dust Collector Pulse Valve manufacturer in India. This 2/2 Way Angle Type valve designed for easy to use, we also make it for high temperature on request.
| Specification | Details |
|---|---|
| Size Range | 1/2″ To 3″ Screwed |
| Temperature Range | Rated For 80°C Max. (For High Temperature up to 125°C Viton Diaphragm With Viton Seat Can Be Provided) |
| Working Pressure | 0.6 To 8.5 Bar Max |
Leading manufacturer and supplier of 2/2 Way High Temp Flanged Solenoid Valve in India. Durable, high-performance valves for various industrial applications.
| Specification | Details |
|---|---|
| Size Range | 3/8″ To 4″ Flanged 150# |
| Temperature Range | 180°C Max. (High Temperature On Request) |
| Working Pressure | 0 To 5 Bar Max. (0 to 6 Bar On Request) |

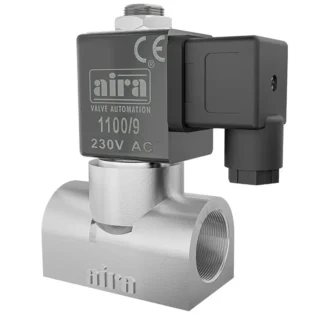

Aira Euro Automation is a leading 2/2 Way Direct Acting Solenoid Valve Manufacturer and Supplier in Ahmedabad, India.
| Specification | Details |
|---|---|
| Size Range | 1/4″, 3/8″ To 1/2″ Screwed |
| Temperature Range | -5°C To 85°C (High Temperature On Request) |
| Working Pressure | Up to 20 Bar |
We are a leading 2/2 way High Temperature Solenoid Valve Manufacturer, exporter & supplier. We have a wide range of solenoid valves with multiple features & specs.
| Specification | Details |
|---|---|
| Size Range | 1/4″ To 4″ Flanged 150# |
| Temperature Range | Up to 180°C |
| Working Pressure | 2 To 12 Kg |
