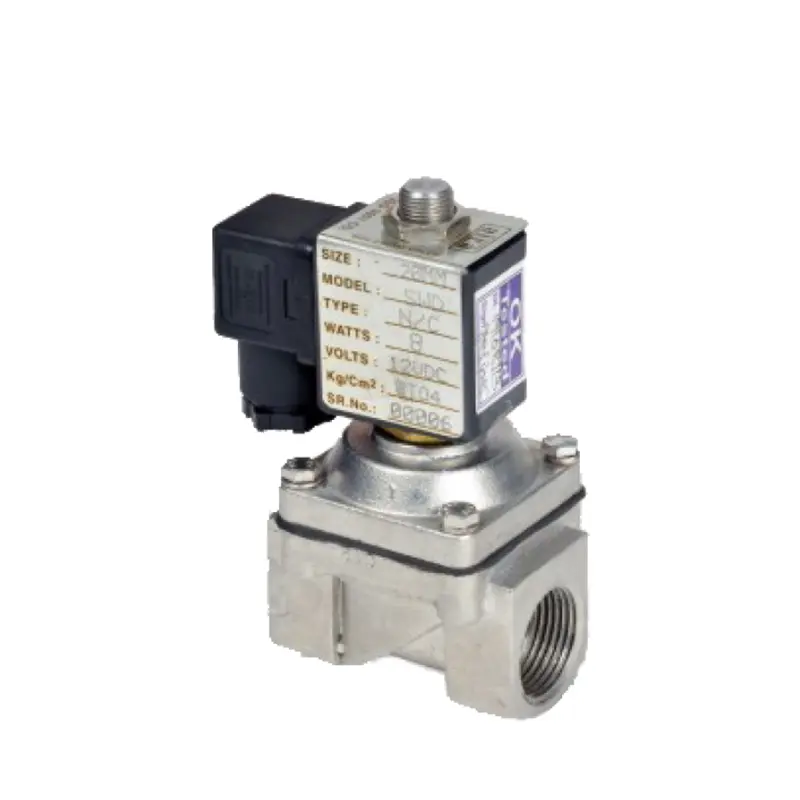

2-2 Way Pilot Diaphragm Screwed Solenoid Valve
,

2-2 Way Pilot Diaphragm Screwed Solenoid Valve

Aira Euro Automation is a leading Pilot Diaphragm Solenoid Valve manufacturer in India. This 2/2 Way Pilot Diaphragm Solenoid Valve designed to a Normally Closed position.

Specification Details
Size Range 3/4″
Temperature Range Up to 85°C
Working Pressure 0 to 5 Bar

“aira” Offers 2/2 Way Pilot Diaphragm Solenoid Valve is a compact, electrically controlled valve that uses a solenoid to actuate a diaphragm mechanism, opening or closing two pathways. It features a pilot-controlled design for precise flow regulation and is commonly used in fluid control systems for applications requiring quick and reliable switching.

Specification & Standard

Specification Details
Design Normally Close
Body CF8 / CF8M
Size Range 3/4″
Diaphragm NBR
Ends Screwed End (BSP)
Coil Voltage 12V, 24V, 48V, 110V, 230V, AC/DC
Temperature Up to 85°C
Pressure 0 to 5 Bar
Coil Insulation “F” Class
Media Air, Gas, Water, Steam & Hot Water
Categories: ,

Features & Benefits

1 – Space – Saving And Easy To Install In Various Applications
2 – Utilizes A Small Pilot Solenoid To Control The Larger Main Valve, Providing Precise Control
3 – Employs A Diaphragm To Seal The Valve, Ensuring Reliable Operation And Minimal Leakage
4 – Made With High – Quality Materials To Ensure Long – Lasting Performance
5 – Suitable For A Wide Range Of Fluids And Gases In Various Industrial Processes

Size Range

3/4"
Temperature Range

upto 85°C
Working Pressure

0 To 5 Bar
