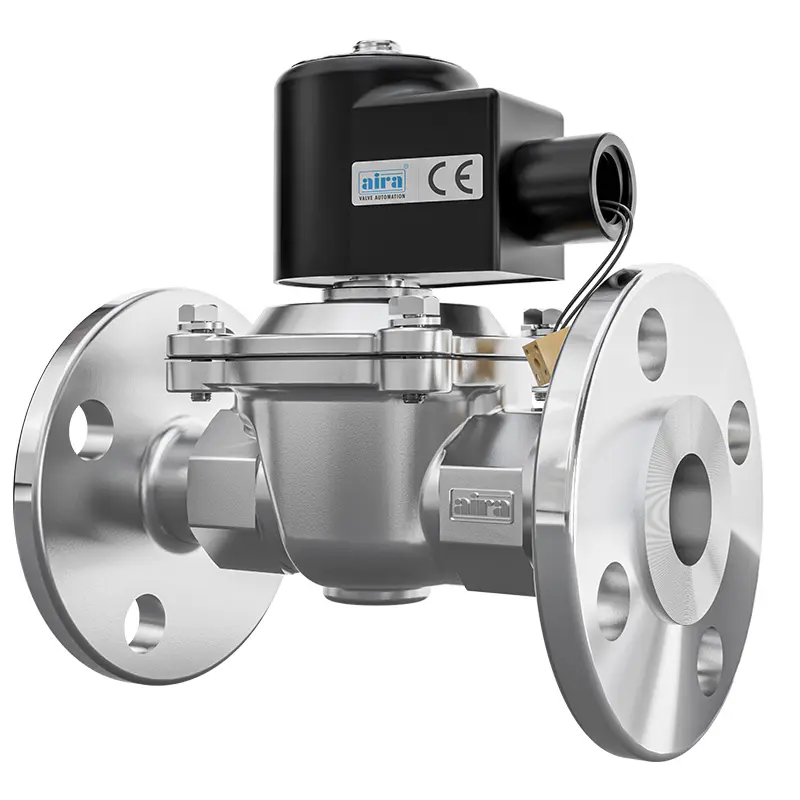

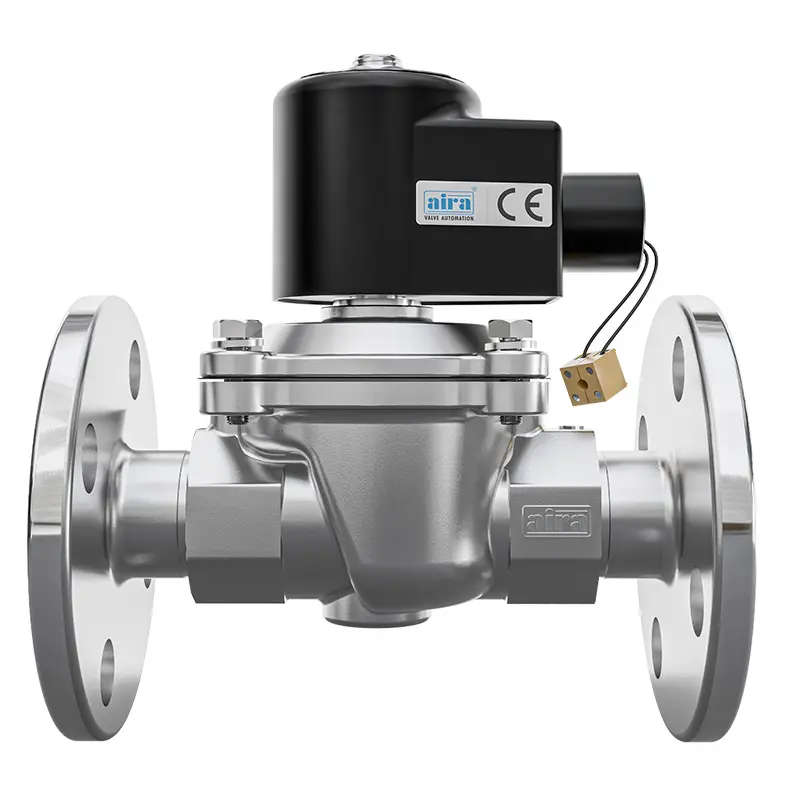

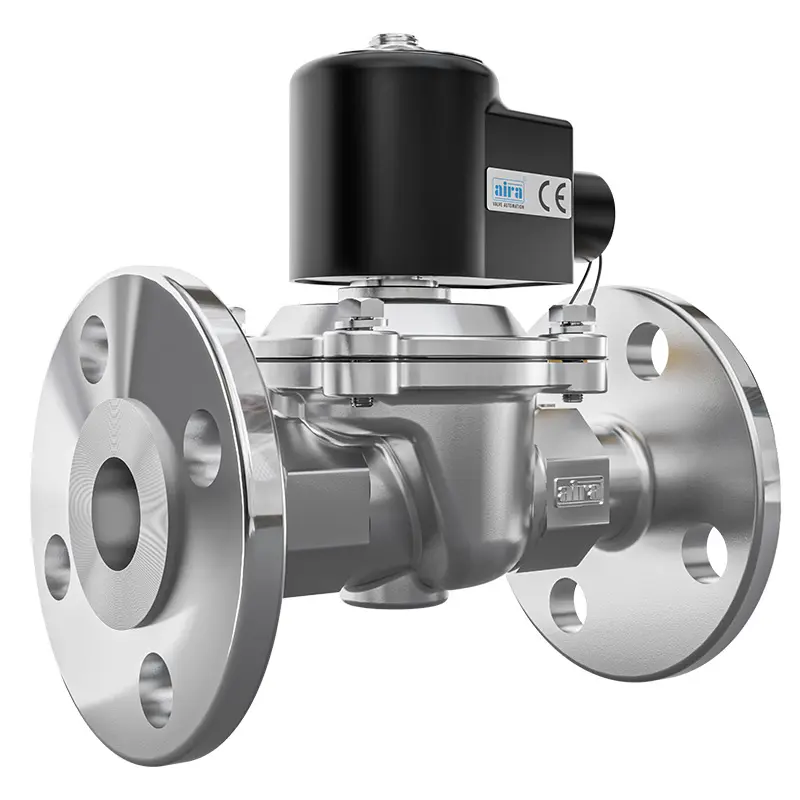

2-2 Way High Temperature Flanged Solenoid Valve

2-2 Way High Temperature Flanged Solenoid Valve

Leading manufacturer and supplier of 2/2 Way High Temp Flanged Solenoid Valve in India. Durable, high-performance valves for various industrial applications.

Specification	Details
Size Range	3/8″ To 4″ Flanged 150#
Temperature Range	180°C Max. (High Temperature On Request)
Working Pressure	0 To 5 Bar Max. (0 to 6 Bar On Request)

“aira” Offers 2/2 way semi Lift, high performance diaphragm type solenoid Valves, for high volume and low pressure application in air, gas, water, vacuum, light oil, corrosive fluids. available in normally close and normally open design.

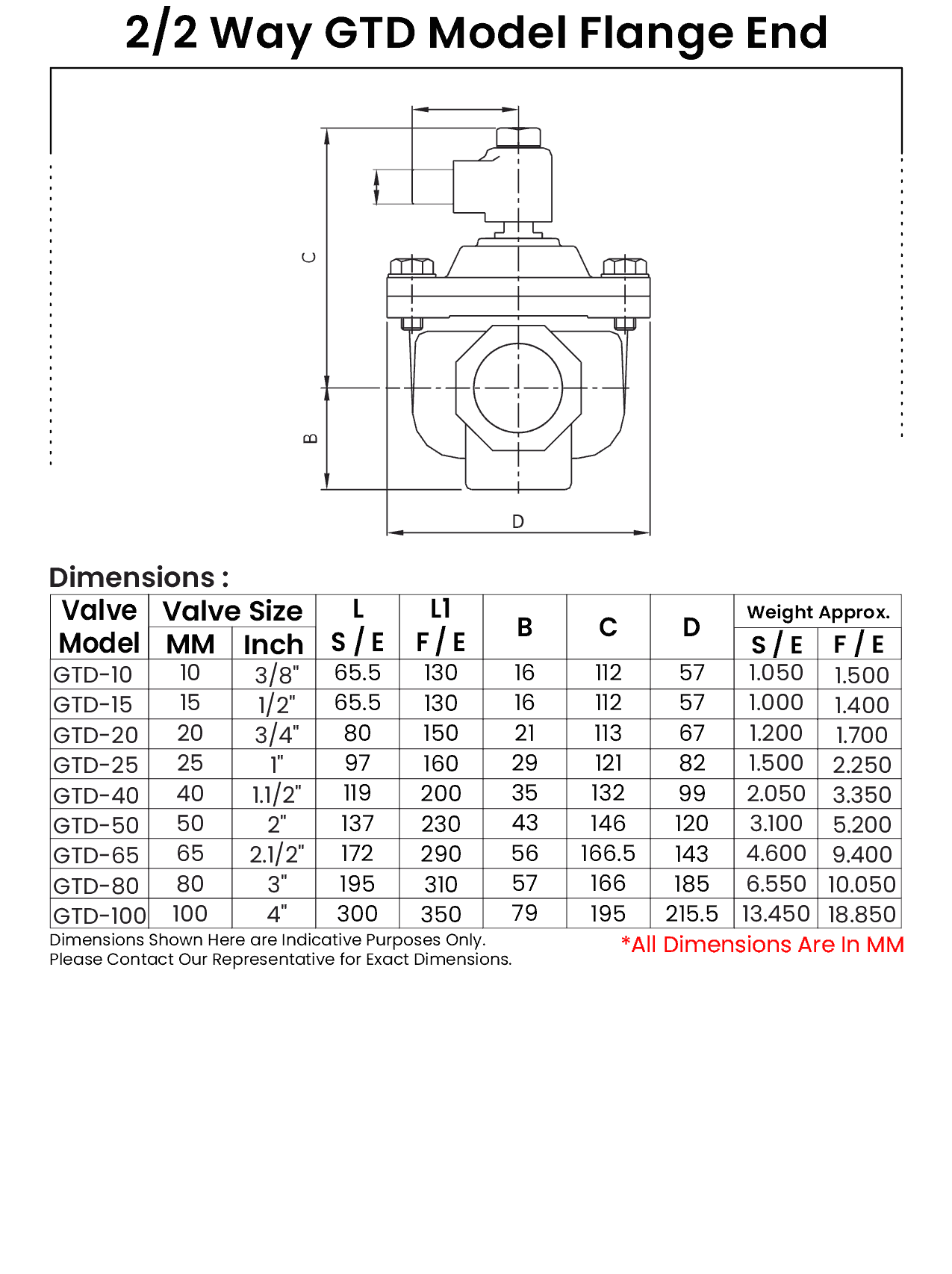

Specification & Standard

Specification	Details
Size Range	3/8″ To 4″ Flanged 150#
Temperature Range	180°C Max. (High Temperature On Request)
Pressure Class	0 To 5 Bar Max. (0 to 6 Bar On Request)
End Connection	Flanged 150#
Flange Drilling	As Per 150#
Media	Oil Plants, Vacuum Plant, Pump Seal, Water
Body Material	CF8, CF3M, CF8M
Seat Material	PTFE, Viton
Certification	CE
Body Style	Flameproof Normally Open And Close

Categories: Low Pressure, Solenoid Valves

Features & Benefits

1 – 2/2 Way Design: Offers efficient on/off control with a two-port configuration for managing fluid flow.

2 – Normally Closed/Normally Open Options: Available in both normally closed (NC) and normally open (NO) configurations to accommodate various automation needs.

3 – Flanged Connections: Features robust flanged fittings for secure and stable installation, especially suited for high-pressure applications.

4 – Automation Ready: Electrically actuated for precise and reliable automated control.

5 – Durable Construction: Constructed from high-quality materials such as stainless steel or brass, ensuring durability and resistance to corrosion and wear.

6 – Compact and Sturdy: Designed to fit in demanding environments while maintaining high performance.

7 – Versatile Fluid Compatibility: Capable of handling a broad range of fluids, including air, water, and chemicals.

8 – Low Maintenance: Requires minimal upkeep, reducing maintenance costs and downtime.

9 – Fast and Reliable Actuation: Provides quick and consistent switching for efficient system operation.
