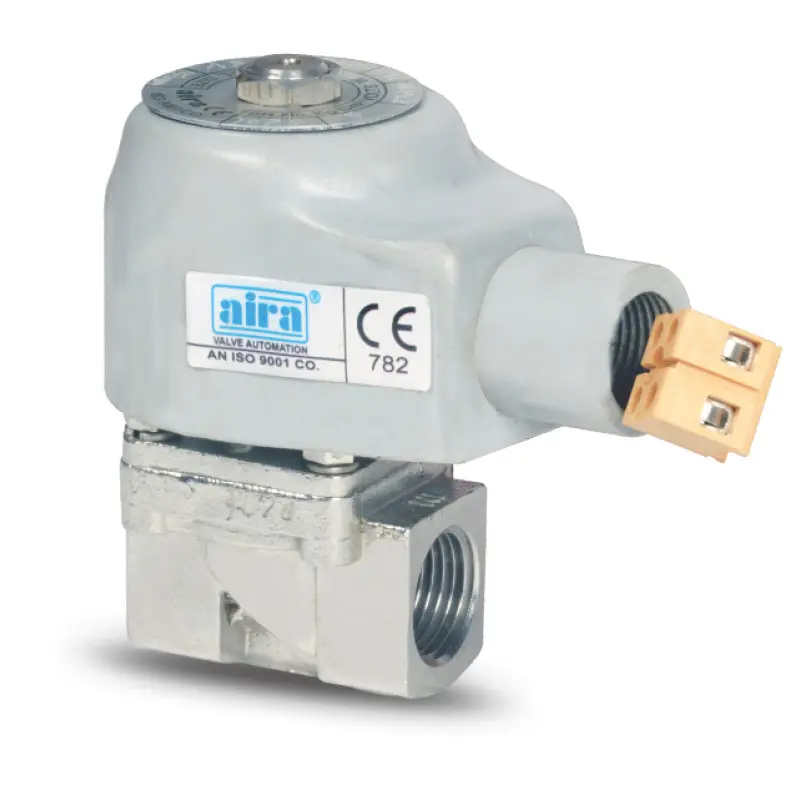

2-2 Way Direct Acting Pilot Solenoid Valve
,

2-2 Way Direct Acting Pilot Solenoid Valve

Aira Euro Automation is a prominent Direct Acting Solenoid Valve manufacturer in India. This 2/2 Way Pilot Direct Acting Solenoid Valve available with a screwed end connection.

Specification Details
Size Range 1/2″ To 3/4″ Screwed
Temperature Range Up to 150°C for Steam, 95°C for Hot Water
Working Pressure 0 To 9 Bar

“aira” Offers For Steam and hot water application upto 10 bar pressure NORMALLY CLOSED, ENERGISED TO OPEN

Specification & Standard

Specification Details
Size Range 1/2″ To 3/4″ Screwed
Temperature Up to 150°C for Steam, 95°C for Hot Water
Pressure Class 0 To 9 Bar
End Connection Screwed End (BSP)
Body Material CF8 / CF8M
Categories: ,

Features & Benefits

1 – Direct Acting Mechanism: Operates Directly With The   Solenoid, Providing Quick And Responsive Control Without the need for a Pilot Valve

2 – 2/2 Way Configuration: Features two ports and two positions, allowing for straightforward on/off control of fluid flow

3 – Durable Construction: Made with robust materials to ensure reliable performance and longevity in various operating conditions

4 – Compact Design: Space-efficient and easy to install in tight or constrained spaces

5 – Versatility: Suitable for a range of applications involving gases and liquids, with compatibility across various industries

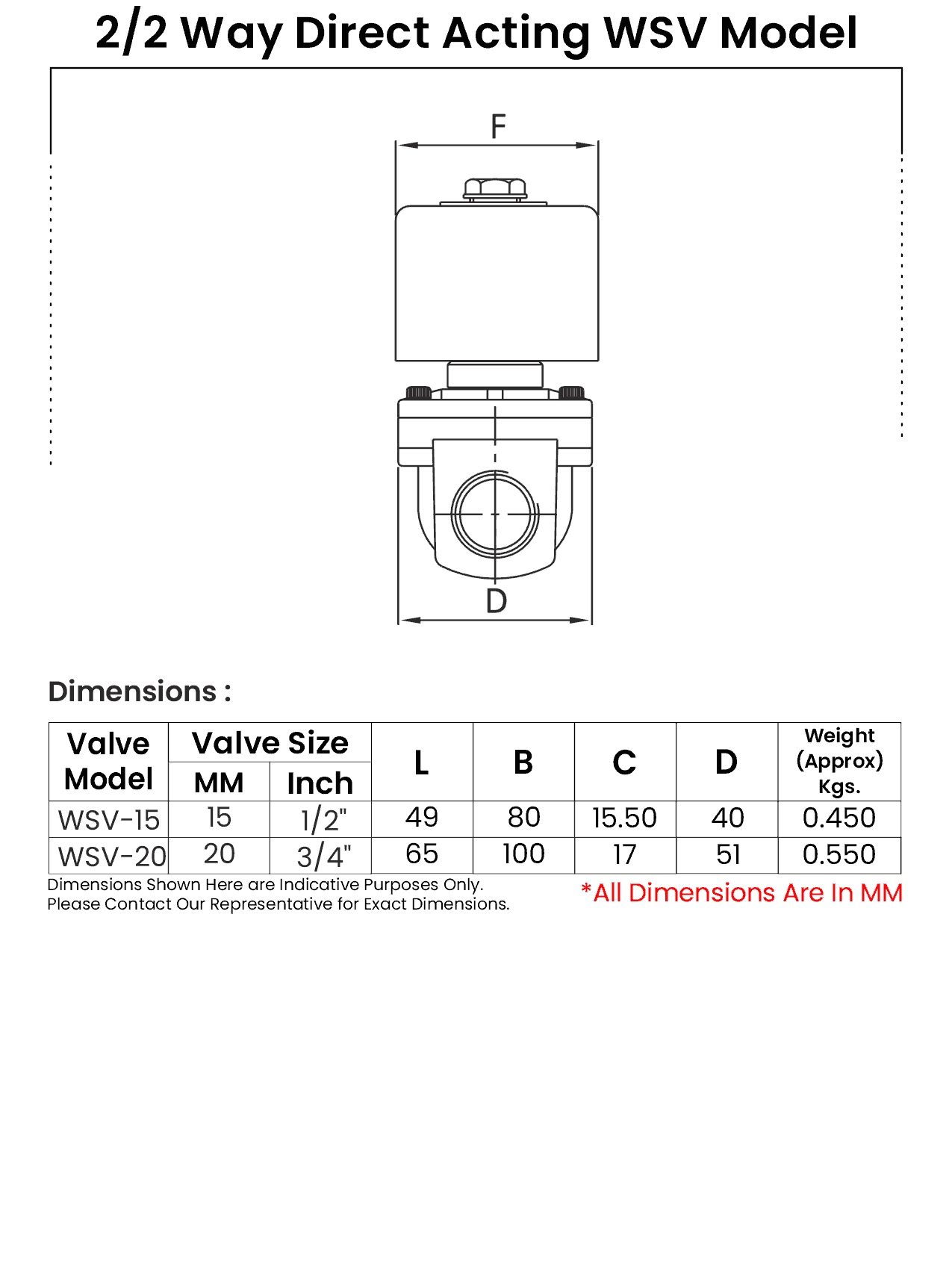

Dimension Table

Size Range

1/2" To 3/4" Screwed
Temperature Range

Upto 150°C for Steam, 95°C for Hot Water
Working Pressure

0 To 9 Bar
