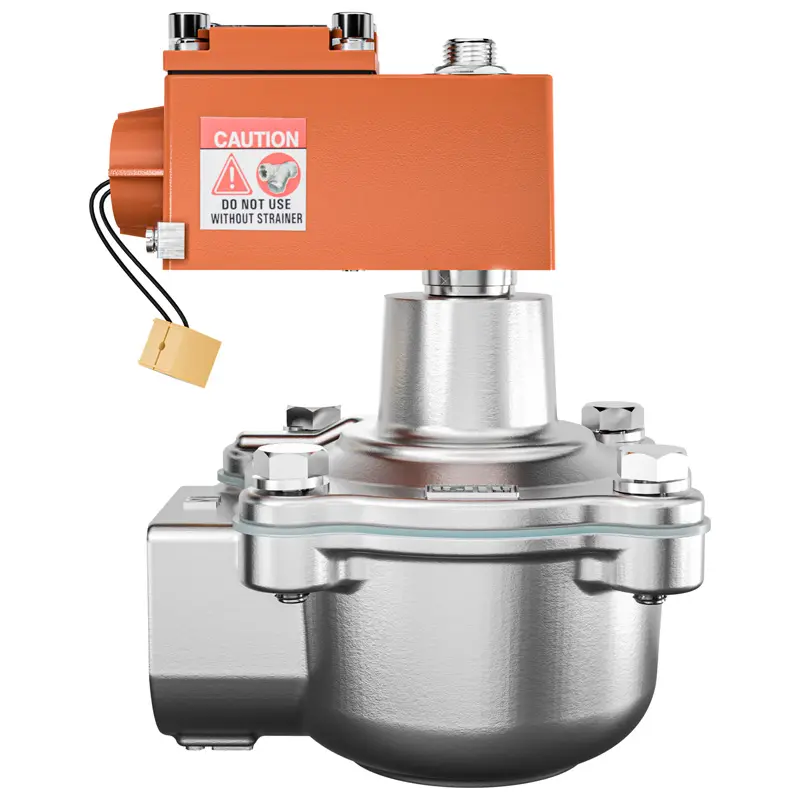

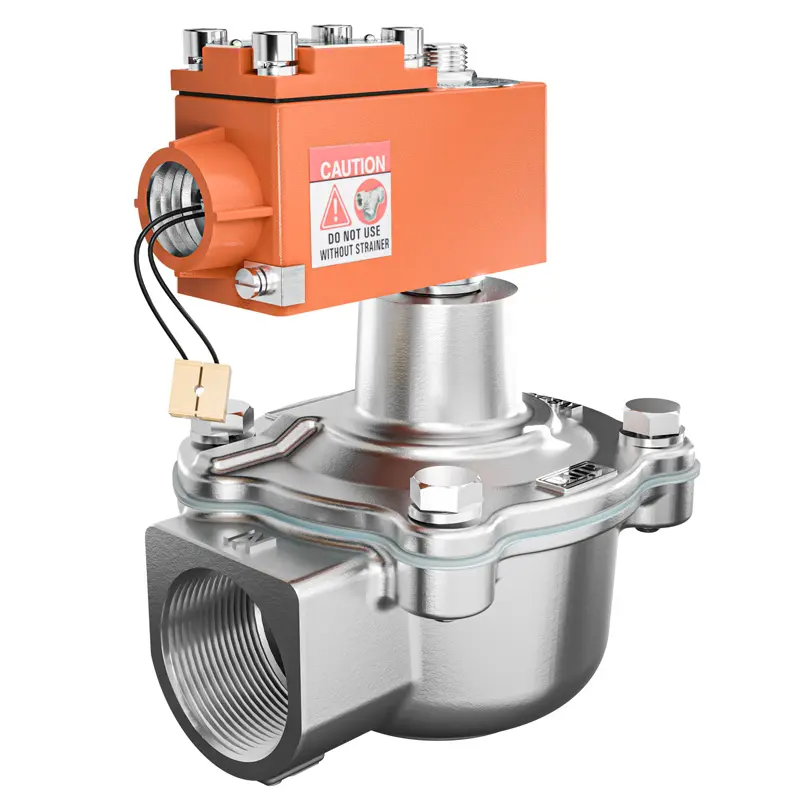

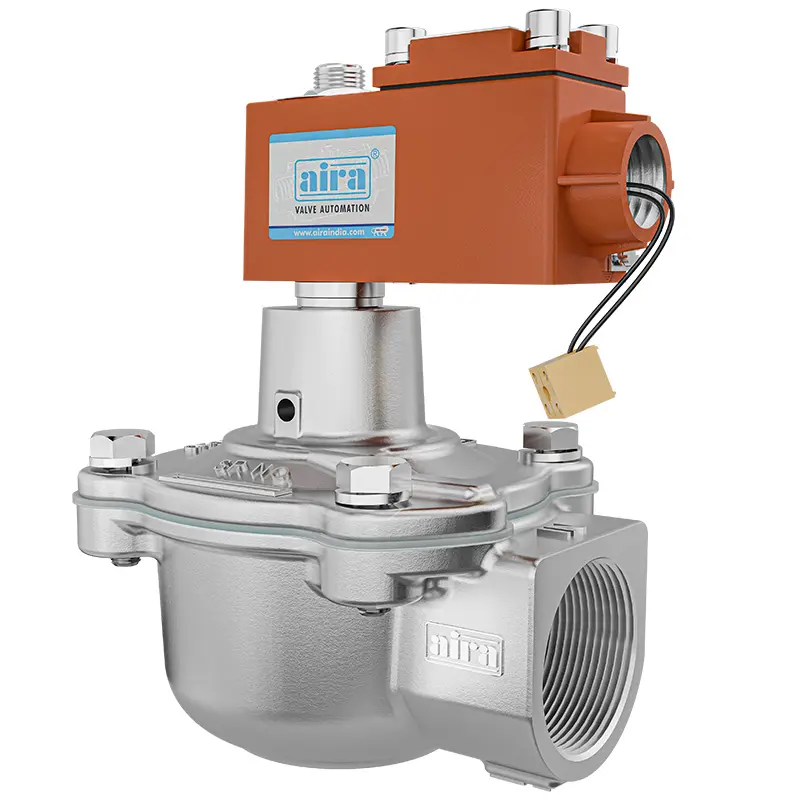

2-2 Way Angle type SS Dust Collector Pulse Valve
2-2 Way Angle type SS Dust Collector Pulse Valve - Image 2
2-2 Way Angle type SS Dust Collector Pulse Valve - Image 3
2-2 Way Angle type SS Dust Collector Pulse Valve - Image 4
,

2-2 Way Angle type SS Dust Collector Pulse Valve

Aira Euro Auto Automation is a prominent 2/2 Angle type Stainless Steel Dust Collector Pulse Valve manufacturer in India. We have large range of valves for your all needs.

Specification Details
Size Range 1″ Screwed
Temperature Range Rated for 80°C Max. (For High Temperature up to 125°C, Viton Diaphragm with Viton Seat Can Be Provided)
Working Pressure 0.6 to 8.5 Bar Max

aira” Stainless Steel Diaphragm Valve is designed for dust collector applications, especially for reverse pulse-jet filter cleaning of various filter types. It features a 90° inlet and outlet port, with a single diaphragm and threaded female gas connections. Ideal for aggressive environments prone to corrosion, it is suitable for chemical processes, off-shore refineries, nuclear environments, and also for pharmaceutical, food, and medical-grade applications.

Specification & Standard

Specification Details
Size Range 1″ Screwed
Temperature Range Rated For 80°C Max. (For High Temperature up to 125°C Viton Diaphragm With Viton Seat Can Be Provided)
Pressure Class 0.6 to 8.5 Bar Max
Media Chemical Process, Food And Grain, Off-Shot Plant
Body Material CF8, CF8M, CF3M
Seat Material PU
Certification CE
Categories: ,

Features & Benefits

1 – Designed to operate within a specific pressure range. The exact range depends on the model and its intended application.

2 – Features a solenoid coil that enables efficient and quick valve actuation.

3 – Ideal for applications where the valve needs to remain closed during normal operation and open only when the solenoid is energized. Common in automation, fluid control systems, HVAC, and other industrial processes.

4 – Typically meets industry standards and certifications to ensure quality, safety, and performance in various applications.



Dimension Table

Size Range

1" Screwed
Temperature Range

Rated For 80°C Max. ( For High Temperature upto 125°C Viton Diaphragm With Viton Seat Can Be Provide )
Working Pressure

0.6 To 8.5 Bar Max
