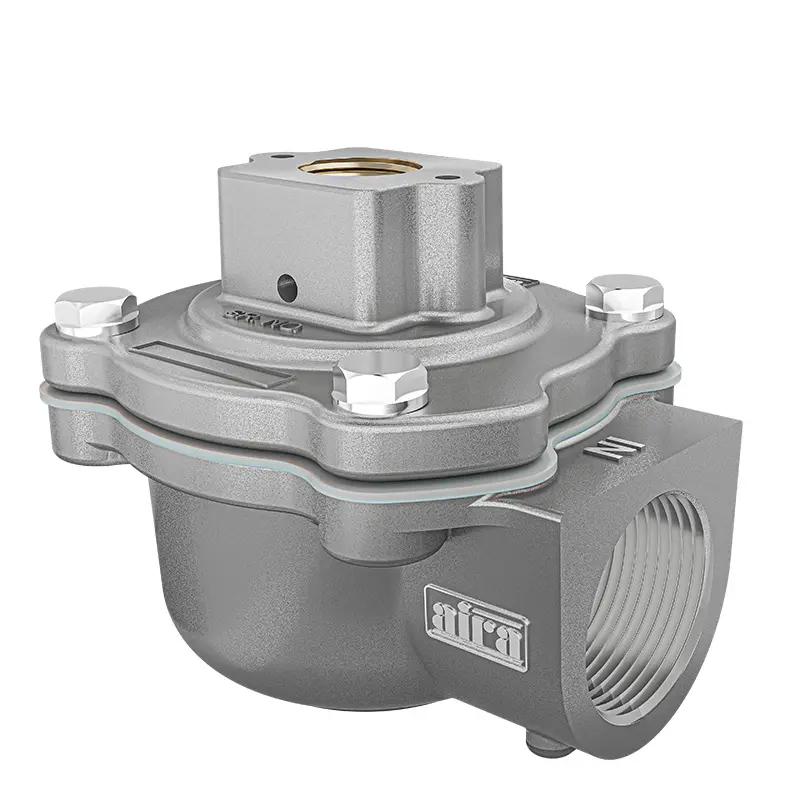

2-2 Way Aluminum Body Dust Collector Solenoid Valve


Aira Euro is your trusted manufacturer & supplier of 2/2 Way Aluminium Body Dust Collector Solenoid Valves in India. Durable, lightweight, and reliable.

Specification Details
Size Range 1/2″ To 3″ Screwed
Temperature Range Rated for 80°C max. (For high temperature up to 125°C, Viton diaphragm with Viton seat can be provided)
Working Pressure 0.6 To 10 Bar Max

“aira” Offers high performance diaphragm operated valve with threaded ports. Available with integral pilot or as remotely piloted valve. Outlet at 90° to inlet.

Specification & Standard

Specification Details
Size Range 1/2″ To 3″ Screwed
Temperature Range Rated for 80°C max. (For High Temperature up to 125°C Viton Diaphragm with Viton Seat Can Be Provided)
Pressure Class 0.6 to 10 Bar Max
Media Dust Collector Application, Ceramic Filter
Body Material Aluminum
Seat Material NBR
Certification CE
Disc Material As Per Standard

Features & Benefits

1 – Typically made from durable materials like brass, stainless steel, or aluminum to resist corrosion and wear.

2 – Operates effectively within a specified temperature range. This ensures reliable performance in different environmental conditions.

3 – Available in various voltages, typically AC or DC, to match different power supply needs.

4—It may include fail-safe mechanisms to ensure safe operation in case of power failure or other issues. Features might include manual override options or spring return mechanisms.

5 – Often meets industry standards and certifications for quality, safety, and performance.

Dimension Table

Size Range

1/2" To 3" Screwed

Temperature Range

Rated For 80°C max. ( For High Temperature upto 125°C Viton Diaphragm With Viton Seat Can Be Provide )

Working Pressure

0.6 To 10 Bar Max
